Team Electronic UHF-DualTalk Operation Manual

Pmr + lpd radio
Hide thumbs Also See for UHF-DualTalk:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
Enlarged version

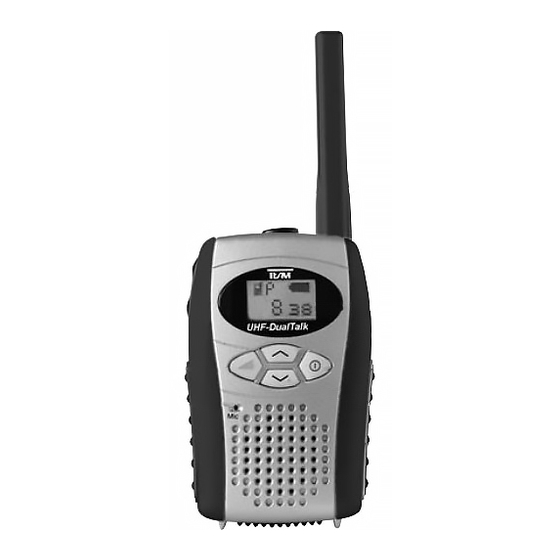

UHF-DualTalk
Public Mobile Radio +
Low Power Device
Operation Manual
electronic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF-DualTalk and is the answer not in the manual?

Questions and answers

Related Manuals for Team Electronic UHF-DualTalk

Summary of Contents for Team Electronic UHF-DualTalk

  • Page 1 UHF-DualTalk Public Mobile Radio + Low Power Device Operation Manual electronic...

  • Page 2: Controls & Connectors

    UHF-DualTalk PMR + LPD Radio...
  • Page 3 1.) Antenna 2.) Jack SP./MIC 3.) LCD Screen 4.) Up & Down Key 5.) Confirmation & On/Off Key 6.) Speaker 7.) Mic: Microphone 8.) Volume Key 9.) PTT Key 10.) Call Tone Key...

  • Page 4: Table Of Contents

    English Contens Page Page 8) Monitor function ......…….15 Controls & Connectors ......2 - 3 LC-Display ............. 5 9) Activating of the channel scan function..16 10) Transmitting……………………………..17 Set Up……………………………………………. 6 1) Inserting the batteries ........6 2) Switching On/Off: ........6 Additional Information 3) LCD illumination ..........

  • Page 5: Lc-Display

    English LC-Display Main Screen Appears if normal PMR status is activated or if Vox is switched on. Indicates the selected frequency band, i.e. PMR or LPD. Appears if key lock function is activated Indicates the actual condition of the batteries. Indicates receiving signals or for transmitting mode.

  • Page 6: Set Up

    English Setting up the TEAM UHF-DualTalk 1) Inserting the batteries Turn the unit in that way that the rear panel lies in front of you. Rotate the belt clip a quarter turn counter-clockwise, so that the battery compartment lid is accessible now.

  • Page 7: Lcd Illumination

    English Note: The On/Off operation of the confirmation and On/Off key ( 5 ) is disabled after the last confirmation. This factory setting has been made to avoid an unwanted On/Off switching of the unit. The disabling of the On/Off function will be cancelled after the key ( 5 ) is released once for a short time.

  • Page 8: Up And Down Keys

    English display returns to the main screen. ▼ 6) Up and Down keys ▼ If you depress briefly the keys Up and Down ( 4 ), the corresponding values ( volume, channel ) are changed for one step up or down. If you hold these keys for 1 or 2 seconds, the values change quickly into the corresponding direction.

  • Page 9: Power Save Function

    Otherwise every pressure of a key is indicated by a short tone. Operation of the TEAM UHF-DualTalk The TEAM UHF-DualTalk offers you the possibility to communicate in a band of your choice of two radio bands in the 70-cm-band ( UHF ). One band is the PMR band ( 446.00625 MHz –...

  • Page 10: Band And Channel Selection

    English 1) Band and channel selection ▼ To select another radio band depress out of the keys Down ( 4 ) 7 times or once. The display shows the writing . Then depress briefly the confir- mation and On/Off key ( 5 ).

  • Page 11: Channel Selection Within The Actual Band

    English 2) Channel selection within the actual band To select another channel within the actual band depress out of the keys ( 4 ) Down t 7 times or Up s once. The display shows the writing . Then depress briefly the confirmation and On/Off key ( 5 ).

  • Page 12: Volume Adjustment

    English muting device of the counter station can open also. If the function is inactive you can hear every station on the channel, and in transmit mode no tone is added to the modu- lation signal. ▼ To select the CTCSS function depress out of the keys ( 4 ) Down 6 times or 2 times.

  • Page 13: Squelch Adjustment

    English actual setting of the volume adjustment. At the highest or lowest value you hear a tri- ple confirmation tone. Press the confirmation key ( 5 ) or the volume key ( 8 ) to select the desired setting of the volume adjustment, and the display will return to the main screen.
  • Page 14 English ▼ depress out of the keys ( 4 ) Down 4 times or Up 4 times. The display shows the writing . Then depress briefly the confirmation key ( 5 ). Then the display shows . Below the writing you see a microphone symbol. On the left side of the writing “on“...
  • Page 15 English adjustment of the threshold of the sound level at which the transmitter starts to work, can be executed at inactive or active VOX function. To this end depress out of the ▼ keys ( 4 ) Down 4 times or Up 4 times.

  • Page 16: Monitor Function

    English the desired call melody at once, and the display will return to the main screen earlier. 8) Monitor function The noise suppression ( squelch ) in reception mode is designed to cut off the distur- bing noise, which the receiver produces on free channels, and to let pass only the speech signals of a counter station to the speaker.

  • Page 17: Transmitting

    English contains also a CTCSS tone. If the unit has found one, it identifies its corresponding code number and shows it in the display at the position ( G ). To activate the scan ▼ function depress out of the keys ( 4 ) Down once or Up 7 times.

  • Page 18: Safety

    English had been active, it would be terminated now. The sensitivity of the built-in micropho- ne Mic ( 7 ) has been set to give good results speaking normally at a distance of 2 inches. Speaking too loudly will cause distortions and make the signal difficult to understand.

  • Page 19: Service

    TEAM dealer or TEAM directly. Conformity The transceiver TEAM UHF-DualTalk complies with the rules of the European Directive R&TTE and meets the European Telecommunication Standards ETSI EN 301 489-5, ETSI EN 300 296-1/-2, ETSI EN 300 220-3/-1 and EN 60065.

  • Page 20: Frequency Tables

    Kanal-Frequenz (MHz)-Liste • Channel-frequency (MHz)-list • Liste canaux / fré- quences (MHz) • Lista canali / frequenze (MHz) • lista canales frequenzias (MHz) Freq. MHz Freq. MHz Freq. MHz Freq. MHz 433,075 19 433,525 37 433,975 55 434,425 433,100 20 433,550 38 434,000 56 434,450 433,125...
  • Page 21 CTCSS-Code Freq. Hz Kanalnummer / Channel Nr. CTCSS-Code Freq. Hz Numéro du canal / Numero 67.0 del canale / Numero del canal 131.8 71.9 136.5 74.4 Freq. MHz 141.3 77.0 146.2 446.00625 MHz 79.7 151.4 446.01875 MHz 82.5 156.7 446.03125 MHz 85.4 162.2 88.5...

  • Page 22: Accessories

    SLG UHF-DualTalk charger with adaptor Art. - Nr. PR2030 NMH 700 mAh rechargeable batteries Art. - Nr. AK7005...

  • Page 23: Accessories

    ORM-MS boam microphone with earphone and earpiece Art. - Nr. PR2014 OEM-MS headset/microphone with clip Art. - Nr. PR2019 Bitte nur geeignete Original TEAM Zubehörteile verwenden. Please use original TEAM accessories only. N’utilisez que des accessoires TEAM originaux, s’il vous plaît! Solamente utilizzare degli accessori TEAM originali, per favore!
  • Page 24 • Austria • France • Germany • Greece • • Netherlands • Sweden • U.K. • 0359 Nachdruck oder Vervielfältigung auch Auszugsweise nur mit ausdrücklicher Genehmigung von TEAM Electronic GmbH. TEAM Electronic GmbH Bolongarostrasse 88 electronic D-65929 Frankfurt / Main...
