  • Page 1 MiCo 446 PMR Public Mobile Radio electronic...

  • Page 2: Table Of Contents

    Contents Operating Instruction English page Controls & Connections 3 / 16 Setting Up 17 - 18 Operation 19 - 24 Notice : • Conformity • Approval • Servicing • General Precautions Connection Speaker/ Microphone Technical Data...
  • Page 3 MiCo 446...

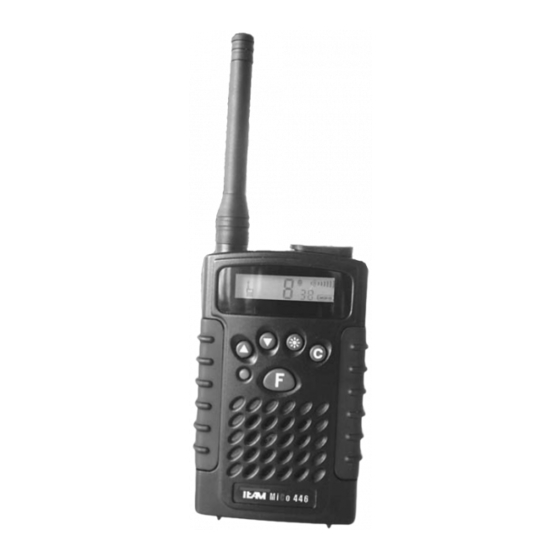

  • Page 4 English TEAM MiCo 446 Operation Controls and Connectors External Speaker Jack [SPK] External Microphone Jack [MIC] Push to Talk Key [ PTT ] Display Screen Function Key /Key Lock [F] CTCSS Code Key / Call Tone Key [C] Monitor Key / Display Backlight [❋]...

  • Page 5: Setting Up

    NiCd or MiMH batteries. For long time operation it is adviseable to use the extra battery pack APP-446-M. The MiCo 446 is ready for use after the batteries are inserted into the battery compartmet and the battery door is locked.
  • Page 6 English The maximum communication range can be obtained only by using fresh or fully charged batteries. Remove the batteries out of the set if it is not intended to be used for longer period. Rechargeable batteries or the rechargeable battery pack APP-446M can be recharged inside the transceiver by using the suitable desk drop in charger SLG-446-M.

  • Page 7: Operation

    English Operation TEAM MiCo 446 1. Red On / Off Switch Press and hold red button (8) to turn on. Symbols appears at the display. Press and hold again same button to turn off. 2. Display (4) (1) Displays current channel 1-8,...
  • Page 8 English 3. Push to Talk [PTT] To transmit depress and hold the PTT key (3) at left side of the set. The sensitivity of the built-in microphone has been set to give good results speaking normally at a distance of 5-10 cm. [▲...
  • Page 9 English 7. Channel Selection Press F key 1 time to activate the chan- nel setting mode. Press on of the selector keys [▲ ▼] momentarily to select the channel number 1-8. 8. Tone Call Selection Press the F key 2 times to activate the tone call setting mode.
  • Page 10 English 10. VOX-Sensitivity This is to be activated only while VOX is set “ON” and immediate press of F key can attain this mode. Press selecor key [▲] or [▼] to set the sensitiv- ity level. The highest level L4 makes the VOX most sensitive.
  • Page 11 English Press PTT or F key to choose it.. To set CTCSS “Off” press C key a few seconds till CTCSS number disappears. Purpose : CTCSS helps one avoid inter- ferences and is recommended in radio signal-congested area. It is a must to have CTCSS in order to activate Remote Monitor Function.

  • Page 12: Conformity

    English power mode is more power saving and suggested for short range transmission. When battery condition is weak 2 beep tones will follow when you press PTT. In this case the transmitting output power automatically switches to low power mode. 17.

  • Page 13: Servicing

    English Servicing The condition of the batteries must be tested from time to time. Worn out bat- teries must be removed from the device immediately. They can leak and dam- age the device. The complete set of bat- teries must always be replaced. Worn out batteries do not belong in the waste bin, but must be returned to suit- able collecting depot or to a special...

  • Page 14: Connection Speaker

    ❐ Pin configuration of the plug for speaker / microphone connection - Lautsprecher - Speaker Masse Ground + Mikrofon / PTT + Lautsprecher + Microphone / PTT + Speaker Nachdruck oder Vervielfältigung auch aus- zugsweise nur mit ausdrücklicher Genehmi- gung von TEAM Electronic GmbH.

  • Page 15: Technical Data

    Technische Daten Technical Data Frequenz / 446.00625 - Frequency : 446.09375 MHz Kanalanzahl / Number of Channels Kanalraster / Channel Spacing : 12,5 kHz Sendeleistung / TX Output Power : 500 mW Modulationsart / Modulation Method : NF-Ausgangsleistung : 180 mW Audio Output : (int.
