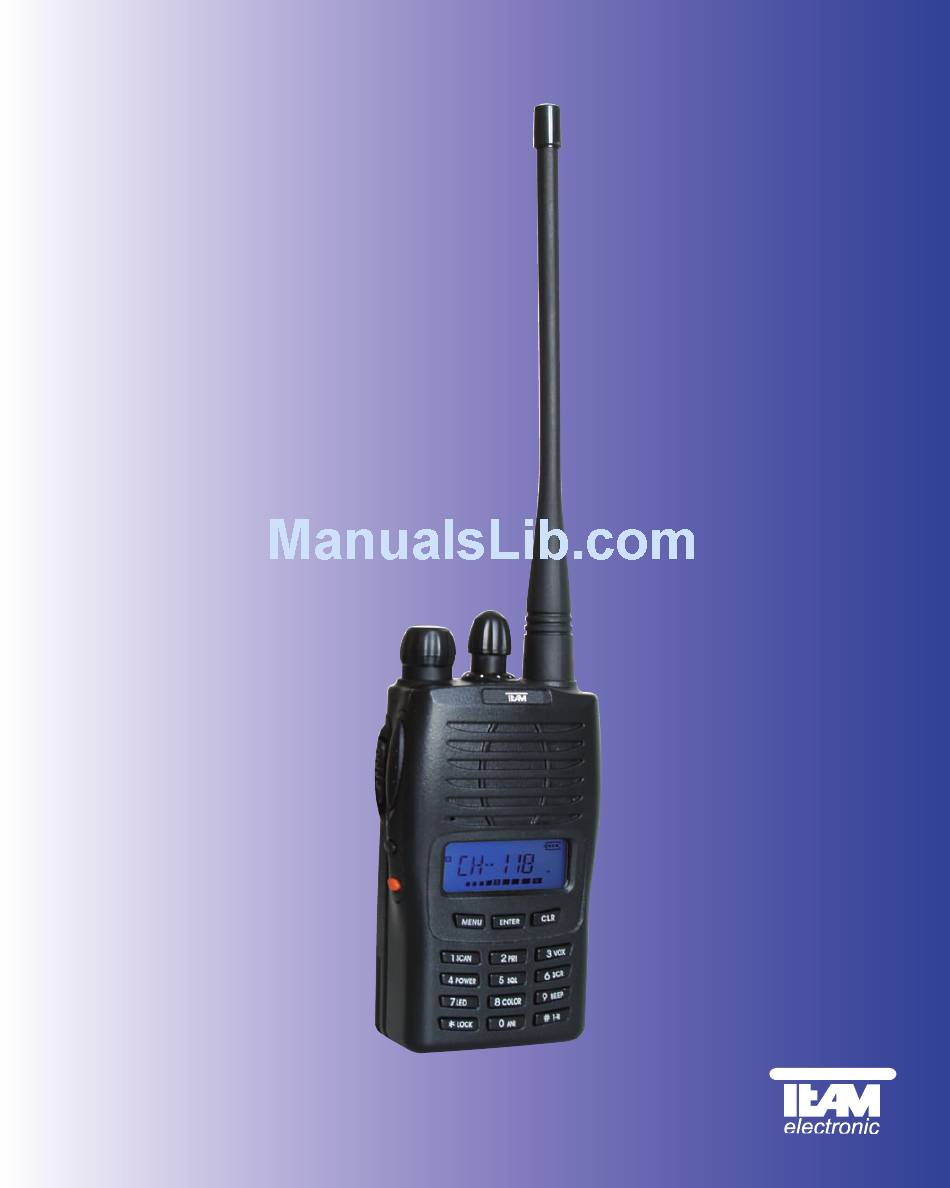

- Page 1 TeCom-PRO TeCom-PRO TeCom-PRO TeCom-PRO FreeNet FreeNet Funkgerät / Radio Funkgerät / Radio VHF Betriebsfunkgerät VHF Betriebsfunkgerät Bedienungsanleitung Commercial Radio Commercial Radio Manual...
- Page 2 TX Power (04) Squelch (05) TeCom-PRO Freenet – Item No. PR8102 Scrambler (06) The FreeNet version is only permitted in Germany. It does not require a licence and no fees apply.
-
Page 3: General
GENERAL Legend - Controls and Other Parts Unpacking Carefully unpack the giftbox and check the content for completeness. If any items are missing or damaged, please contact your dealer immediately. 1 Antenna 2 Rotary Channel Selector Scope of Delivery: 3 ON / OFF and Volume Knob 1 x TeCom-PRO 4 Speaker 1 x SMA-Antenna... -
Page 4: Manual
MANUAL Key Pad: 13 Menu ( MENU ) Basic Functions 14 Confirmation ( ENTER ) 15 Multi Functional Key ( VFO / MR ) Antenna 16 Scan ( 1 SCAN ) Place the base of the antenna into the SMA socket and turn the antenna clockwise until it fits tight. 17 Priority Scan ( 2 PRI ) To remove the antenna turn the antenna counter-clockwise. -
Page 5: Frequency Inversion
Delete all Settings Frequency Inversion This feature is only available in the commercial radio version. This function is only useful for the commerical radio version. Hold the menu key [MENU] while powering the radio on. The symbol „RESET?“ appears in the LC display. - Page 6 TX Power (04) Background Color (08) You can select between the TX powers HI and LO. The change of setting affects all channel. To change There are three different colors available for the background light : the transmit power for an individual channel see instructions for programming mode (step #8). LIGHT 1 : Purple In the freenet version, the programmed value for the low TX power (LO) is 300 mW and for the high LIGHT 2 : Orange...
-
Page 7: Channel Mode
Time-Out-Timer (12) Frequency Mode To avoid overly transmitting, the TeCom-PRO is equipped with the Time-Out-Time feature (TOT). The following settings are available : OFF; 30s, 60s, 90s, 120s, 150s, 180s, 210s, 240s and 270s. ATTENTION: The following functions are only available in frequency mode. To set the Time-Out-Timer open the menu by pressing the menu key [MENU] and turn the channel Due to governmental regulations, no frequency mode is available in the FreeNet version. - Page 8 CTCSS/DCS TX-Code (18) Hints: The setup of this functions follows the aforementioned procedure, described in CTCSS/DCS RX-Code > It is possible to program more than one channel once you are in programming mode. (18). > It is not necessary to program all ten steps. Once steps 1 and 2 are programmed, the channel is stored and available in the operation mode.
-
Page 9: Name (15)
Diagram MENU Functions in Channel Mode 6. Busy Channel Lockout Channel Selector This function prevents transmission on occupied channels. The following options are available: Channel Scan ENTER To End Press ENTER SCAN ? All Programmed Channels ENTER OFF : Function deactivated Channel : Signal –... -
Page 10: Bandwidth
Additional Functions in Frequency Mode MENU Channel Selector Channel Selector ENTER Settings TX-RX ENTER To store setting and leave DIFFR? Difference : 0 - 99,995 MhZ menu press VFO/MR twice Channel Selector Channel Selector ENTER CTCSS TX & RX : ENTER To store setting and leave C-CDC ? - Page 12 For Use and Sale in : TeCom-PRO TeCom-PRO TeCom-PRO FreeNet (PR8102) Germany TeCom-PRO Commercial (PR8029) Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Great Britain, Greece, Hungary, Italy, Lithuania, Luxembourg, the Netherlands, Norway, Poland, Portugal, Spain, Sweden Service : TEAM Electronic GmbH...
