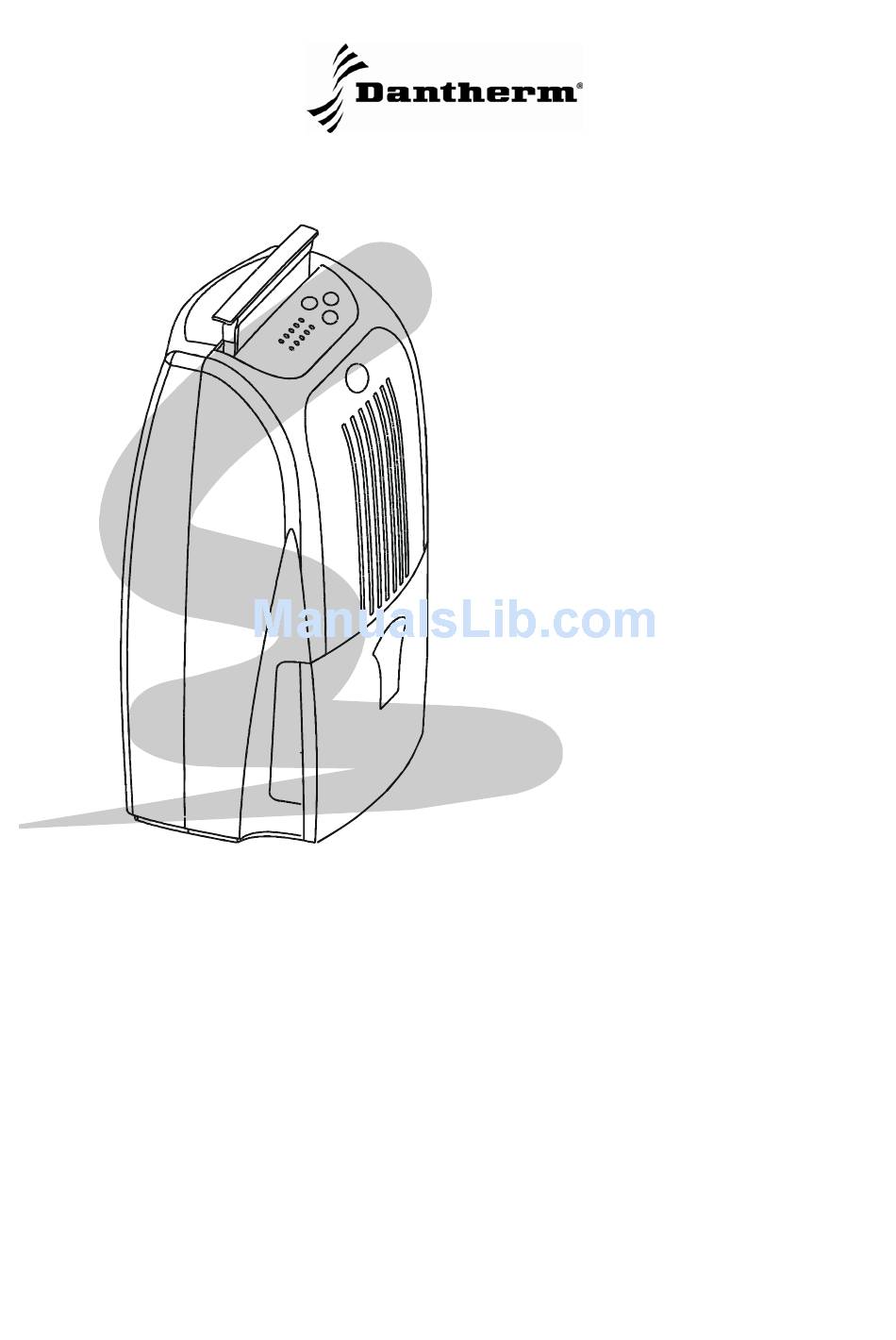

Instruction manual
Dehumidifier model: CD 400-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD 400-18 and is the answer not in the manual?

Questions and answers

Related Manuals for Dantherm CD 400-18

Summary of Contents for Dantherm CD 400-18

  • Page 1 Instruction manual Dehumidifier model: CD 400-18...

  • Page 2: Table Of Contents

    CONTENTS ▉ Precautions ▉ Operation and performance ▉ Parts names and functions ▉ For selecting functions properly ▉ Preparation and checking before operation ▉ How to operate ▉ For maintenance ▉ For continuous draining ▉ Specification ▉ Trouble-shooting Please read this instruction manual carefully before operating your dehumidifier. Please save it for your further reference.

  • Page 3: Precautions

    Precautions Please read "Precautions" carefully before operating your dehumidifier. The warnings and the cautions stated in "Precautions" must be observed for safe operation. Warning means improper handling may result in a death or a serious injury to a person. Cautions means improper handling may result in an injury or damage to properties. Shows Prohibition Shows Compulsion Shows Caution...
  • Page 4 ■ Do not connect the dehumidifier to an outlet having the electrical ratings below the dehumidifier's. ■ The power cord must not be damaged or modified. Do not put anything hot or heavy on the cord. Do not pull it out , or bundle it during operation. ■...
  • Page 5 ■ Do not use the unit in places subject to chemicals. ■ For continuous draining, make sure that the drain hose is set properly without a rising slope. ■ Be careful that a heating appliance is not exposed to the air outlet from the dehumidifier.

  • Page 6: Operation And Performance

    Operation and Performance Defrosting operation The evaporator within the dehumidifier builds up ice during the dehumidifying operation at room temperature of ℃ approx. 15 or less. For removing ice the defrosting device works automatically at an interval of approx. 30 minutes or more (for duration of approx.

  • Page 7: Parts Names And Functions

    Parts Names and Functions Front Back Handle Handle Upward Air Upward Outlet Air Outlete Upward Air Outlet Upward Air Outlet Controls Controls Downward Air Outlet Downward Air Outlet Rating Labble Rating Label Air Intakes Air Intakes Power Cord Power Cord Water Tank Water Tank Up: 30cm or more...
  • Page 8 Controls This M/I light indication method Light off Light on Light flashing Indication current environment humidity. The indication of current Press "Timer Select" environment humidity. Press "Timer Select" switch to set the timer switch to set the timer for automatic stops. Lamp lights up and the operation for automatic stops.

  • Page 9: For Selecting Functions Properly

    For Selecting Functions Properly MODE To dehumidify a room for comfortable humidity or protect a ceiling and/or walls from getting damp and mouldy. To dehumidify a room or keep a ceiling and/or walls from dew consideration and getting moldy AUTOMATIC To dehumidify a closet CONTINUOUS...
  • Page 10 Operation mode "Automatic" To open the upward air ■ Open either the upward flap or the downward flap outlet flap. ■ The dehumidifying operation stops automatically when the relative humidity is below approx. 60 %. The dehumidifier continues the air cleaning operation only ("Automatic operation lamp remains lighting up.) Operation mode "Continuous"...

  • Page 11: Preparation And Checking Before Operation

    Preparation and Checking before Operation Make sure that the water tank is set properly. Your dehumidifier cannot be operated when the water tank is full of water or it is not set properly. How to remove Draw the water tank gently toward you by holding the concave part of the tank.
  • Page 12 Continuous Continuous Humidity indicator Humidity indicator Press "Power" switch. ■ "Automatic"mode lamp will light up. ON/OFF Set the unit to the desired operation by pressing "Mode" switch. ■ Every timer you press the "mode" switch, the mode select lamps light up in turn as shown and the operation mode will be changed.
  • Page 13 Humidity Indicator Automati Continuous Dry Clothes Air Clean MODE TIMER SELECT ■ With the lapse of time, the timer lamp lighting up will indicate the remaining time. The unit will stop operating after the lapse of the set time. Warning Prohibit To avoid damages to the power cord, do not pinch the cord in a door.
  • Page 14 Buzzer Whenever a switch is pressed, the buzzer will sound. Note Be sure to open one of the flaps. If the flap is not opened fully during operation,the overheat prevention device will work and the unit will stop operating. Due to the protetive function for the machine,the dehumidifying operation will be started after approx.3 minutes,when the unit is plugged in or restarted immediately after stopped.

  • Page 15: For Maintenance

    For maintenance Warning To avoid of the risk of electric shock, never connect and Prohibit wet hand disconnect the plug with your hand wet. Caution Turn off the unit and disconnect the power plug before cleaning or Other routine maintenance. Do not remove the float lever from the water tank.
  • Page 16 Front & Side Air Intakes (maintenance every 3 months) filter holder ■ The dehumidifying capacity will be lowered when the filter filter gets clogged. ■ Pull the cover toward you and remove it from the unit. Remove the filter from the filter holder. ■...

  • Page 17: For Continuous Draining

    For continuous draining with hose Cautions Ensure drain ■ For continuous draining, make sure that the drain hose is set properly without a rising slope. ■ To prevent the water from freezing, do not use the dehumidifier and drain hose at Prohibit ambient temperature below 0 C.

  • Page 18: Specification

    Specifications Model CD 400-18 PowerSupply 220V-240V (50Hz) Dehumidity Capacity 18 ltr./24 hours (30℃/80 % RH) Power Consumption 340W Capacity of water tank Approx.4,5 L Weight 13kg Dimensions Height 575mm, Length380mm, Width 225mm Room Temperature 5℃-35℃ The specification may be subject to change without notice for purpose of improvement.
  • Page 19 Nothing is wrong with your dehumidifier in case of the following phenomena Phenomenon Reason Operation stops occasionally The unit is defrosting (See page 5). Dehumidifier volume less when the room temperature is low (see page 6) The unit stops operating when the Dehumidified volume is small room temperature is below approx..
