Instruction Manual

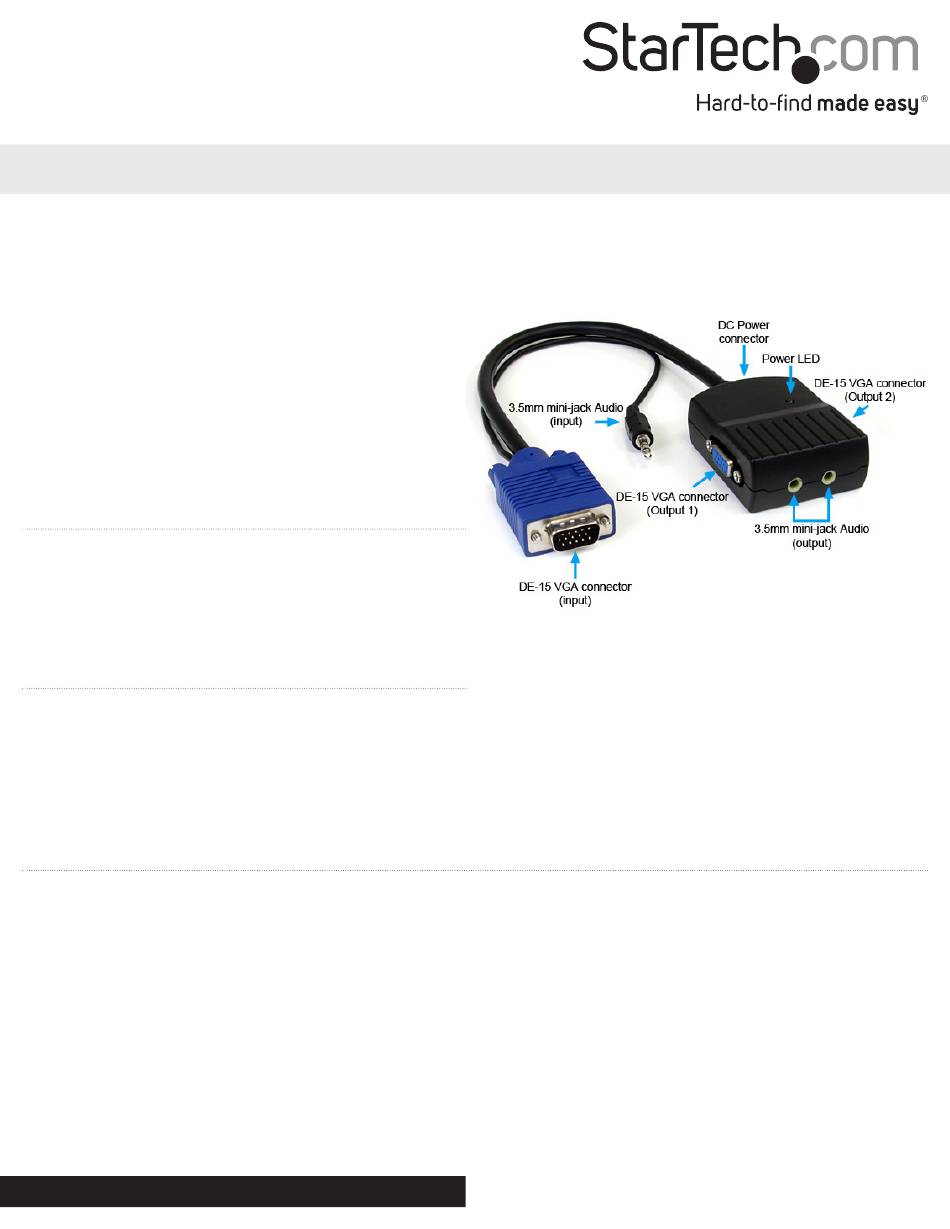

2-Port VGA Video Splitter with Audio - USB Powered
ST122LEA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x Video Splitter
• 1 x USB to DC power cable
• 1 x User Manual
System Requirements
• VGA enabled video source device
• Available USB port on the video source device
• VGA enabled display device
• Analog stereo audio source with 3.5mm mini-jack interface
• Stereo speakers with 3.5mm mini-jack interface
Installation
1. Make sure all devices are powered off and unplugged before attempting installation.
2. Connect the male VGA connector on the ST122LEA to the VGA output on the video source device (i.e. computer system).
3. If using audio, connect the integrated 3.5mm mini-jack audio connector to the audio output on the source device.
4. Connect the video display devices (i.e. monitor, projector, etc.) to the female VGA connectors on the ST122LEA, using standard male/male
VGA cables.
5. If using audio, connect a set of stereo speakers (or integrated speakers on the display device) using 3.5mm mini-jack audio cables to the
splitter unit.
NOTE: Both outputs on the ST122LEA are identical, so the same audio and video will be output.
6. Connect the USB power cable from the DC power connector on the ST122LEA splitter unit to an available USB port on the source device.
7. Power on the display devices and speakers (if applicable).
8. Power on the video source device.
For the most up-to-date information, please visit: www.startech.com
*actual product may vary from photos
Manual Revision: 03/16/2017
