Spire M4240 Quick Reference Manual

Quick Reference Guide
M4240

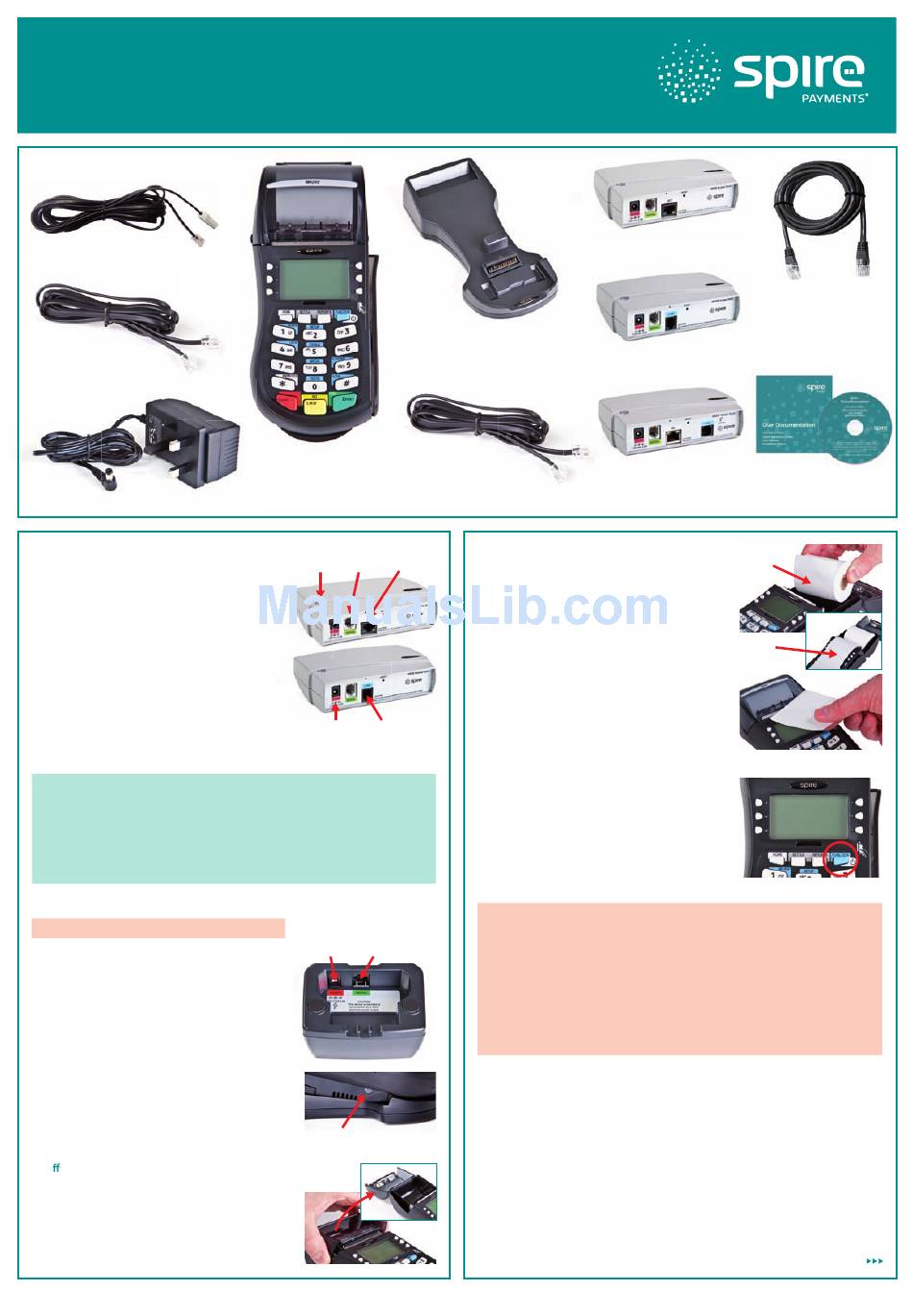

What's in the box*:
UK Telephone Cable
(supplied with AP100 or AP210)
OR
ROI Telephone Cable
(supplied with AP100 or AP210)
Power Supply/s
(1 or 2 depending upon
product configuration)
*Box contents may vary for replacement/swaps, **Ethernet cables are optional depending upon terminal model and order configuration

1. Connect the Access Point:

• Connect Ethernet and/or telephone cables as
required between the access point and wall
sockets. For AP210, you can use either or both
connections, but some configurations are
restricted to dial only (in in doubt call helpdesk).
• Connect one of the power supplies to the red
POWER port and to a plug socket.
Check that the green power indicator is
illuminated and that the Access Point beeps
twice.
• Connect one end of the pairing cable to
green SERIAL port and leave in place.
the
This is recommended for ease of location
when troubleshooting.
Useful tips:
• For optimum Bluetooth wireless range, minimise obstructions by
positioning the Access Point where it is in line of sight to where you will
be using the handset. Position on a wall using the fixing screws provided
for optimum Bluetooth coverage.
• Ensure your firewall settings are set to allow the terminal to send and
receive data over your network.
2. Connect Power Supply & Charging Dock
DO NOT TURN ON HANDSET UNTIL INSTRUCTED
• Remove the battery from the terminal by
pressing in the release clip and pulling out the
battery. Remove and discard the protection film
across the contacts. Replace the battery ensuring
that it is firmly in place and flush with the
terminal body.
• If Charging Dock supplied, connect a power
red POWER port under the
supply to the
Charging Dock and to a mains wall socket.
• Place the handset carefully on the Charging Dock.
• If Charging Dock is not supplied, connect
the power supply direct to the terminal.
The charging light should light up
to indicate that the battery is charging. Please
allow the battery to fully charge before taking it
o the dock/supply (this may take 2 to 4 hours).

3. Insert a paper roll:

• Using your fingers, pinch the sides of
the Printer Cover and pull up firmly.
If this is a new terminal, remove the roll from
the holder and remove an outer packaging
that may be present.
1
Page
M4240 Handset
(New terminals include
a pre-fitted battery)
Power NET port
SERIAL
indicator (for network
port
light connection)
POWER LINE port
port (for telephone
connection
POWER port SERIAL
red
RED = charging
GREEN = Fully charged
D4200 Charging Dock
(supplied as standard with some
product configurations only; for
charging the handset and pairing the
Handset with its Access Point)
Pairing cable
(has two small transparent
connectors at each end)
• Drop the paper roll into the holder
with the paper feeding from
underneath the roll.
• Pull a short length of the paper over
the screen.
• Shut the Printer Cover over the paper
until you hear it 'click' .
• Pull and tear the paper over the serrated
edge as shown.

4. Turn on the handset:

• Hold down the
• Let go when the terminal 'beeps' .
After a few seconds the screen will show the desktop
with icons and then the SALE / REFUND (Idle) Screen.
The terminal will automatically connect to bank systems
to logon as required.
MID Entry:
Your terminal may prompt for you to enter your MID as a security check.
Replacements/swaps:
port
If you are receiving a replacement handset or Access Point, the two items will need to have
their Bluetooth configured so that they can "talk" to each other before you attempt the
download. Please refer to the User Manual or call the helpdesk for assistance.
DHCP:
(relevant if you are using a network connection)
Your terminal will be pre-configured for use on standard networks featuring DHCP (automatic
allocation of IP addresses). In the unlikely event that your network does not have this feature,
please call the helpdesk for assistance.

Updates

Once a month, your terminal will connect to Spire systems to download
any new software and/or important changes*. This update will typically
occur during the night. For this reason, Spire suggests you leave your
terminal powered on and placed on the Charging Dock or directly to the
Power Supply at all times. In the event of it being switched off when the
update tried to take place, your terminal will notify you to leave its power
on for another update attempt the following night.
* For Dial-Up products: In the UK, calls for updates will be charged at £0.10 per minute from a BT
landline. In ROI, calls will be charged at €0.065 per minute from an Eircom landline.
The charges for other networks may vary. Prices correct at the time of printing.he charges for other
networks may vary. Prices correct at the time of printing.
AP110 Access Point
(supplied with M4240 Network variant)
OR
AP100 Access Point
(supplied with M4240 Dial-Up variant)
OR
AP210 Access Point
(not depicted, supplied
with M4240 Dual
Communications variant)
paper
paper
blue FUNCTION button.
Please turn over to continue...
Ethernet Cable **
(supplied with AP110
and AP210)
Document pack
Drop
roll
Pull
roll
22048-05
