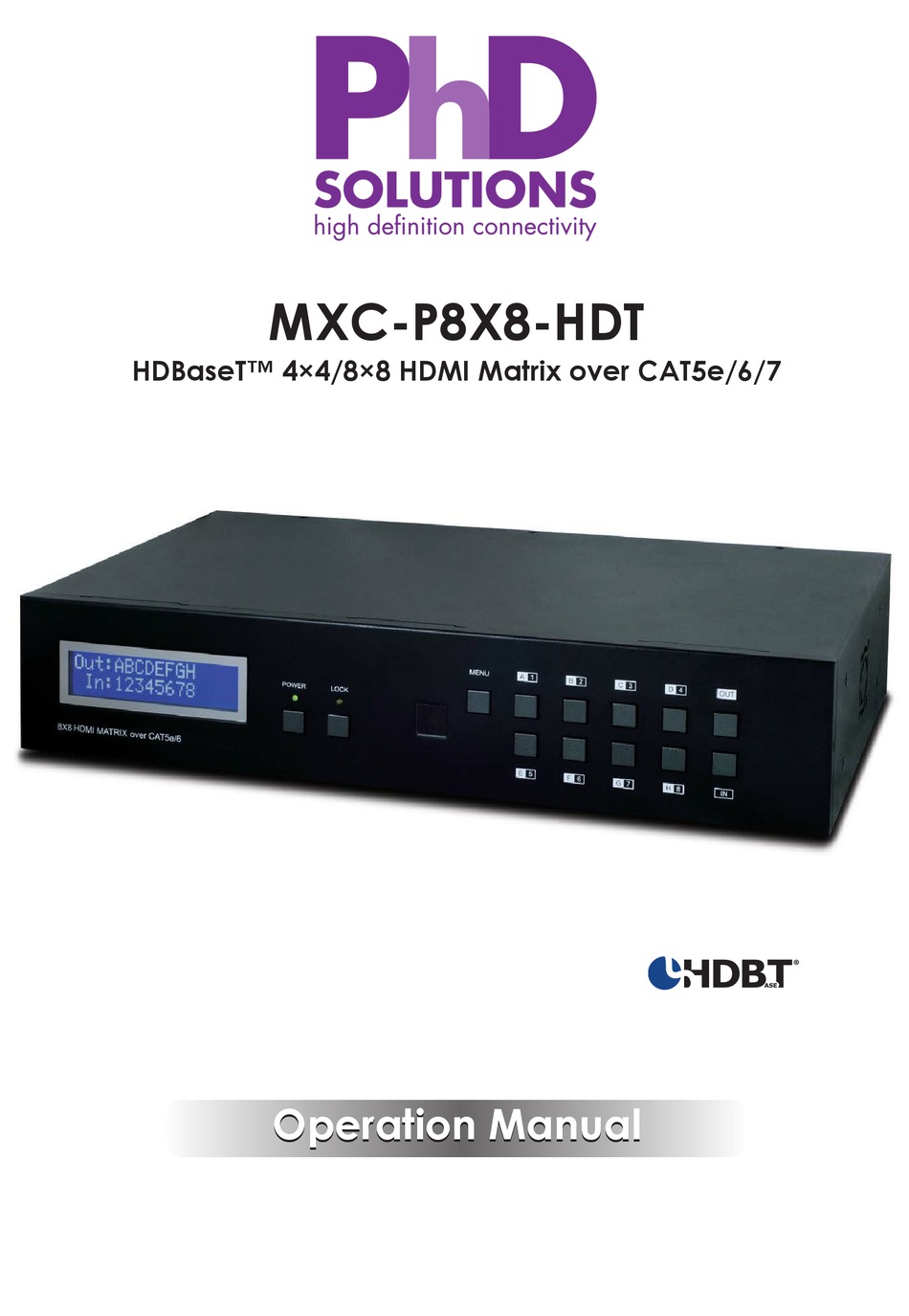

- Page 1 CMSI-4H4CV/CMSI-8H8CV MXC-P8X8-HDT HDBaseT™ 4×4/8×8 HDMI Matrix over CAT5e/6/7 Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........5 6.5 IR Cable Pin Assignment....6 6.6 RS-232 Pin Assignment .....7... -
Page 4: Introduction
1. INTRODUCTION The HDBaseT™ 4 by 4 or 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS- 232, Telnet or Web GUI from four or eight high defi nition sources to four or eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output.It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master... -
Page 5: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 6: Operation Controls And Functions
6.1 Front Panel MENU POWER LOCK 8X8 HDMI MATRIX over CAT5e/6 MXC-P8X8-HDT LCM: Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. - Page 7 PoE 24V: Plug the 24 V PoE power supply into the unit and connect the adaptor to an AC outlet. This unit will mainly power PoE (Power over Ethernet) capaable receiver units. Warning: Please do not connect the CAT5e/6/7 cable into the receiver's LAN port.
-
Page 8: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 9: Remote Control
6.6 RS-232 Pin Assignment Domestic HDMI Matrix System CMSI-8H8CV/CMSI-4H4CV Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 10: Rs-232 Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 11: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands Command Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8... -
Page 12: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 13 Once in the command line interface (CLI) type "telnet", then the IP address of the unit and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control.
-
Page 14: Web Gui Control
6.9 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 15 Clicking on the 'User Setting' tab allows you to reset the IP confi guration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 16: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE ZONE ZONE ZONE ZONE ZONE ZONE Power Power Power Power Power Power Power Power Link Link Link Link Link Link Power Power Link Link IR 1 IR 1 IR 2 IR 2 IR 1 IR 1 IR 2 IR 2... - Page 17 ZONE ZONE ZONE ZONE ZONE ZONE Displays HDMI Outputs IR Out/In Receiver Units Power Power Power Power Power Power Link Link Link Link Link Link Link Link IR 1 IR 1 IR 2 IR 2 IR 1 IR 1 IR 2 IR 2 IR 1 IR 1...
-
Page 18: Specifi Cations
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4H4CV: 4×HDMI, 5×IR Extender, 1×RS- 232, 1×RJ-45(Control), 1×Mini USE Type B (For fi rmware updated only) 8H8CV: 8×HDMI, 9×IR Extender, 1×RS- 232, 1×RJ-45(Control), 1×Mini USE Type B (For fi rmware updated only) Output Ports 4H4CV: 4×CAT5e/6/7, 5×IR Blaster 8H8CV: 8×CAT5e/6/7, 9×IR Blaster... -
Page 19: Acronyms
CAT5e/6/7 Cable Specifi cation Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, (HD Video) 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 20 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
- Page 21 Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
