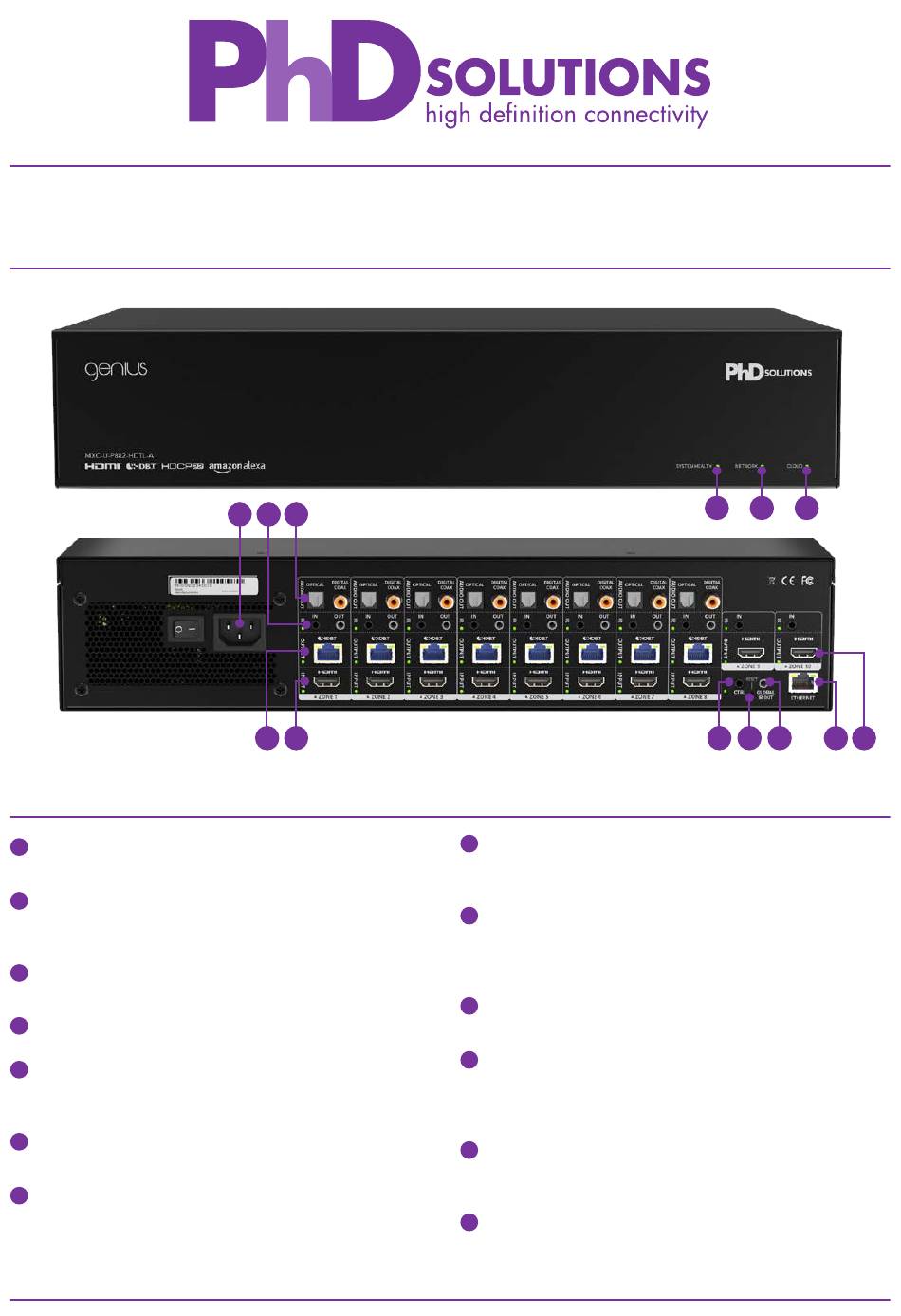

FRONT
REAR
TECHNICAL OVERVIEW
A
System Health LED Indicates whether matrix is turned
on and healthy (green), or if there is an issue present (red).
B
Network LED Indicates the matrix is connected to the
internet through its network link (green) or if there is an
issue (red).
C
Cloud LED Indicates the matrix is able to connect to the
Remote Monitoring Portal (green) if there is an issue (red).
D
Power Connector Power connector with OFF/ON switch.
Use supplied power cord to connect the power.
E
IR Receiver and Transmitter Ports Connect as
required. The IR Out port is to be used to connect input
devices using the supplied IR Emitters.
F
Audio Output Optical and Digital Coax options for Source
Audio Breakouts.
G
HDBaseT Outputs Connect the appropriate Cat5e or
higher grade cable to each output. These cables should
then be connected to one of the supplied HDBaseT
Receivers at each Sink device. (TV/Amplifier etc.).
QUICK SETUP GUIDE
MX C-U -P8 8 2- HD TL-A
D
E F
G
H
H
HDMI Inputs Connect the appropriate high speed
HDMI cable to each input. These cables should then be
connected to the Source device. (Bluray player etc.)
I
Control IR Input General IR input designed for legacy control
systems or where direct IR input is required (we recommend
the use of our IP driver instead of this port, where applicable).
Please see full manual for more information.
J
Reset Factory reset - please use only when instructed by
our customer service team.
K
Global IR Used for a control system to be able to see
all IR signals from all zones. We recommend using a
P8-IR-Optocable for connectivity from this port to your
control system. Please see full manual for more information.
L
Ethernet Connect to network - required for connection
to Web Interface, Third Party Control and Cloud Remote
Monitoring Portal.
M
HDMI Outputs Connect the appropriate high speed
HDMI cable to each output. These cables should then be
directly connected to each Sink device. (TV/Amplifier etc.)
A
B
C
I
J
K
L M
