PhD Solutions MX-2H4H-4K Operation Manual

4 by 2 hdmi matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CMPRO-4H2H
MX-2H4H-4K
4 by 2 HDMI Matrix
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-2H4H-4K and is the answer not in the manual?

Questions and answers

Related Manuals for PhD Solutions MX-2H4H-4K

Summary of Contents for PhD Solutions MX-2H4H-4K

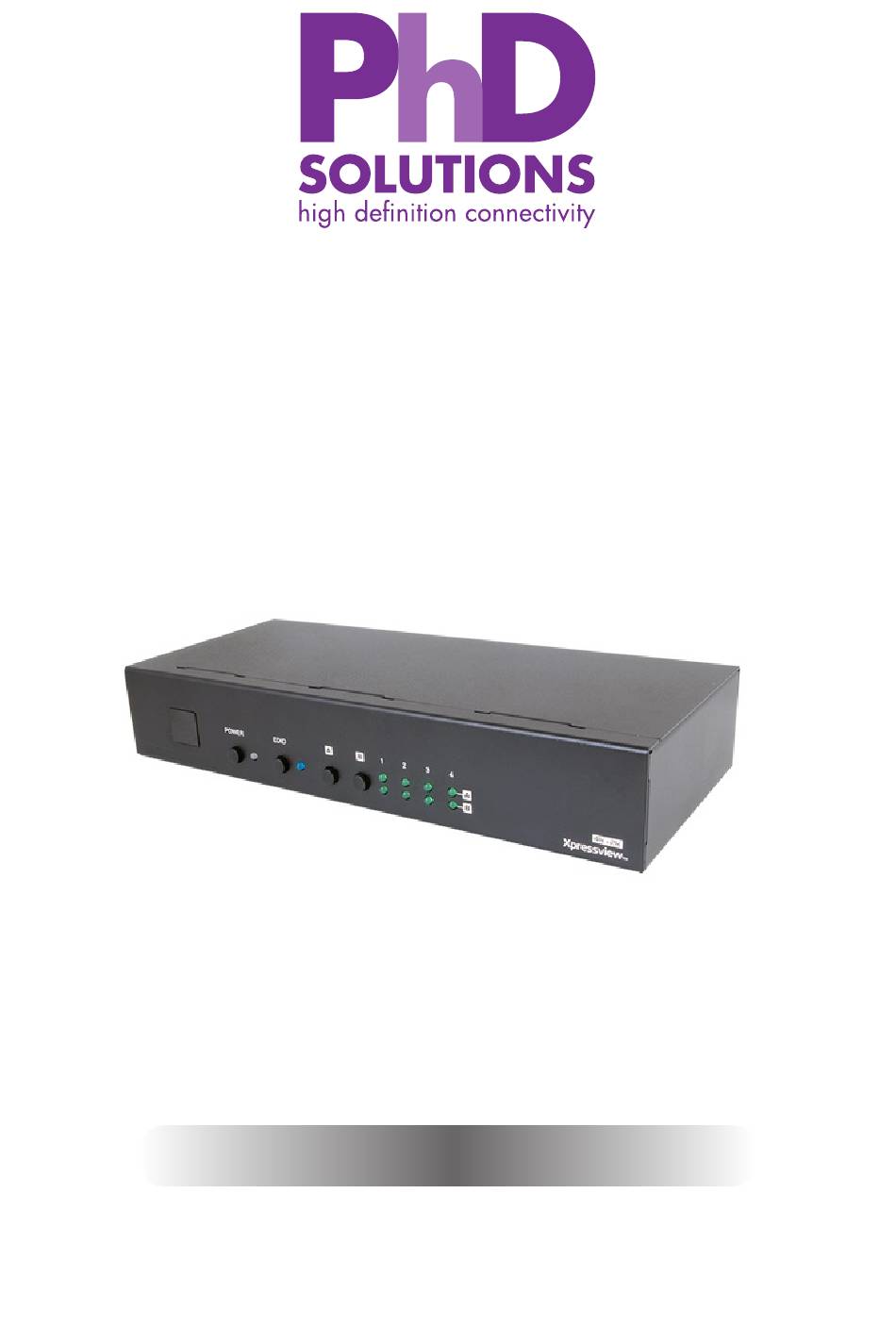

  • Page 1 CMPRO-4H2H MX-2H4H-4K 4 by 2 HDMI Matrix Operation Manual Operation Manual...
  • Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 D-Sub 9 Pin Defi...

  • Page 4: Introduction

    1. INTRODUCTION The 4 by 2 HDMI matrix with 4kx2k supported which allows HDMI signal from any of its four sources to be routed to and displayed on any of its two connected HDMI displays simultaneously. It supports 3D, Deep Color, Hi-Def lossless audio and other features defi ned by HDMI specifi...

  • Page 5: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER EDID CMPRO-4H2H 4X2 HDMI MATRIX IR receiver window accepts the remote control signal of this device. POWER & LED Press this button to power the device on/off. The LED will illuminate when the power is on.

  • Page 6: Rear Panel

    6.2 Rear Panel INPUT OUTPUT RS232 CONTROL POWER DC 5V SERVICE INPUT 1~4 Connect input source equipments such as DVD/Blu-ray players with HDMI cables. OUTPUT A/B Connect to HDMI 3D TV/display or monitor for both audio and video or moving/static graphic play. RS-232 Connect to a PC or laptop with D-Sub 9-pin male cable for the transmission of RS-232 commands.

  • Page 7: Remote Control

    OUTPUT OUTPUT B 1~4 Press buttons 1~4 to selection the nominated input for output CR-33 OUTPUT C&D 1~4 Void. 6.4 D-Sub 9 Pin Defi nitions MX-2H4H-4K CMPRO-4H2H Remote Control Assignment Assignment Baud Rate: 19200bps Data Bit: 8 bits Parity: None...

  • Page 8: Rs-232 Protocols

    6.5 RS-232 Protocols Command Description A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 AB...1~AB...4 Switch Output A B ... to 1~4 at the same time SETIP <IP> <SubNet> <GW> Setting IP. SubNet. GateWay <SataicIP> RSTIP IP confi guration was reset to factory default<DHCP>...

  • Page 9: Web Gui Control

    6.6 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address(get from RS-232's help command or use the default IP: 192.168.0.1) on the web address entry bar.
  • Page 10 Clicking on the 'Setting' tab allows you to reset the IP confi guration. The system will ask for a reboot of the device every time when any of the setting is changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.

  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray or Blu-ray or PS3 Player PS3 Player Blu-ray or Blu-ray or PS3 Player PS3 Player HDMI HDMI RS-232 Equipped PC or Notebook HDMI HDMI INPUT OUTPUT RS232 CONTROL POWER DC 5V SERVICE HDMI with Active HDMI Network Channel 3D TV/...

  • Page 12: Specifications

    8. SPECIFICATIONS Video Bandwidth 340Mbps /10.2Gbps Input ports 4 x Female HDMI type A, 1 x IR In, 1 x RS-232, 1 x Control, 1 x Mini USB (for service only) Output ports 2 x Female HDMI type A HDMI I/O Cable Distance 15m/8-bit, 10m/12-bit Output Resolution 480i ~1080p, VGA~WUXGA &...
  • Page 13 HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50 1920x1080p@60 1920x1200@60(RB) 3840x2160@24/25/30 4096x2160@24...

  • Page 14: Acronyms

    PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
  • Page 15 Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
  • Page 16 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
