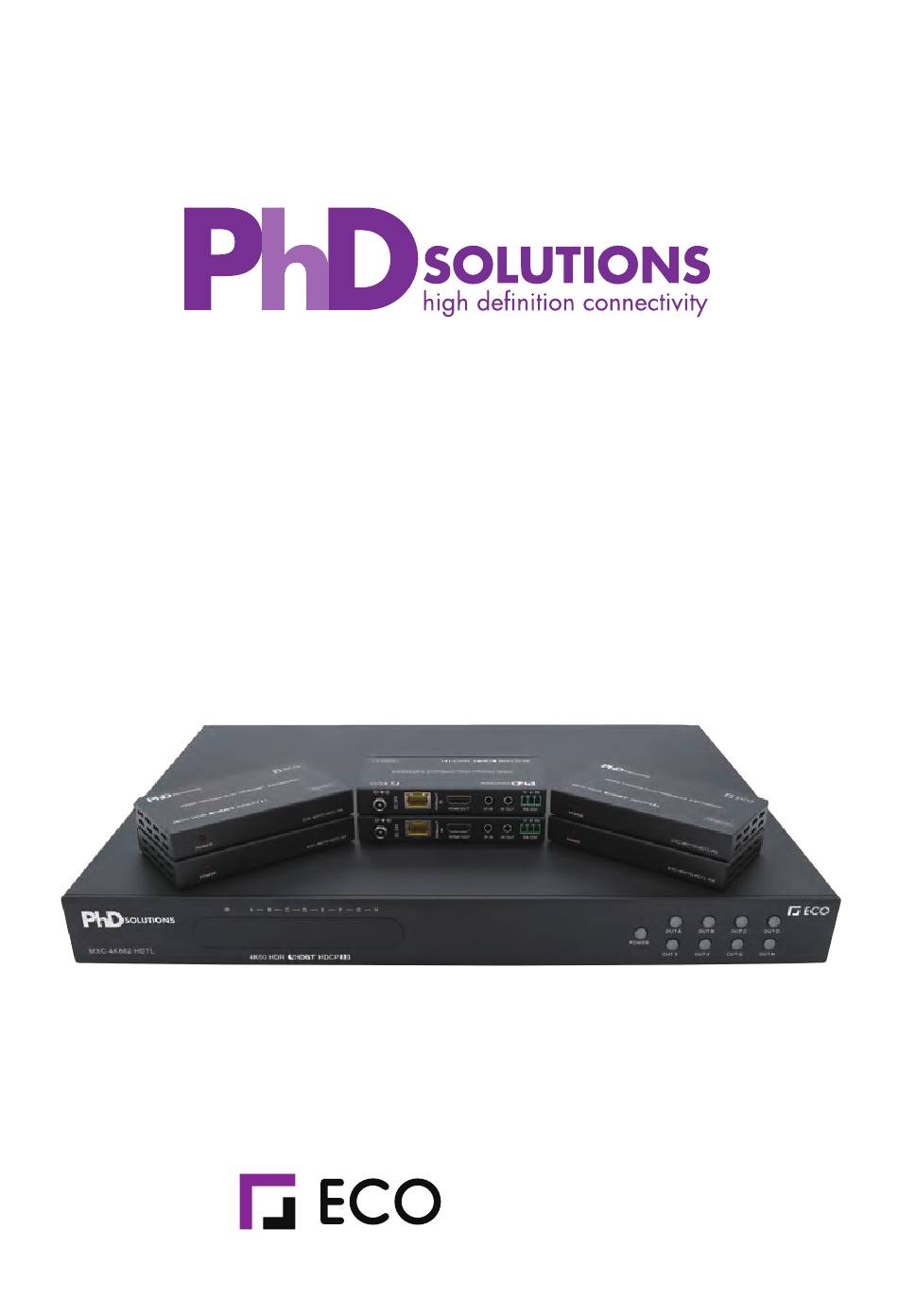

- Page 1 MXC-4K862-HDTL-KIT 8x6+2 HDBaseT™ 18Gb 8X8 Matrix Kit User Manual Series VER 1.0_ 06062019 MXC-4K862-HDTL-KIT User Manual...
-
Page 2: Table Of Contents
CAT5e/6 cable, which can cause problems with the signal transmission. Only use the power supply supplied with the unit, or a PhD Solutions supplied replacement. Do not disassemble any of the equipment. This will void the manufacturer’s warranty. -
Page 3: Introduction
MXC-4K862-HDTL-KIT USER MANUAL 1.Introduction The ECO 8x8 HDBaseT™ Matrix is built with the latest features, at economic price points and is tailored for the custom installer. It supports HDMI2.0 4K60Hz 4:4:4 HDCP2.2 HDR-18Gbps up to 40m and 1080P up to 70m.Embedded with CSC visually lossless compression technology it delivers HDMI, Bi-directional IR, and PoC (PoE) over a single CAT cable. -
Page 4: Package Contents
PHD-OPTOCABLE-E: Optically isolated IR control cable, 3.5mm Mono to 3.5mm Stereo jack, for IR passthrough from third party control solutions to PhD Solutions ECO matrices and extenders. Compatible with 12v IR third party products. Note: Cable is directional -Mono end plugs into IR output of the control system -stereo end plugs into the IR input of the matrix or extender. -
Page 5: Specifications
MXC-4K862-HDTL-KIT USER MANUAL 5.Specifications Technical Video Bandwidth 600MHz[18Gbps] 480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/ Video Resolution 50/60, 4Kx2K@30, 4Kx2K@60 (4:4:4) HDBASET Class B Input Ports: 8×HDMI Type A [19-pin female] 9×IR input [3.5mm Stereo Mini-jack] 1×RS-232 [Phoenix connector] 1×LAN [RJ45 connector] Matrix Output Ports: 2×HDMI Type A [19-pin female]... -
Page 6: Colour Space Conversion (Csc)
MXC-4K862-HDTL-KIT USER MANUAL 6.Colour Space Conversion (CSC) Technology over HDBaseT™ HDBaseT™ technology is limited to the maximum bandwidth of CAT cable at 10.2 Gbps, it does not have enough bandwidth to support the 18Gbps required for 4K UHD resolutions of 4K 60Hz 4:4:4 or 4K60Hz 4:2:2 with HDR 8/10bit colour space. - Page 7 MXC-4K862-HDTL-KIT USER MANUAL Rear Panel Number Name Function description IR input ports-1&2 have no function, IR input ports 3-8 sends 5V IR out to C,D,E,F,G & H corresponding HDBaseT™ Zones. PHD- IR INPUT OPTOCABLE-E will be required when sending IR into these ports from a 3rd party control system.
-
Page 8: Hdbaset™ Display Receiver
MXC-4K862-HDTL-KIT USER MANUAL 8.HDBaseT™ Display Receiver The Matrix is supplied with 6x EXC-4KP70-HDTL-RX HDBaseT™ display receivers The EXC-4KP70-HDTL-RX Receiver is a Class B HDBaseT™ receiver with 2-way IR pass-through. The receiver supports display distances up to 70m @ 1080P and 40m 4K (4K60 4:4:4 / 18Gbps at the input). -
Page 9: Infrared (Ir) Distribution
9.Infrared (IR) Distribution The matrix includes multiple options for control and routing of IR signals. IMPORTANT: PhD Solutions Infrared matrices and extenders are all 5v and are NOT compatible with alternative manufacturers Infrared solutions. Please use the supplied IR (TX) Emitters/blasters &... - Page 10 IR routing system IR control from a 3rd party control system IMPORTANT: PhD Solutions Infrared matrices and extenders are all 5v and are NOT compatible with most alternative manufacturers Infrared solutions. When using third party 12v IR control solutions please use the optional PHD-OPTOCABLE-E Opto-isolated cable for IR conversion, these are available as an optional accessory from your dealer.
- Page 11 MXC-4K862-HDTL-KIT USER MANUAL IR input routing will work as follows: IR Input 3 corresponds to HDBaseT™ output Port C, IR Input 4 corresponds to HDBaseT™ output Port D, IR Input 5 corresponds to HDBaseT™ output Port E. IR Input 6 corresponds to HDBaseT™ output Port F, IR Input 7 corresponds to HDBaseT™ output Port G.
-
Page 12: Master Remote Control
MXC-4K862-HDTL-KIT USER MANUAL IR Pin-outs IR (RX) Receiver and IR (TX) Emitter/Blaster IR RECEIVER IR BLASTER Each PhD ECO Matrix KIT is supplied with all necessary IR hardware required and includes: Contextual IR The Matrix receives CONTEXTUAL infrared (IR) commands from display receivers, determining which zone output the IR command originated from. -
Page 13: Web Gui Setup Guide
The default static IP address of the matrix is 192.168.1.100. You can also find the matrix’s IP address via Eco Matrix PC Controller software. Software can be downloaded from the PhD solutions website: www.phdsolutions.co Launch the Eco Matrix PC Controller software utility : Then select the “TCP Control Mode”... - Page 14 MXC-4K862-HDTL-KIT USER MANUAL Matrix web GUI page ① Displays the current matrix input and output port status. The “yes” represents connected input sources or output displays “none” represents no connection. ② Power switch. The matrix will turn on when this switch is open. The matrix will switch to standby when this switch is closed ③...
- Page 15 MXC-4K862-HDTL-KIT USER MANUAL EDID page ① Set EDID mode to input source, then click “Set” button. ② Copy EDID from HDMI output port to input source, then click “Set” button. ③ Open EDID file to input source, then click “Set” button. ④...
- Page 16 Net Status button: Press to refresh the current network configuration information to display in the status log window. . ② Displays the network configuration information. Upgrade page ① Open upgrade file to upgrade system firmware. If firmware upgrades are required, they can be obtained from your distributor or from PhD Solutions technical support. www.phdsolutions.co...
-
Page 17: Edid Management
MXC-4K862-HDTL-KIT USER MANUAL 12. EDID Management EDID (Extended Display Identification Data) is an exchange (handshake)of data between a source and a display. The display sends its highest audio and video resolution capabilities to the source. The source then decides on the best compatible audio and video resolution it needs to send to the display. -
Page 18: Matrix Control Protocols & Drivers
MXC-4K862-HDTL-KIT USER MANUAL 4K2K60_420,HD Audio 7.1 4K2K60_444,Stereo Audio 2.0 4K2K60_444,Dolby/DTS 5.1 4K2K60_444,HD Audio 7.1 13.Matrix Control Protocols & Drivers The matrix can be controlled via TCP IP, RS232 or IR. For the technical API document and IR hex files and 3rd party control drivers, these are available for Control4, ELAN, RTI, Crestron etc… Please visit the PhD website www.phdsolutions.co the information is posted on the relevant... - Page 19 MXC-4K862-HDTL-KIT USER MANUAL 8.If the HDMI signal does not have the correct amount of bandwidth (up to 8gbps for CSC 18gbps compression), you will not get a picture. If there is any EMI (electromagnetic interference) this will disrupt the signal. If there is unstable voltage the signal will be disrupted 9.If shielded FTP CAT cables are used, they should be terminated correctly with the correct shielded connectors, if this is not done properly, more EMI interference will be introduced into the cable and performance will be inhibited.
-
Page 20: Application Diagram
MXC-4K862-HDTL-KIT USER MANUAL 15. Application Diagram www.phdsolutions.co... -
Page 21: Troubleshooting
MXC-4K862-HDTL-KIT USER MANUAL 16. Troubleshooting Should you encounter installation difficulties or issues with device communication, the following checklist of common issues and causes should help resolve your issues. If you still continue to experience issues, please contact your place of purchase. NO OR POOR PICTURE QUALITY: •... - Page 22 Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts, or replace it with a new or refurbished product.
- Page 23 Product. Repair or replacement may be made with a new or refurbished product or components, at PHD Solutions’ sole discretion. If the Product or a component incorporated within it is no longer available, PHD Solutions may replace the Product with a similar product of similar function, at PHD Solutions’ sole discretion.
- Page 24 5.LIMITATION OF DAMAGES In addition to the above warranty disclaimers, in no event will PHD Solutions be liable for any consequential, incidental, exemplary, or special damages, including any damages for lost data or lost profits, arising from or relating to this limited warranty or the product, and PHD Solutions’...
- Page 25 (electronic, mechanical, magnetic, optical, chemical, manual, or otherwise) without express written permission and consent from PHD Solutions. © Copyright 2019 PHD Solutions. All Rights Reserved. VER 1.0_ 06062019 MXC-4K862-HDTL-KIT User Manual -June 2019 www.phdsolutions.co Series www.phdsolutions.co...
