SmartPool NC71AU Repair Manual page 3

NC32AU & NC52AU

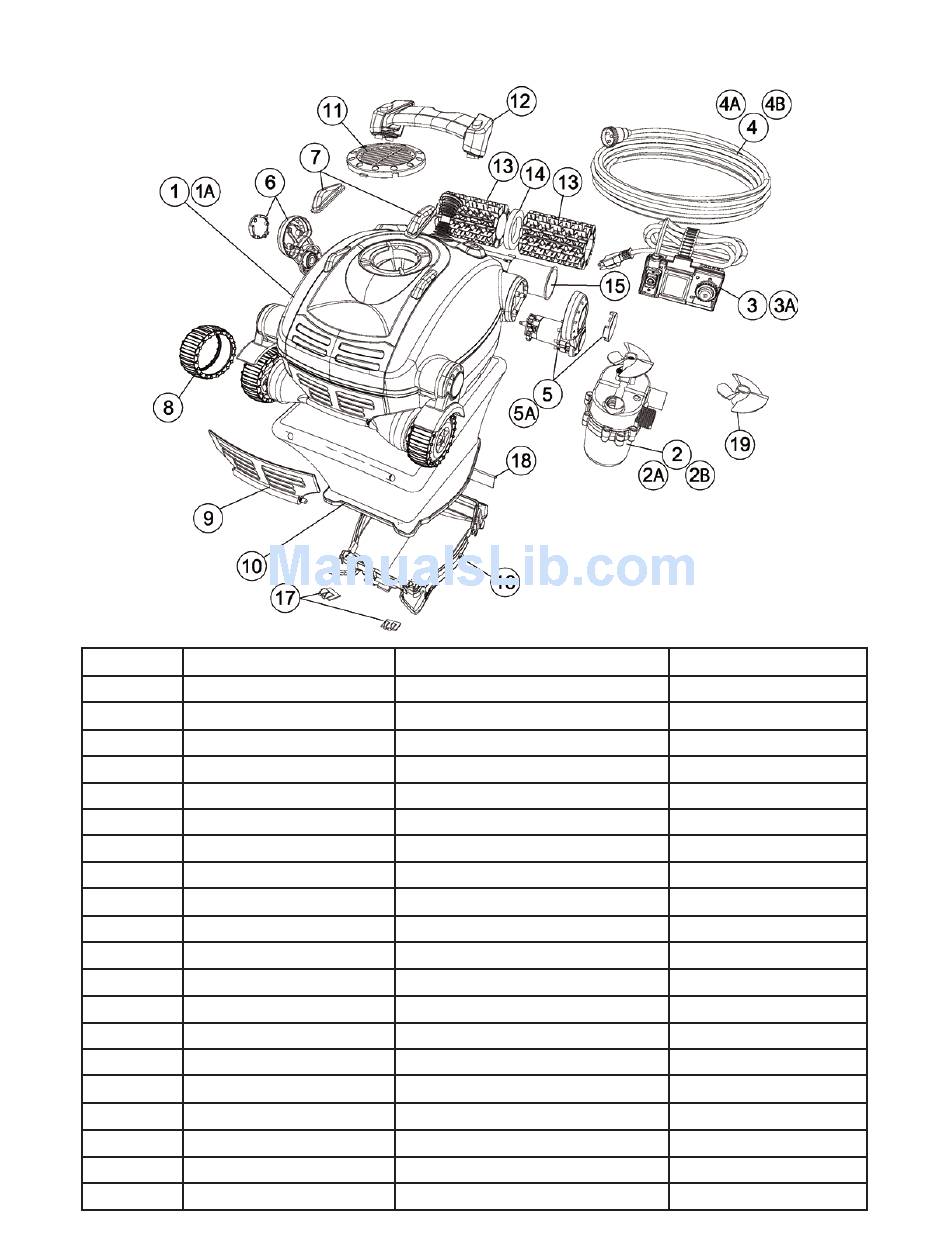

ADMIRAL (NC32AU)
LOCATION PRODUCT #
1 NC1001:02
2 and 2A NC1009:02
3 and 3A NC1013AU
4 NC1012:02
5 NC1006:02
6 NC1010
7 NC1011
8 NC1002
9 NC1005
10 NC1017
11 NC1003
12 NC1008
13 NC1004
14 NC1014
15 NC1007
16 NC1016
17 NC1018
18 NC1019
19 NC1015
CLEANER PARTS
NC1024:02
NC1023AU
ADMIRAL PLUS (NC52AU)
PRODUCT #
3
DESCRIPTION
CHASSIS
PUMP MOTOR
POWER SUPPLY
FLOATING CORD
DRIVE MOTOR
DRIVE TUBE MOUNT
CHASSIS BUMPER
SENSOR WHEEL TIRE
QUICK DRAIN FLAP
FILTER BAG
IMPELLER COVER
HANDLE
DRIVE BRUSH
FOAM RING
DRIVE WHEEL TUBE
BOTTOM LID
FRONT INTAKE
REAR INTAKE
IMPELLER
