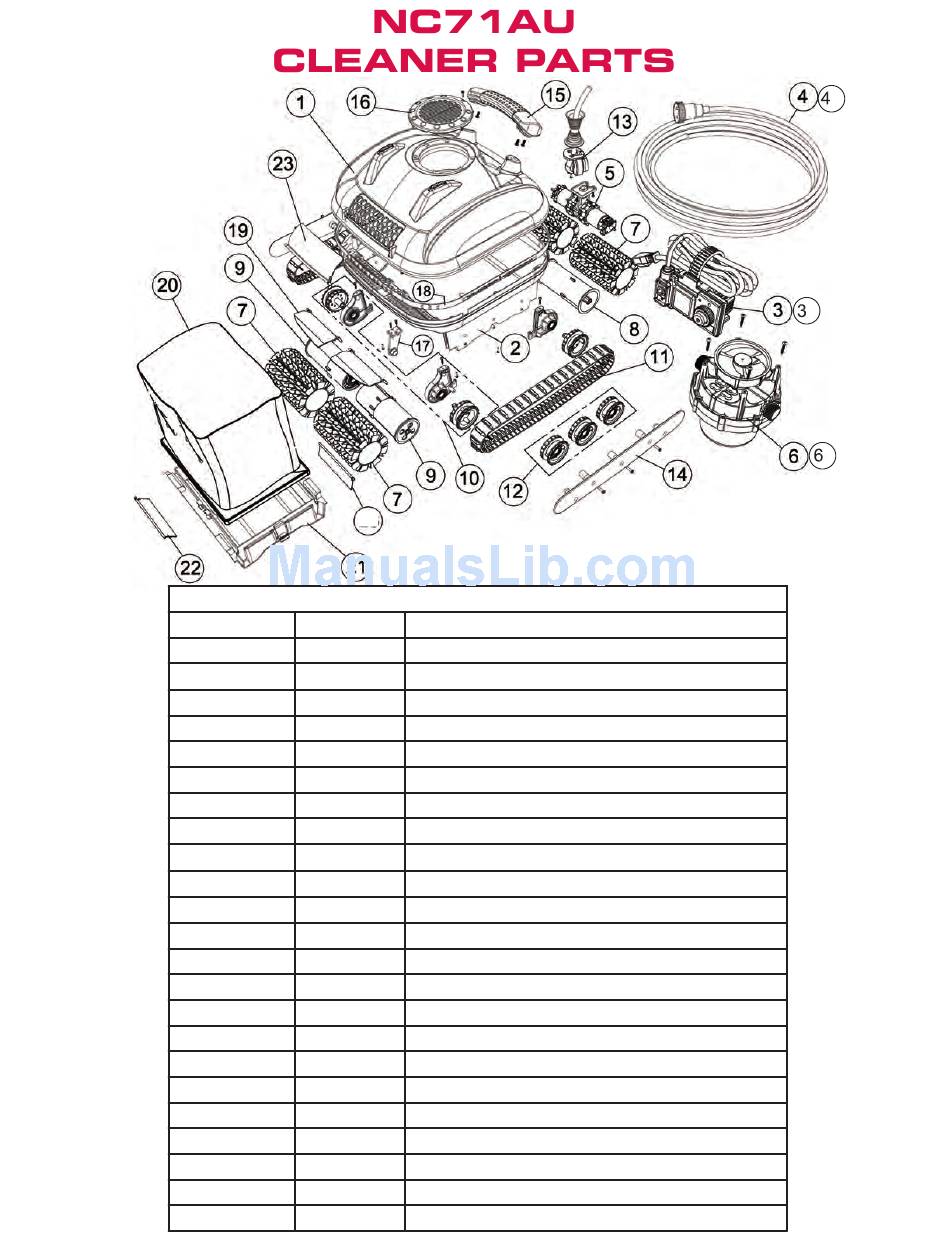

Exploded View And Parts List - SmartPool NC71AU Repair Manual

LOCATION PRODUCT #
1 NC7115
2 NC7106
3 NC7122AU
4 NC7123
5 NC7107
6 NC7113
7 NC1004
8 NC7108
9 NC7112
10 NC7104
11 NC7116
12 NC7117
13 NC7105
14 NC7118
15 NC7109
16 NC7110
17 NC7103
18 NC7119
19 NC7111
20 NC7120
21 NC7102
22 NC7101
23 NC7114
22
ADMIRAL ULTRA (NC71AU)
TOP SHELL
LOWER CHASSIS
POWER SUPPLY
CABLE
DRIVE MOTOR
PUMP MOTOR
DRIVE BRUSH
DRIVE WHEEL TUBE
NON DRIVE WHEEL TUBE
BRUSH MOUNT WITH BEARING (L/R SIDES)
TRACKS (SET OF 2)
TRACK WHEELS (SET OF 6)
CABLE STRAIN RELIEF
TRACK WHEEL COVER (L/R SIDES)
HANDLE
IMPELLER COVER
BRUSH CENTER BRACKET
UPPER/LOWER GASKET SEAL
INNER DRAIN FLAPS
FILTER BAG
BOTTOM LID
BOTTOM LID DOORS
QUICK DRAIN FLAP
2
DESCRIPTION
A
A
A
