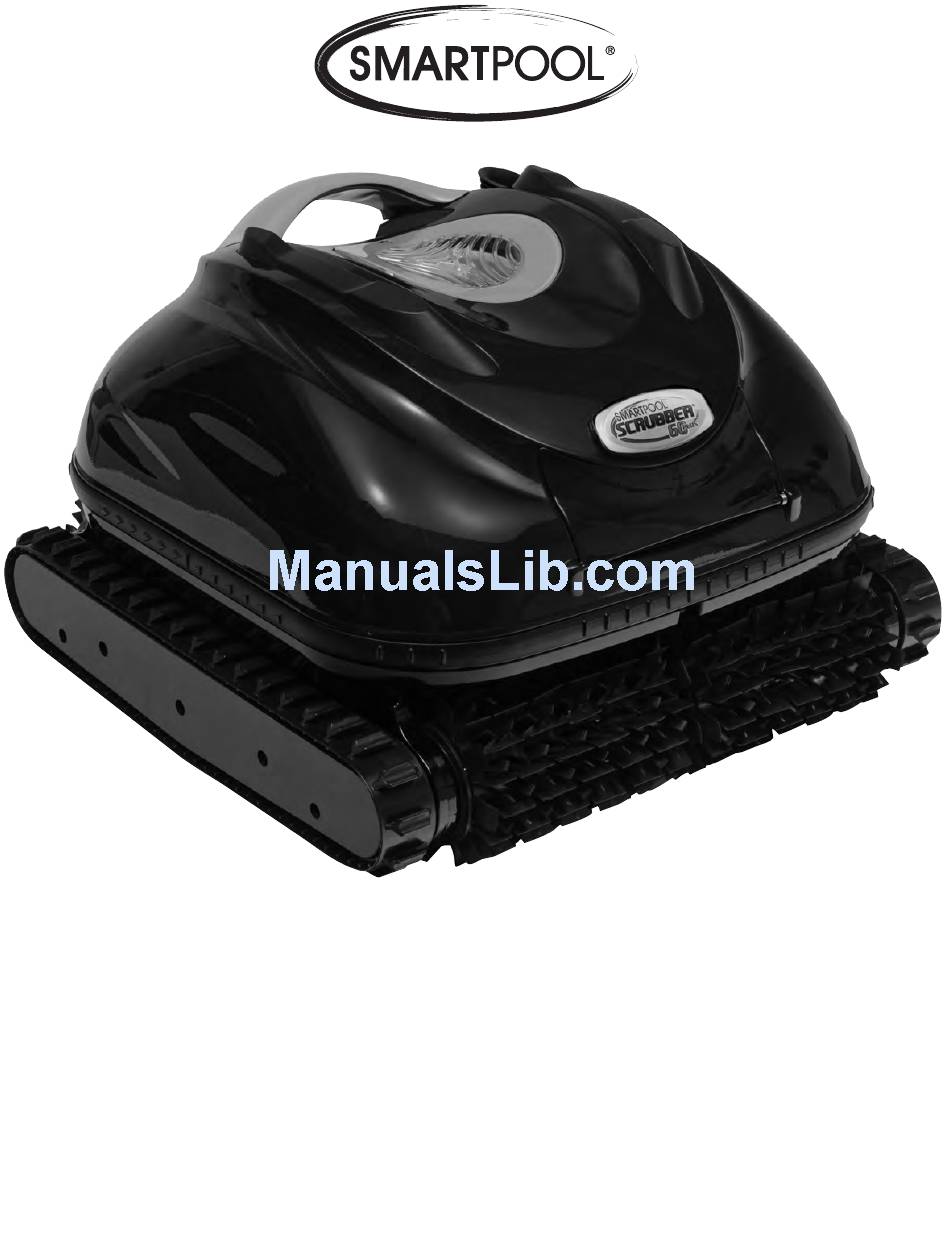

- Page 1 SMARTPOOL SCRUBBER ® 60 PLUS (NC74S) ROBOTIC POOL CLEANER OPERATION MANUAL...
- Page 2 Always remember to turn the power supply “OFF” and unplug it from the power outlet before removing the cleaner from the pool. If your robotic pool cleaner is not working as it should or has been dropped or damaged in any way, contact SmartPool LLC Technical Service before using at 1-732-...
- Page 3 Congratulations on your purchase of the most technologically advanced automatic pool vacuum available today. Your SmartPool cleaner is easy to use and will make maintaining your pool affordable and effortless. Following these simple directions will insure that the cleaner will quickly and efficiently clean your pool today and for many years to come.
- Page 4 Secure the connection by rotating the black collar in a clockwise direction until it is HOLD HOLD hand tight. Insert the Extension Cord Union on the end of the Extension Cord and secure it by hand tightening the black collar on the end of the cable (Figure E3). NOTE: The Extension Cord Union has two distinctly different sockets to prevent an incorrect connection.
- Page 5 INSTALLATION • Walk the cleaner to the furthest point of the pool. • Add 6’/2m of cord to the pool for additional coverage. • Coil up the remaining cable and secure it so that excess cable will not be pulled into the pool (the Velcro strap originally attached to the cable can be used). •...
- Page 6 GENERAL MAINTENANCE Please follow the below procedures to ensure maximum cleaner performance and overall • Grasp the bottom lid firmly, with one hand and use your other hand to grab the filter bag material and pull it away and up from the bottom lid (see Figure 4). component condition.
- Page 7 • To reapply the filter bag, first turn it right side out. Next place the filter bag frame onto the bottom lid being sure that the bag frame seats fully into the channel. Press down on all corners to ensure fit. Check the seat of the filter onto the bottom lid (see Figure 7) FIGURE 9 FIGURE 7 STORING THE CABLE...
- Page 8 Brush Mount with Bearing and Drive Wheel (L & R) NC7414GR Quick Drain Door - Green NC7131 Spring for Quick Drain Door NC3510 Floating Swivel NC1014:02 2" Foam Ring SmartPool reserves the right to revise without notice. SmartPool is not responsible for typographical errors.
- Page 9 IF THERE IS D.E. IN THE POOL, IT COULD CLOG THE BAG. CLEAN THE BAG THOROUGHLY If your cleaner is still not performing properly after all of the troubleshooting has been performed please contact SmartPool, Inc. Technical Service at 1-732-730-9880.
- Page 10 Such patterns can be easily scratched or abraded merely by rubbing the surface with a brush. Pattern ink can also rub off when they come into contact with objects in the pool. SmartPool, Inc. is not responsible for, nor does this...
