Makita CURVED PLANER 1001 Instruction Manual

82 mm (3-1/4") curved planer
Hide thumbs

Advertisement

Quick Links

Curved Planer
Planing w i d t h
82
mm
13~114")
82 mm (3-1/4") MODEL 1001
Planing depth
N o
load speed
Overall length
Net weight
3
mm
1118"l
12,000
370
mm
1,14~1/2"1
6.0
kg
113.2
lbsl
IRPMI
INSTRUCTION MANUAL

Advertisement

loading

  Related Manuals for Makita CURVED PLANER 1001

  Summary of Contents for Makita CURVED PLANER 1001

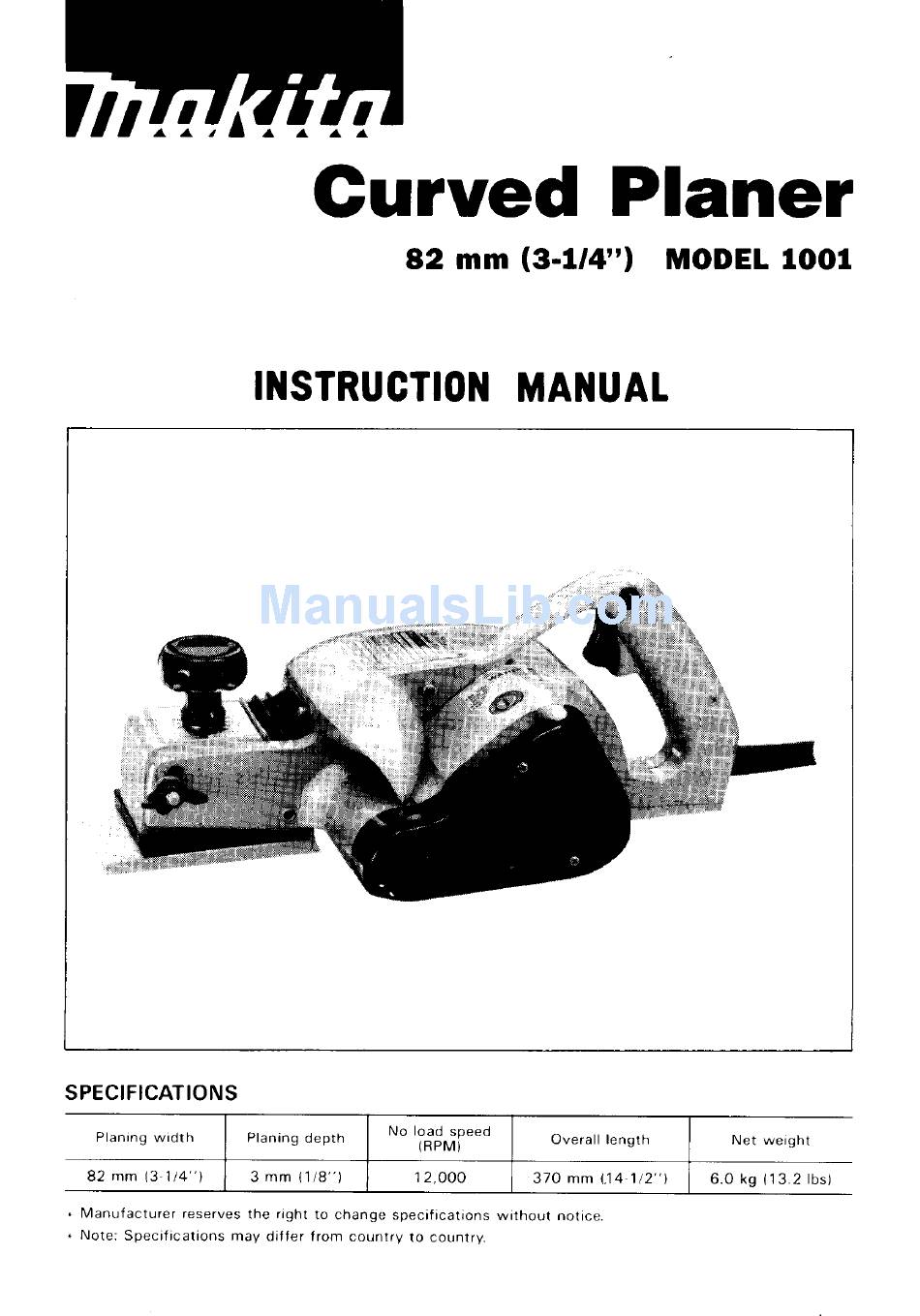

  • Page 1 Curved Planer 82 mm (3-1/4") MODEL 1001 INSTRUCTION MANUAL Planing depth Planing w i d t h load speed Overall length Net weight IRPMI 13~114") 1118"l 12,000 1,14~1/2"1 113.2 lbsl...
  • Page 2: Important Safety Instructions

    WARNING: When using electric tools, basic safety precautions should always be followed t o reduce the risk of fire, electric shock, and personal injury, includ- ing the following: READ ALL INSTRUCTIONS. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries. CONSIDER WORK AREA ENVIRONMENT.
  • Page 3 STAY ALERT. Watch what you are doing, use common sense. Don’t operate tool when you are tired. 18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked t o determine that operate properly and perform its intended function.
  • Page 4: Additional Safety Rules

    Never stick your finger into the chip chute. Chute may jam when cutting damp wood. Clean out chips with a stick. Do not leave the tool running. Operate the tool only when hand-held. 14. When leaving the planer, switch off and set wooden block, that the blades do not contact anything.
  • Page 5 Removing or installing planer blades WARNING : Always be sure that the tool is switched off and unplugged before removing or installing the blades. To remove the blades on the drum, un- screw the three installation bolts with the socket wrench. The drum cover comes off together with the blades.
  • Page 6 Adjusting depth of cut Depth of cut may be adjusted by simply turning the knob on the front Adjusting front base 1. To create a curved surface, loosen the wing nut. For concave planing job, raise the front base; for ing job, lower the front base.
  • Page 7 The speed and depth of cut determine the kind of finish. The power planer keeps cutting speed that will not result in jamming by chips. For rough cutting, the depth of cut can be increased, while for you should reduce the depth of cut and advance the tool more slowly.
  • Page 8 NOTE *When beginning the planing of a flat workpiece to obtain eventually a convex shape, first take down both ends of the workpiece, gradually planing until the ultimate convex shape is achieved. *When beginning the planing of a flat workpiece to obtain eventually a concave shape, first take down the middle of the workpiece, gradually planing until the ultimate concave shape...
  • Page 9 Sharpening planer blades Always keep your blades sharp for performance possible. holder to remove nicks and produce edge. First, loosen the two wing nuts on the holder and insert the blades (A) and (B), that they contact the sides ( C ) and (D).
  • Page 10: Maintenance

    To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Limit mark...
  • Page 11 ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present The accessories or attachments should be used only in the proper and intended manner.
  • Page 12 26-89 82 mm (3-1/4") CURVED PLANER Model 1001 Note The switch, noise suppressor and other part configuratlons may differ from country to country...
  • Page 13 MODEL 1 0 0 1 DESCRIPTION MACHINE Pan Head Screw M 5 x 2 5 IWith Washer1 Bracket Ball Bearing 6200LLB Fan 80 ARMATURE ASSEMBLY !With lfem 3 Flaf Washer 1 2 Ball Bearing 6201LLB Pan Head Screw M 5 x 6 0 IWifh Washer) FIELD ASSEMBLY Rubber Pin 6 Rubber Pin 4...
  • Page 16 Makita Corporation 3-11 -8, Sumiyoshi-cho, Anjo, Aichi Japan PRINTED IN JAPAN 883000A0 I991 - 1 0...
