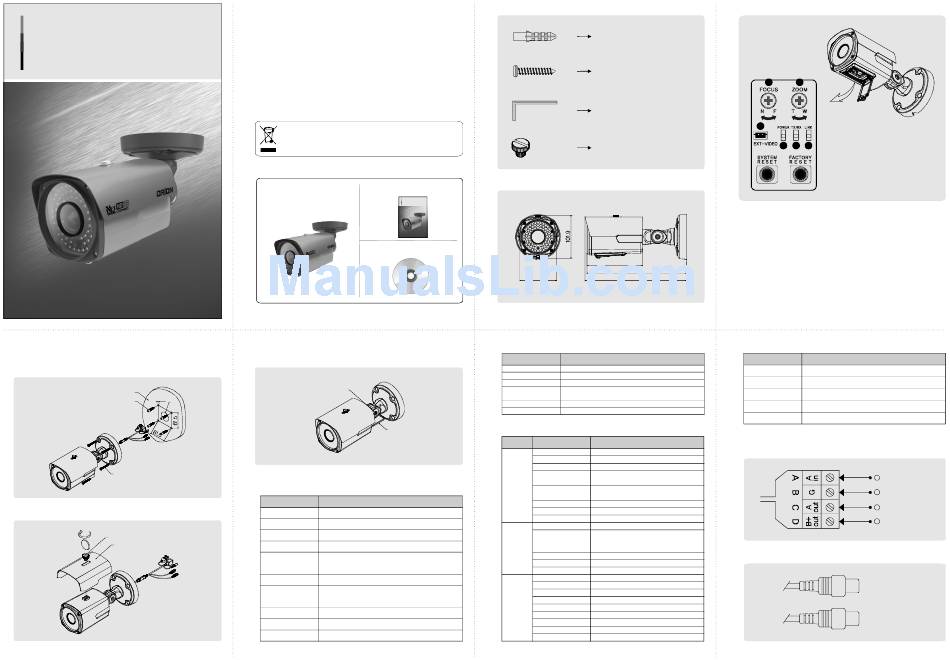

Orion OR-1503IPH Quick Manual

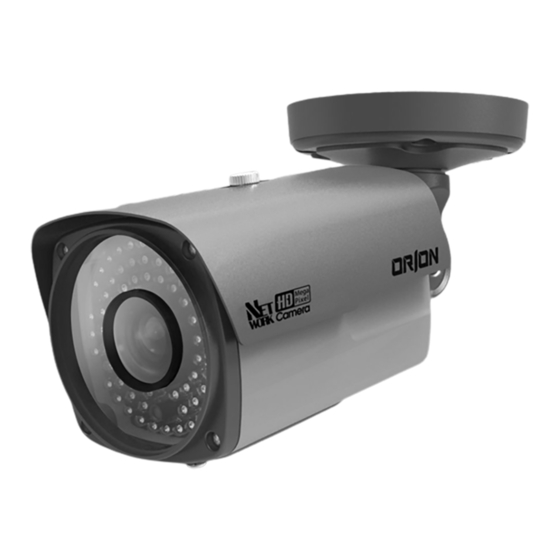

3 MEGA PIXEL
NETWORK IR PIPE CAMERA
OR-1503IPH
QUICK GUIDE
1.6 How To Install
1. Make a hole of Ø25mm in diameter for passing cable.
2. Drill four holes on the wall or ceiling and insert the anchors.
3. Arrange the cables and fix the screws.
WALL
Ø6 Ø25
ANCHOR 6x30, 4EA
SCREW Tp1 4x35, 4EA
4. Attach the sunvisor and fix the sunvisor fixing bolt.
BOL T
SUNVISOR
5
Chapter 1. Install and Specification
1.1 Safety Cautions
1) This camera may be damaged by electrical and physical shock.
Use regulated 12V DC, 1A power supply. Do not throw or drop it onto floor.
2) This camera can be used outdoor. But if it is used outdoor, it is required to use
the sunvisor and avoid direct light from the sun. Do not use it under water.
3) In case it is installed at high location, be sure to mount securely to prevent the
unit from falling below.
4) In case the unit fails, DO NOT try to disassemble the product.
Contact or consult the distributor or an authorized technician for after-sales
service.
Warranty void for the product disassembled without an authorization from the
distributor or an authorized technician.
5) All responsibility by using this unit is on the user.
If the product is to be put out of operation definitively, take it to a
local recycling plant for a disposal which is not harmful to the
environment.
1.2 Package
Camera Quick Guide
3 MEGA PIXEL
NETWORK IR PIPE CAMERA
OR-1503IPH
QUICK GUIDE
Software & User Manual CD
2
5. Loosen the bolt by using the 3mm wrench included.
6. Face the direction of the camera to monitor.
7. Tighten the bolt to complete adjustment.
BOLT
WRENCH
1.7 Specification
1.7.1 Camera Specification
Item Specification
Model No. OR-1503IPH
Type Megapixel network Day&Night IR camera
Image Sensor 1/2.8" SONY PROGRESSIVE SCAN CMOS(3.1 Mega Pixels)
Effective Pixels 2096(H) x 1561(V)
2048x1536 / 1600x1200/ 1920x1080 / 1280x10240 /
Resolution
1280x960 / 1280x720 / 1024x768 / 640x480 / 320x240
Scanning System
Progressive Scan
LED OFF : 0.01 Lux(Sense up Auto X4)
Min.Illumination
LED ON : 0 Lux(60M Range)
Alarm Input/Output Input : 1, Output : 1
IR LED 70PCS
Lens Vari-focal auto iris megapixel lens
6
1.3 Accessories for installation
ANCHOR 6x30 4EA
SCREW 4x35 TP1 BIND SUS, 4EA
HEXAGON WRENCH 3.0mm
L TYPE, 1EA
BOLT 1/4"-20UNC L=6, 1EA
1.4 Dimension
131.3
236
86.4 241.1
3
1.7.2 Camera Function
Function Specification
Privacy Zone ON / OFF(6 Programmable Zones)
Day&Night Auto / Night / Day
WDR WDR(1 ~ 5), (Back Light, Front Light)
Auto : 1/15 ~ 1/9,000(NTSC), 1/12.5 ~ 1/8,000(PAL)
Electronic Shutter
Suppress Rolling, Manual
Sense Up Auto(1 ~ 14)
White Balance Auto / Indoor / Outdoor / Fluorescent / User
1.7.3 Network Specification
Classification Item Specification
OS
Embedded Linux
Network Interface RJ45 10/100BaseT, Ethernet
Setting By web browser
Leased Line, Cable Modem, Support Dynamic
Network Support
IP and Static IP, ADSL usable under Router
Summary
TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP,
Supported Protocol
HTTP, DHCP, FTP, SMTP, DNS, DDNS
Security
User authentication
PC OS WINDOWS XP, WINDOWS VISTA, WINDOWS 7
Web Browser IE 7.0 or higher
Compression
H.264, MPEG-4, MJPEG
2048x1536 / 1600x1200/ 1920x1080 /
Resolution 1280x10240 / 1280x960 / 1280x720 /
1024x768 / 640x480 / 320x240
Compression Rate 200 : 1(Typical)
Frame Rate Max. 15fps(@2048x1536)
Bit Rate 64 ~ 12000kbps
Simultaneous Access
Max. 10 users
Video Recording Recording in client PC with CMS or FTP Server
Motion Detection Support
Privacy Zone Support
Function OSD Support
Alarm Input/Output Support
Dynamic IP Support
IP Router Support
DDNS Support
7
1.5 Camera setup(Control board)
1 2
3
4 5 6
*Focus/Zoom adjustment direction
7 8
1. Unfasten the screw of the bottom door
2. Adjust the Focus and Zoom trimmers
3. Tighten the screw of the bottom door
①FOCUS, ②ZOOM : Use a '+' type driver for adjusting focus and zoom.
(In case of operation Focus/Zoom, don't put stress excessively.)
③EXT. VIDEO : Extra video output terminal for installation.
Plug your test monitor in hear. The cable is option
④POWER : Light would turn on when power is on.
⑤Rx/Tx :
Light would turn on when the user connect by the network.
⑥LINK : Light would turn on when the LAN cable is connected to the unit.
⑦SYSTEM RESET : Press the button to reset when the unit is not working normally.
⑧FACTORY RESET : Turn on the power and wait 2 minutes. Press the button
for 3 seconds to set the ID and Passwords for administration and IP setting
values to the Factory default.
[Reference] Please refer to Video Check in Chapter 2 and Chapter 5. System Setting
regarding default value.(Refer to the manual in the CD.)
4
1.7.4 Electric Specification
Classification Specification
Power Supply Regulated 12V DC, PoE(Power over Ethernet) - IEEE802.3af
Current Consumption
Max. 1A(DC 12V) IR LED ON
Operation Temp. -45℃ ~ 50℃
Dimension 86.4(W) x 101.9(H) x 131.3(D)mm
Weight Approx. 1kg
1.7.5 Alarm Input/Output
Alarm-in
A
B GND
C Alarm-out
D DC 12V/100mA out
1.7.6 Audio Input/Output
MIC(Red)
LINE OUT(Black)
8
