Orion SC201 Quick Installation Manual

PROFESSIONAL SURVEILLANCE & SECURITY SYSTEM

4 PC/MaC Configuration

01
04
Install the software from the CD that is
Add the camera
provided or from "www.orionlive.com.au"
( UID and password
website.
are located under
the camera)
02
Register an account by entering your E-mail
address and unique password.
Tick the Wi-Fi option and enter the Wi-Fi router
information to access the camera wirelessly
Search connected camera on local network
03
Login with the details you have registered.
05
Double click on the added camera to view
live video.
SECURITY WITH VISION
WI-FI NETWORK CAMERA SC201
PROFESSIONAL SURVEILLANCE & SECURITY SYSTEM
Click settings for more camera options.
Add the camera manually
06
Change your camera password.
The default password is for setup purposes
only; use a mix of UPPERCASE, lowercase and
numbers for the password.
without the ethernet cable.
07
(Optional) Configure camera Wi-Fi settings.
OR
To access the camera wirelessly, go to camera
settings and enter your Wi-Fi details. After
successful configuration, you can unplug
Ethernet connection and relocate the camera.
ReSeT TO fACTORy SeTTINgS
Camera
Power
1. Turn ON the camera and wait until it
finishes the start-up routine.
2. Now press and hold the WPS/reset button
for 5 seconds and release.
3. The camera is now set to factory settings.
wPs/reset
Button
www.orionlive.com.au

5 Warranty

Arlec guarantees this product in accordance with the Australian
Consumer Law.
Arlec also warrants to the original first purchaser of this product
("you") from a retailer that this product will be free of defects
in materials and workmanship for a period of 12 months from
the date of purchase; provided the product is not used other
than for the purpose, or in a manner not within the scope of the
recommendations and limitations, specified by Arlec, is new and not
damaged at the time of purchase, has not been subjected to abuse,
misuse, neglect or damage, has not been modified or repaired
without the approval of Arlec and has not been used for commercial
purposes ("Warranty").
If you wish to claim on the Warranty, you must, at your own expense,
return the product, and provide proof of original purchase and your
name, address and telephone number, to Arlec at the address below
or the retailer from whom you originally purchased the product within
12 months from the date of purchase.
Arlec will (or authorise the retailer to) assess any claim you may make
on the Warranty in the above manner and if, in Arlec's reasonable
opinion, the Warranty applies, Arlec will at its own option and
expense (or authorise the retailer to) replace the product with the
same or similar product or repair the product and return it to you
or refund the price you paid for the product. Arlec will bear its
own expenses of doing those things, and you must bear any other
expenses of claiming on the Warranty.
The Warranty is in addition to other rights and remedies you
may have under a law in relation to the product to which the
Warranty relates.
Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
IMPORTANT
BEFORE RETURNING THIS
PRODUCT TO THE RETAILER
wI-FI ssID
PLEASE CONTACT
IF YOU HAVE ANY CONCERNS OR
PROBLEMS WITH THIS PRODUCT
Customer Service Phone: (03) 9982 5111
(Monday to Friday 8.30am – 5.30pm EST)
Email: customerservice@orionlive.com.au
For further information visit www.orionlive.com.au
Arlec Australia Pty. Ltd. ACN 009 322 105
("Arlec") gives the Warranty.
Arlec's telephone number, address and email address are:
Customer Service: (03) 9982 5111
New Zealand Toll Free: 0800 003 329
Building 3, 31 – 41 Joseph Street, Blackburn North, Victoria, 3130
Blackburn North LPO, P.O. Box 1065, Blackburn North, 3130
Email: custservice@arlec.com.au
CPIN002933/2
WI-FI NETWORK CAMERA SC201 SECURITY WITH VISION
PROFESSIONAL SURVEILLANCE & SECURITY SYSTEM

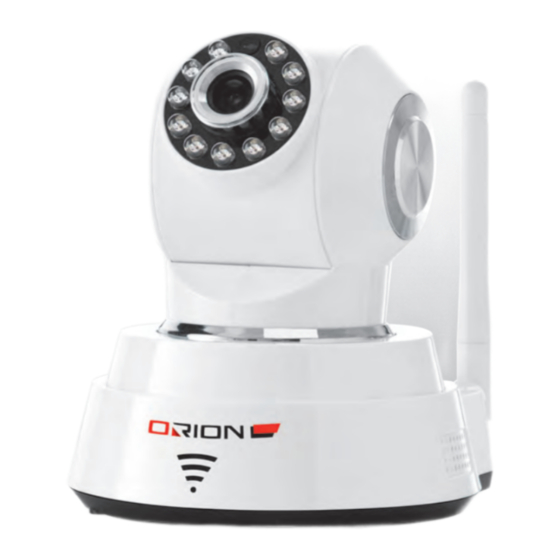

Wi-Fi NETWORK CAMERA

quICk InStallatIon guIde

REMOTE
MONITORING &
CONTROL FROM
SMARTPHONES,
TABLETS & PCs
PAN & TILT
MOTION CONTROL
AUDIO NIGHT HIGH MICROPHONE SD CARD
& MOTION VISION DEFINITION & SPEAKER STORAGE
INSTRUCTIONS FOR USE
Important! pleaSe read theSe InStruCtIonS CareFully.
NOTE: SC201 camera requires network device (e.g. wireless/non-wireless router, network switch etc. that is connected to internet or internal
network for setup and use. Network device is not supplied with this kit.
SC201 camera might experience network, motion command and live transmission delay issues. This is normal, due to the connected
network, 3G/4G mobile network, server overflow or internet upstream speed, download speed and video resolution. To reduce delay, it is
recommended to reduce the video quality, or contact your mobile/network service provider.
SECURITY WITH VISION
WI-FI NETWORK CAMERA SC201
SC201
PAN Wi-Fi SIMPLE
& TILT CONNECTIVITY SETUP
3
www.orionlive.com.au
SECURITY WITH VISION
