Summary of Contents for Orion SMART PAN

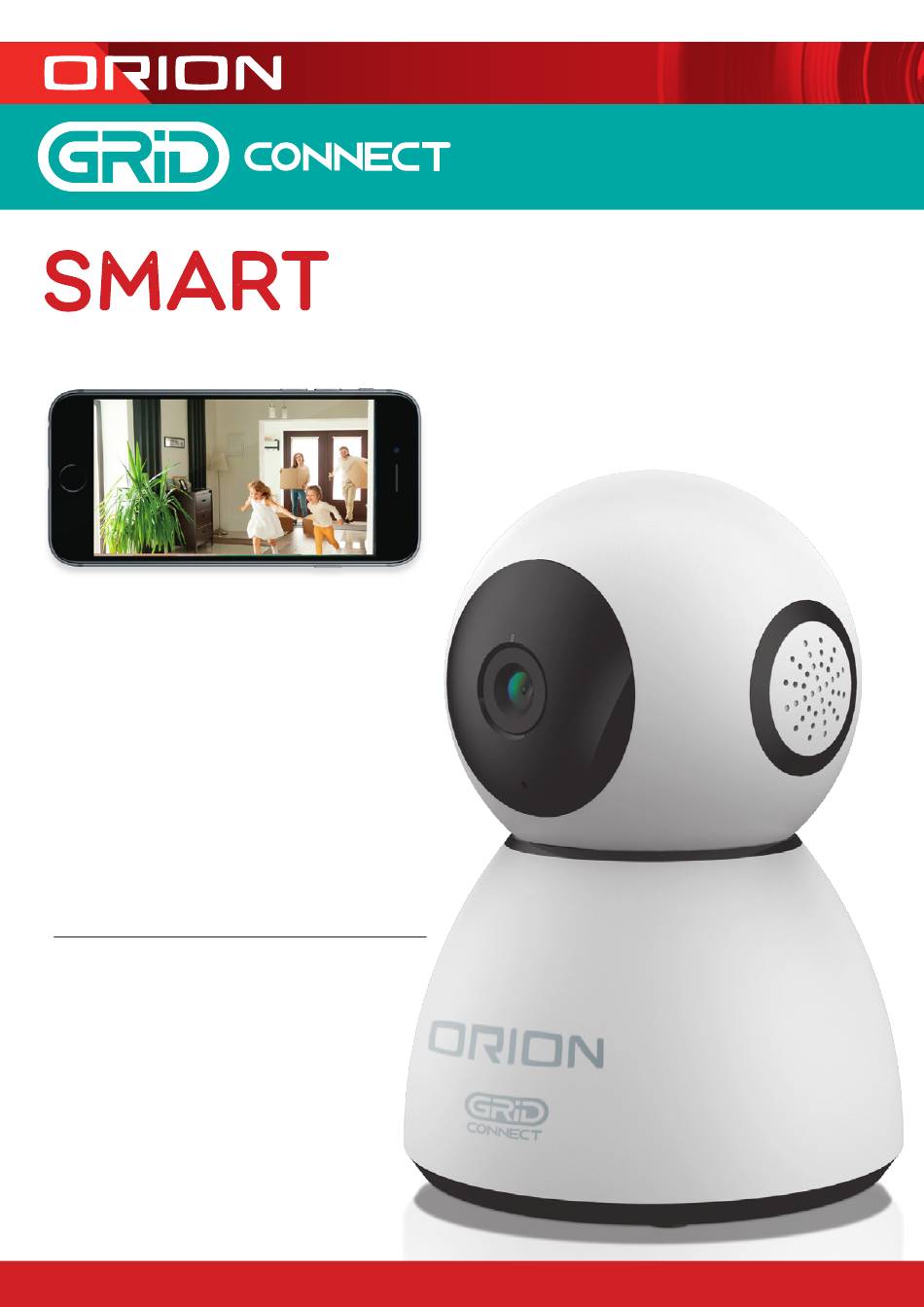

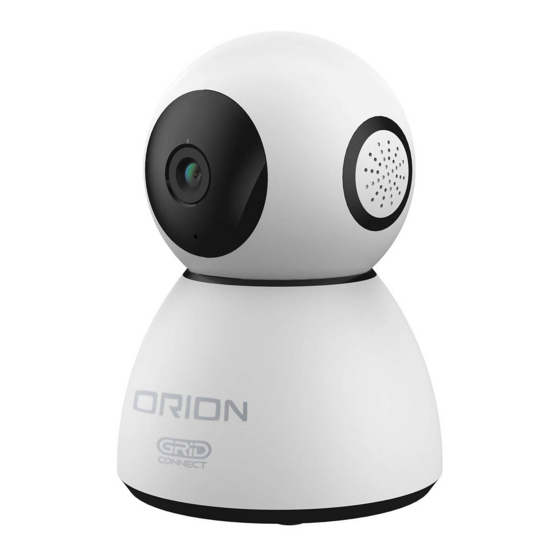

- Page 1 SM ART PAN & TILT SECURITY CAMERA AUTOMATICALLY DETECTS & TRACKS MOTION SEE & RECORD EVERYTHING THAT HAPPENS USING YOUR SMARTPHONE QUICK START GUIDE IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY SC009HA...
- Page 2 Use the reset pin to press 2 CONTENTS and hold for 5 seconds to reboot and clear all settings to factory 1 x Smart Pan & Tilt Security Camera defaults. This will allow 1 x Power Adaptor you to connect with 1 x USB Cable...
-
Page 3: Download The App
4 DOWNLOAD THE APP NEW ACCOUNT LOG IN SETUP Download and install GRID CONNECT from Play store (Android) or App store (iOS). Scan & download the GRID Connect App for free... -
Page 4: Install The App
5 INSTALL THE APP GRID CONNECT Open the App. If you are a new user, tap create new account and follow the prompts to complete account setup. create new account Note: You must agree with the Privacy Policy to be able to use the App. If you already have an existing account, just tap login to account and enter your login details to continue. -
Page 5: Adding A Location
6 ADDING A LOCATION On the Add location setup page, you can edit Home name, set up Home location Select rooms room. This will help you manage your GRID devices and assist you in customising and scheduling the time and order of one or multiple devices, depending on your home living needs. -
Page 6: Pairing Your Device
7.0 PAIRING YOUR DEVICE Power on your smart camera by using the supplied adaptor and USB cable. It should take approximately 10 seconds to startup and will indicate as such with a solid red light. You will hear a welcome sound. Confirm the status light is red and rapidly blinking 12:30 pairing instructions... - Page 7 7.1 PAIRING YOUR DEVICE confirm Enter the Wi-Fi password and tap confirm to proceed. If needed, you can tap change network to switch to another suitable Wi-Fi network for your camera.
- Page 8 7.2 PAIRING YOUR DEVICE continue Press to scan QR code using your camera. Hold 15cm away from your mobile screen. Press heard the beep after you scan hear a sound from your camera. The status light should be blue, code and blinking (refer to trouble on screen shooting guide on page 22 if you...
- Page 9 7.3 PAIRING YOUR DEVICE Once the pairing process is device complete a page showing added successfully will appear. You may choose to edit the device name or assign the device to a dedicated room before tapping done to finish the pairing process. Once your camera is paired to your Wi-Fi network, your camera can be viewed at anytime from your...
-
Page 10: Operating Your Camera
8 OPERATING YOUR CAMERA Once your camera is paired to your Wi-Fi network, you can view your camera at anytime from your smartphone as long as there is internet access. Live Screen Playback Screen Access Settings Back to Device including share Screen device, motion Smart Camera SC009HA... -
Page 11: Installation
9 INSTALLATION Before choosing your preferred location, check the Wi-Fi strength/coverage to ensure the camera is fully functional. CEILING MOUNT 1. Use the mounting stand as a template to mark the screw positions on the ceiling. Drill holes into the ceiling and push wall plugs into the holes. 2. -
Page 12: Troubleshooting
10 TROUBLE SHOOTING What can I do if 1. Check your mobile device is connected to a 2.4GHz Do our current No - GRID products currently do not support 5GHz I fail to pair my Wi-Fi network, refer to below question for how to GRID products wireless connection GRID Connect... - Page 13 • WARRANTY Arlec guarantees this product in accordance with the Australian Consumer Law and all other applicable Australian and New Zealand laws that are unable to be excluded. Arlec also warrants to the original first purchaser of this product (“you”) from a retailer with which this document is given that this product will be free of defects in materials and workmanship for a period of 12 months from the date of purchase;...
