Pentair Technical Products
2100 Ho man Way
Anoka, MN 55303
+1-763-323-8200
+1-763-576-3200
www.McLeanCoolingTech.com
Rev. O
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-5803-Hoffman-T200216G100-T-Series-AC-115V-2000-BTU-Outdoor.aspx

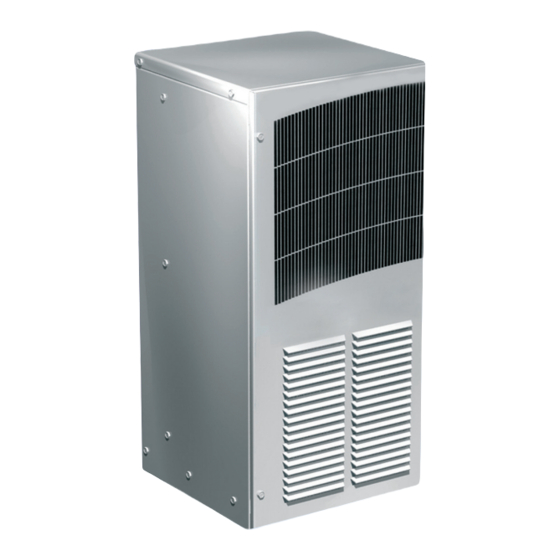

INSTRUCTION MANUAL
T-Series™
Air Conditioner
T20
© 2010 Pentair Technical Products
Protecting Electronics.
Exceeding Expectations.™
P/N 10-1008-196
87976494
Advertisement
Table of Contents
Related Manuals for McLean T20
Summary of Contents for McLean T20
-
Page 1: Air Conditioner
INSTRUCTION MANUAL T-Series™ Air Conditioner Protecting Electronics. Exceeding Expectations.™ Pentair Technical Products 2100 Ho man Way Anoka, MN 55303 +1-763-323-8200 +1-763-576-3200 www.McLeanCoolingTech.com Rev. O © 2010 Pentair Technical Products P/N 10-1008-196 87976494 Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com http://www.remotesiteproducts.com/p-5803-Hoffman-T200216G100-T-Series-AC-115V-2000-BTU-Outdoor.aspx... -
Page 2: Table Of Contents
LIMITATION OF LIABILITY ....................................15 NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact McLean Cooling Technology if further information is required. -
Page 3: Receiving The Air Conditioner
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to McLean Cooling Technology -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Inspect the air conditioner and verify correct functionality before mounting the air conditioner. See HANDLING AND TESTING THE AIR CONDITIONER on page 3. 2. Determine if the unit is to be surface or recess mounted. Using the appropriate cutout dimensions, see Mounting Cutout Dimensions on page 5 of this manual, prepare the enclosure opening for either surface or recess mounting. -
Page 5: Mounting Cutout Dimensions
Mounting Cutout Dimensions External Mounting Internal Mounting CUTOUT INSTRUCTION (As viewed from outside of enclosure) NOTE: Dashed lines represent air conditioner. Components List Part Number Part Description 115V 230V Impeller, Condenser 10-1091-121 10-1091-122 Fan, Evaporator 12-1012-01 12-1012-02 Capacitor, Condenser Impeller S-1353-1 52-6084-02 Coil, Condenser... -
Page 6: Wire Diagrams
Wire Diagrams Without Heat - 6 - © 2010 Pentair Technical Products 87976494 Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com http://www.remotesiteproducts.com/p-5803-Hoffman-T200216G100-T-Series-AC-115V-2000-BTU-Outdoor.aspx... -
Page 7: With Heat
With Heat 87976494 © 2010 Pentair Technical Products - 7 - Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com http://www.remotesiteproducts.com/p-5803-Hoffman-T200216G100-T-Series-AC-115V-2000-BTU-Outdoor.aspx... -
Page 8: Schematic
Schematic SUPPRESSOR (OPTIONAL) ENCLOSURE FAN COMPRESSOR HEATER (OPTIONAL) HEATING THERMOSTAT AND HEATER (OPTIONAL) COOLING THERMOSTAT RUN CAPACITOR CONDENSER IMPELLER WITH OPTIONAL HEAD PRESSURE CONTROL START CAPACITOR (230V ONLY) COMPRESSOR AND OVERLOAD - 8 - © 2010 Pentair Technical Products 87976494 Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com http://www.remotesiteproducts.com/p-5803-Hoffman-T200216G100-T-Series-AC-115V-2000-BTU-Outdoor.aspx... -
Page 9: Temperature Control
TEMPERATURE CONTROL The electromechanical thermostat is factory preset to 75 F/23 C. To change the temperature setting, remove the nylon plug from the front face of the unit. Use a standard screwdriver to adjust thermostat. For cooler temperatures turn clockwise, for warmer temperatures turn counterclockwise. Setpoint differential is 6 F. Units With heat With a dial setting of 75 F, heat will turn on @ 70 F and turn off @ 75 F. -
Page 10: Maintenance
MAINTENANCE Compressor The compressor requires no maintenance. It is hermetically sealed, properly lubricated at the factory and should provide years of satisfactory operating service. Should the refrigerant charge be lost, recharging ports (access fittings) on the suction and discharge sides of the compressor are provided for recharging and/or checking suction and discharge pressures. -
Page 11: Condenser And Evaporator Air Movers
Condenser and Evaporator Air Movers Fan and impeller motors require no maintenance. All bearings, shafts, etc. are lubricated during manufacturing for the life of the motor. CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. -
Page 12: Trouble Shooting
TROUBLE SHOOTING Basic Air Conditioning Trouble Shooting Check List 1. Check manufacturer’s nameplate located on the unit for correct power supply. 2. Turn on power to the unit. The evaporator (Enclosure or “COLD” air) fan should come on. Is there airflow? YES, proceed to step 3. -
Page 13: Symptoms And Possible Causes
Symptoms and Possible Causes: SYMPTOM POSSIBLE CAUSE Clogged fins on coil(s) Dirty filter Impellers/fans not running Unit won’t cool Compressor not running Compressor runs, but has bad valves Loss of refrigerant Low line voltage at start. Should be +/-10% rated voltage. Compressor motor stuck Compressor tries to start but won’t run Bad contactor... -
Page 14: Warranty
WARRANTY Pentair Technical Products warrants that the Goods manufactured by Pentair Technical Products will be free from defects in material and workmanship for a period of one (1) year from the date of shipment by Pentair Technical Products, subject to the following conditions and exclusions: A. -
Page 15: Limitation Of Liability
1. Complete Model Number, Serial Number and description of damaged unit being returned. 2. Original Buyer Purchase Order number and date product was received by Buyer. 3. Quantity to be returned and a brief description of failure for each unit, if different. 4. - Page 16 Protecting Electronics. Exceeding Expectations.™ Pentair Technical Products 2100 Ho man Way Anoka, MN 55303 +1-763-323-8200 +1-763-576-3200 www.McLeanCoolingTech.com Rev. O © 2010 Pentair Technical Products P/N 10-1008-196 87976494 Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com http://www.remotesiteproducts.com/p-5803-Hoffman-T200216G100-T-Series-AC-115V-2000-BTU-Outdoor.aspx...
