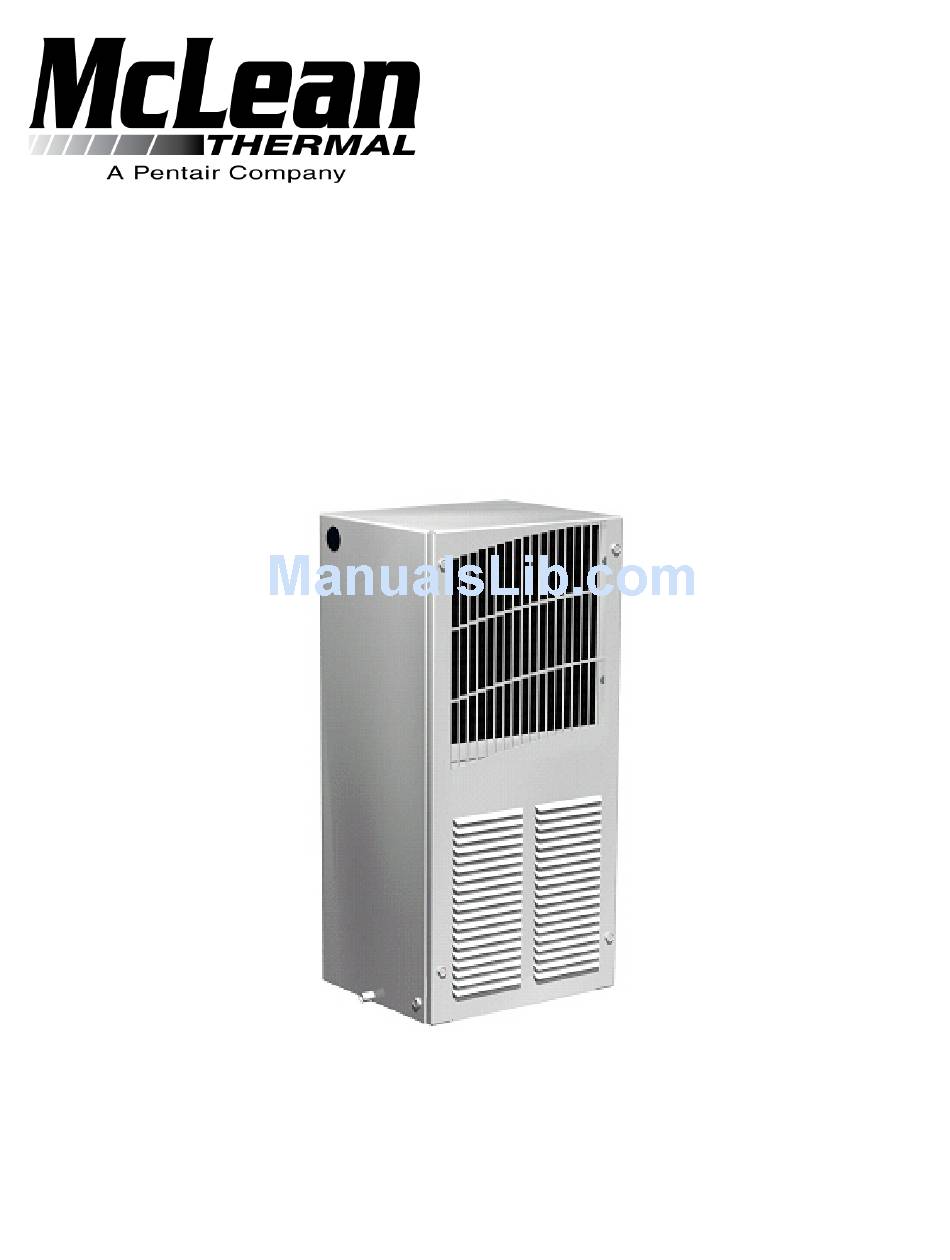

- Page 1 INSTRUCTION MANUAL FOR: T15 AIR CONDITIONER McLean Thermal 11611 Business Park Blvd. N Champlin, MN 55316 Tel: 763-323-8200 Fax: 763-576-3200 www.mcleanthermal.com 87922502...
-
Page 2: Table Of Contents
Damage should be brought to the attention of the delivering carrier -- NOT to McLean Thermal -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 3: Installation
Operate the air conditioner for five (5) to ten (10) minutes. No excessive noise or vibration should be evident during this run period. The condenser blower (ambient air), the evaporator blower (enclosure air), and the compressor should be running. Condenser air temperatures should be warmer than normal room temperatures within a few minutes. -
Page 4: Design Data, Model Drawing
T15 Series 800-900 BTU/Hr. (235-264 Watts) H x W x D: 15.75" (400) x 7.50" (191) x 6.30" (160) Full BTU/Hr @ Shipping Load Max Amb Amb Temp Weight Model Voltage Amps Phase Temp Lbs/Kgs T15-0116-GXXX 131/55 27/12.3 T15-0116-GXXX 125/52 27/12.3 T15-0126-GXXX 131/55... -
Page 5: Mounting Instructions
T15 Mounting Cutout Dimensions T15 Series Components List Part Number Part Description 115V 230V Fan, Condenser 12-1012-01 12-1012-02 Fan, Evaporator 13-1015-01 13-1015-02 Capacitor, Compressor 52-6032-09 52-6032-10 Coil, Condenser 15-1001-02 15-1001-02 Coil, Condenser, Coated 15-1001-01 15-1001-01 Coil, Evaporator 15-1001-03 15-1001-03 Compressor 10-1016-82 10-1026-101 Filter, Air, Reusable... -
Page 6: Wire Diagrams
T15 Wire Diagram T15 Schematic 10-1008-194 Rev. 2 Page 5... -
Page 7: Temperature Control
TEMPERATURE CONTROL The electromechanical thermostat is factory preset to 75 F/23 C. To change the temperature setting, remove the nylon plug from the front face of the unit. Use a standard screwdriver to adjust thermostat. For cooler temperatures turn clockwise, for warmer temperatures turn counterclockwise. -
Page 8: Refrigerant Loss
Fan motors require no maintenance. All bearings, shafts, etc. are lubricated during manufacturing for the life of the fan. Caution: Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, fans and motors, etc. Contact McLean Thermal for special recommendations. Refrigerant Loss Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. -
Page 9: Trouble Shooting
TROUBLE SHOOTING Basic Air Conditioning Trouble Shooting Check List Check manufacturer’s nameplate located on the unit for correct power supply. Turn the power to the unit on. The evaporator (Enclosure or “COLD” air) fan should come on. Is there airflow? YES, proceed to step # 3. - Page 10 Getting water in enclosure * Drain plugged * Drain tube kinked * Enclosure not sealed (allowing humidity in) * Mounting gasket damaged For additional technical information (i.e., amp draw, pressures, temperatures) contact McLean Thermal at 763-323-8200. 10-1008-194 Rev. 2 Page 9...
-
Page 11: Mclean Thermal Warranty
Should any part prove defective within the above warranty period, the customer may choose to return the defective product that is under warranty to McLean Thermal for repair at no charge or the customer has the option to repair the defective products at his own expense and McLean Thermal will supply repair parts at no charge providing the defective part is returned and found to have failed under warranty.
