Summary of Contents for McLean ProAir CR29

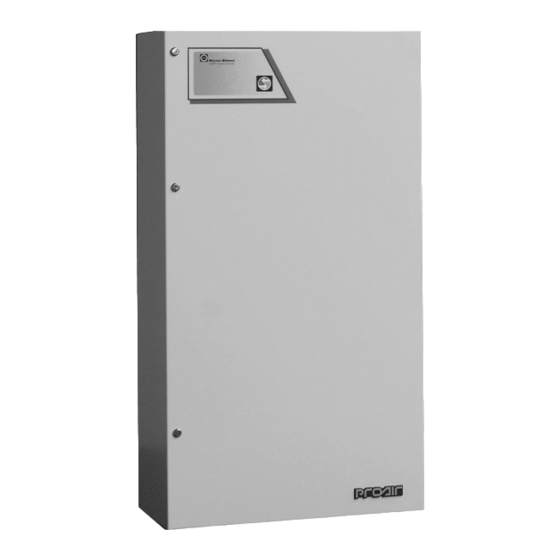

- Page 1 INSTRUCTION MANUAL FOR: ProAir CR29 McLean Thermal 11611 Business Park Blvd. N Champlin, MN 55316 Tel: 763-323-8200 Fax: 763-576-3200 www.mcleanthermal.com 87922494...
-
Page 2: Table Of Contents
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to McLean Thermal -- within 15 days of delivery. Save the carton and packing material and request an inspection. -
Page 3: Installation
Operate the air conditioner for five (5) to ten (10) minutes. No excessive noise or vibration should be evident during this run period. The condenser blower (ambient air), the evaporator blower (enclosure air), and the compressor should be running. Condenser air temperatures should be warmer than normal room temperatures within a few minutes. The compressor is provided with automatic reset thermal overload protection. -
Page 4: Design Data, Model Drawing
ProAir CR29 2000-4000 BTU/Hr. (586-1172 Watts) HxWxD: 29.5" (749) x 15.75" (400) x 8.63" (219) Shipping BTU/Hr @ Amps @ BTU/Hr @ Amps @ Amb Temp Weight Model Voltage Phase Lbs/Kgs F/131 F 131 F/131 F 131 F/131 F/95 CR29-0216-GXXX... -
Page 5: Components List
CR29 Components List (Table A) 115 Volt 115 Volt Part Description 4000 2200 Blower, Condenser 29-4121-10 29-4121-10 Blower, Evaporator 29-4121-10 29-4121-10 Capacitor, Compressor 10-1032-13 Compressor 10-1016-23 SP 10-1016-26 SP Thermal Overload, 10-1007-19 10-1007-45 Compressor Filter, Air, Reusable 10-1000-32 10-1000-32 Thermostat, SPST, 55-100F 52-6155-00 52-6155-00 Mounting Gasket Kit... -
Page 6: Wire Diagrams
CR29 Wire Diagram, Level I, 2000 BTU CR29 Wire Diagram, Level I, 4000 BTU NOTE: For voltage, hertz, and options not shown in this manual, refer to the wiring diagram attached to the unit. - 5 - 10-1008-121 rev.9... - Page 7 CR29 Wire Diagram, Level II & III, 2000 BTU CR29 Wire Diagram, Level II & III , 4000 BTU NOTE: For voltage, hertz, and options not shown in this manual, refer to the wiring diagram attached to the unit. - 6 - 10-1008-121 rev.9...
-
Page 8: Temperature Control
TEMPERATURE CONTROL The electromechanical thermostat is factory preset to 75 F/23 C. To change the temperature setting, remove the nylon plug from the back face of the unit. Use a standard screwdriver to adjust thermostat. For cooler temperatures turn clockwise, for warmer temperatures turn counterclockwise. PRINCIPLES OF OPERATION If electrical power to the air conditioner is interrupted and reapplied immediately, (within 3 to 5 seconds), the compressor may not restart due to the high back pressure of the compressor. - Page 9 The blower is mounted on its own bulkhead and is easily accessible by opening the front cover. Caution: Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blower and motor, etc. Contact McLean Thermal for special recommendations. Refrigerant Loss Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks.
-
Page 10: Trouble Shooting
TROUBLE SHOOTING Basic Air Conditioning Trouble Shooting Check List Check manufacturer’s nameplate located on the unit for correct power supply. Turn the power to the unit on. The evaporator (Enclosure or “COLD” air) blower should come on. Is there airflow? YES, proceed to step # 3. - Page 11 * Short in system Getting water in enclosure * Drain plugged * Drain tube kinked * Enclosure not sealed (allowing humidity in) For additional technical information(ie., amp draw, pressures, temperatures) contact McLean Thermal at 763-323-8200. - 10 - 10-1008-121 rev.9...
-
Page 12: Mclean Thermal Warranty
McLean Thermal to McLean Thermal’s own specifications, provided that the customer or user shall promptly notify McLean Thermal in writing of any such claim or demand, provided further that McLean Thermal shall have the right and option to undertake and control the entire defense of such claim, or demand instituted...
