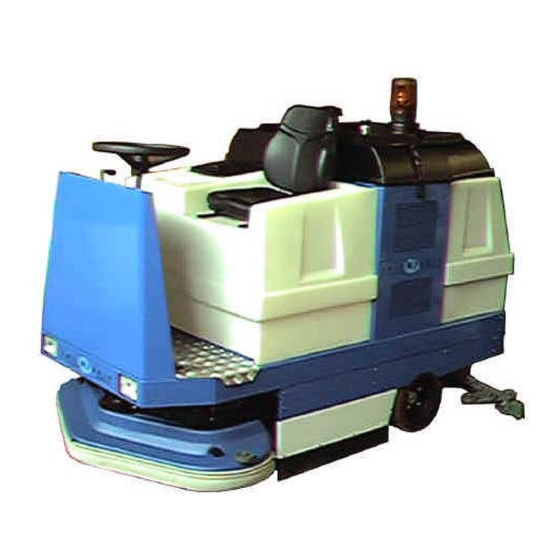

FIORENTINI I42TD User Manual

Scrubber
Hide thumbs
Table of Contents

Advertisement

Quick Links

ING. O. FIORENTINI S.R.L.
ING. O. FIORENTINI S.R.L.
ING. O. FIORENTINI S.R.L.
ING. O. FIORENTINI S.R.L.
INDUSTRIAL CLEANING MACHINES
INDUSTRIAL CLEANING MACHINES
INDUSTRIAL CLEANING MACHINES
INDUSTRIAL CLEANING MACHINES
SCRUBBER
SCRUBBER
SCRUBBER
SCRUBBER
- - - - MOD.
MOD. I42TD
I42TD – – – – I60TD
MOD.
MOD.
I42TD
I42TD
USER MANUAL
I60TD - - - -
I60TD
I60TD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I42TD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FIORENTINI I42TD

Summary of Contents for FIORENTINI I42TD

  • Page 1 INDUSTRIAL CLEANING MACHINES INDUSTRIAL CLEANING MACHINES INDUSTRIAL CLEANING MACHINES INDUSTRIAL CLEANING MACHINES SCRUBBER SCRUBBER SCRUBBER SCRUBBER - - - - MOD. MOD. I42TD I42TD – – – – I60TD I60TD - - - - MOD. MOD. I42TD I42TD I60TD I60TD USER MANUAL...

  • Page 2: Table Of Contents

    I42TD – I60TD Congratulations for your choice! FIORENTINI S.r.l. thanking you for the preference to its product, would like to remind you that FIORENTINI S.r.l production covers manufacture and marketing of industrial cleaning machines and is a leading company in this sector.

  • Page 3: General Information

    In case of loss ask for a duplicate to FIORENTINI Co.. FIORENTINI S.r.l. is not responsible for any kind of damages caused by people or things due to the non- observance of the instructions of this manual.

  • Page 4: Warranty Life

    Repair and replacement under warranty will be done in FIORENTINI’s workshop, by third parties or in loco. In case of repair or replacement in loco, energy sources and the use of particular equipment have to be paid by the customer himself.
  • Page 5 TECHNICAL DATA I42TD – I60TD DICHIARAZIONE CE DI CONFORMITA’ ING. O. FIORENTINI s.r.l. Loc. Rombola 50030 PIANCALDOLI (FI) ITALIA SISTEMA QUALITA’ AZIENDALE CERTIFICATO ISO9001 DICHIARIAMO SOTTO LA NOSTRA RESPONSABILITA’ CHE LA MACCHINA Marca FIORENTINI Tipo N° serie Anno di costruzione 2005 RISULTA IN CONFORMITA’...

  • Page 6: Machine Features And Technical Data

    4.2. DESCRIPTION AND COMPONENTS The scrubbing machine – Mod. I42TD - has been designed to clean all flat surfaces by means of washing and suction of the washing water. The electric traction system is supplied by a series of batteries which supply energy to the brushes motors, to the squeegee motor and to the suction motor.

  • Page 7: Main Parts Of The Machine

    FIORENTINI Co., taking the new CE safety rules into consideration, manufactures the machine following the CE directives about safety and health. The materials high quality, the high technology and FIORENTINI’s experience guarantee the performance and the reliability of this machine .
  • Page 8 8500 11500 Noise 73 dBA 73 dBA The above mentioned characteristics are not binding for the manufacturer; they can be changed without any notice . ING.O.FIORENTINI Co. is always at disposal for any information (par.7.1.). January 2005 Rev. 00 8/36...
  • Page 9 TECHNICAL DATA I42TD – I60TD MEASUREMENT UNITS CONVERSION Lenght 1 inch = 1” = 25,4 mm Power 1 kW = 1,36 CV = 1,34 BHP Temperature T (K) = t (° C) + 273 / t (° F) = 1,8 t (°C) + 32 Pressure...

  • Page 10: Dashboard

    TECHNICAL DATA I42TD – I60TD 4.3.1. DASHBOARD The dashboard is made of a series of switches that activate or disactivate all the machine functions. The function of each switch is shown by a picture. Picture 4.6. shows the dashboard of the machine and the switches function is explained in the scheme below.
  • Page 11 TECHNICAL DATA I42TD – I60TD 4.3.2. USE OF THE MACHINE Starting the machine Machine off Dashboard on Preignition glow plugs Battery charger Oil pressure Motor temperature pilot light Insert the key into the dashboard and turn it (ON position). Turn the key and start the engine only when the glow plugs pilot light (no.
  • Page 12 TECHNICAL DATA I42TD – I60TD Detergent regulation. Gradual increase through the rotation of the device Water valve The detergent quantity can be regulated by means of valve no. 15: valve clockwise turning: the detergent quantity increase while washing; valve counterclockwise turning: the valve closes.
  • Page 13 TECHNICAL DATA I42TD – I60TD Make sure that the motor rpm is the right one when starting the washing step. The rpm motor is regulated by means of the lever on dashboard side (see picture no. 4). Picture no. 4...
  • Page 14 TECHNICAL DATA I42TD – I60TD Parking brake Picture no. 6 Important : check and adjust the brake at least once every three months. Driving seat regulation. By means of the lever under the seat (picture no. 7) the operator can regulate the distance of the seat from the steering wheel.
  • Page 15 TECHNICAL DATA I42TD – I60TD Modalità d’uso della macchina. Washing brush up Washing brush down Squeegee down Squeegee up Squeegee suction Lights Flashing light The operator, thanks to his/her experience, has to choose the right kind of brush and detergent for the surfaces that has to be washed and to decide if the floor needs a second washing.
  • Page 16 50 cc of wine vinaigre in the recovery tank in order to avoid the suction motor damage. Make sure that the detergent is suitable for the dirty surface. FIORENTINI S.r.l. is not responsible for damages provoked by too aggressive detergents.
  • Page 17 TECHNICAL DATA I42TD – I60TD Water discharge. The scrubber is equipped with one pipe for the water discharge (picture no. 9): Recovery tank water discharge (detail 1 picture 9) If you need to discharge water from the tanks, you have to place the machine on a dump well, release the pipe of the tank and open the rubber cap at the end of the pipe itself.
  • Page 18 TECHNICAL DATA I42TD – I60TD Brushes replacement Follow the instructions below for the brushes replacement (picture no. 10): Remove the ignition key from the dashboard in order to avoid a casual starting of the machine; Unscrew the knobs and remove the cover brushes case;...
  • Page 19 TECHNICAL DATA I42TD – I60TD Sqeegee regulation The squeegee has to be well regulated in order to have a perfect dry system. This kind of squeegee can perfectly suck water, which flows into the suction pipe, but it must be parallel to the surface.
  • Page 20 TECHNICAL DATA I42TD – I60TD Squeegee blades replacement Squeegee blades must be replaced when their hedges are worn. A perfect hedge allows a perfect dry (picture 4.19). Follow these instructions to replace the squeegee blades: Lift the squeegee support up, remove the suction pipe (picture no. 12) and unloose the screws;...

  • Page 21: Safety

    5.3. SUGGESTED EQUIPMENT In order to use the machine in a proper way, we suggest to use the FIORENTINI’s equipment and original spare parts. FIORENTINI S.r.l. Technical Dept. is always at your disposal to design components or parts for a particular use of machine as requested by the customer.

  • Page 22: Operator's Qualify

    Dismantling and demolition Fiorentini technician FIORENTINI S.r.l. suggests to train the operator before using the machine. The operator also must be trained about safety rules and carefully read this manual. FIORENTINI S.r.l. is not responsible for any possible damage to people and/or things caused by the non-observance of the instructions dealt within this manual.

  • Page 23: Other Dangers

    OTHER DANGERS FIORENTINI S.r.l. analyzes – starting from the design of the machine - all the dangers that can occur while the machine is operating in order to prevent or at least low the operator’s accidents. Thanks to a series of signals on the machine the operator can avoid many risks that can occur.

  • Page 24: Safety Signals

    SAFETY I42TD – I60TD 3.9. SAFETY SIGNALS Dangers’ signals are triangular with black DANGERS pictures on a yellow background Prohibitions’ signals are round with black PROHIBITIONS pictures and a red stripe What is it? This signal forbids to remove the protection of pieces in movement.
  • Page 25 SAFETY I42TD – I60TD Explosion danger: it may occur while recharging the batteries because What is it? of hydrogen spread. During the batteries recharge, please place the machine under a What to do suction chemney or in a ventilated area and keep it away from heat and corrosive substances.
  • Page 26 SAFETY I42TD – I60TD This sticker shows fire ranger because of the presence of inflammable What is it? liquids. Whilst filling up the petrol tank pay attention that no primary sources are What to do close to the machine. Use a proper funnell in order to avoid that any drops of petrol falls onto the machine.

  • Page 27: Starting The Machine

    The purchaser must make sure that the machine has not been damaged during the transport and that all papers are on the machine. Otherwise, the purchaser must immediately contact FIORENTINI in order to sort out the problem. The purchaser is responsible for the transport of the machine if not differently agreed with FIORENTINI.

  • Page 28: Storage

    Picture no. 17 Picture no. 18 FIORENTINI suggest to use authorized personnel (see § 2.3.) to handle the machine. The bands used for lifting the machine up must have the same loading capacity as the machine load. Handling operations must be done without causing a loss of stability of the machine.

  • Page 29: Starting The Machine

    Check the functioning of the wheels brake Check the functioning of the pilot lights The machine can be started if the test has a positive result. Otherwise, please contact FIORENTINI Service. The functinonig test ha sto be periodically carried out in order to keep the machine perfect and safe.

  • Page 30: Maintenance

    Trained personnel only can service the machine and especially electric and electromechanical parts by means of suitable tools and equipments. Make reference to FIORENTINI S.r.l. only for service and spare parts (§ 7.1. and § 7.2.). OPERATION...
  • Page 31 INSTRUCTIONS CUCCIOLO Remove the sponge filter under the motor, wash it and put it again in its position (see detail 3 in picture no. 19);; Check the motor fan through the hole in the front side of the suction motor; Remove the plastic cover, loosen the screws and both coal brushes supports and check the motor coal brushes (see picture no.
  • Page 32 INSTRUCTIONS CUCCIOLO 1. cap 2. coal brushes 3. coal brushes screws Picture no. 21 7.3. DIESEL ENGINE MAINTENANCE Check engine oil level every 50 hours work. Oil replacement every 150 hours. Check the coolant every 50 hours. Replace the air filter every 100 hours. Replace the petrol filter every 250 hours.

  • Page 33: Maintenance Register

    INSTRUCTIONS CUCCIOLO 7.5. MAINTENANCE REGISTER DATE OPERATOR INTERVENTION SIGNATURE January 2005 Rev. 000 33/36...

  • Page 34: Service

    Do not hesitate to contact FIORENTINI S.r.l. service for any kind of information or request. Most of the technical problems can be sorted out with short intervention. This is why FIORENTINI S.r.l. suggest to read carefully this manual before using the machine. On the contrary, if the customer needs a FIORENTINI technician, please inform us about the problem in order to sort it out with the right material.

  • Page 35: Claim Report

    Please, fill in the format below if the machine shows particular problems. Operator: Company: Operator’s name: Role: Date: Signature: Machine description: Machine: Type: I42TD – I60TD Purchase date: S.N.: Warranty: Work hours: Where does the machine normally work? Fault: Code of the defected Description:...
  • Page 36 _____________________ Nr. de serie Data di spedizione Shipment date _____________________ Date de spedition Distributed by: ING. O. FIORENTINI s.r.l. “T ” HE BEST IN FLOOR MACHINES FILIALI: 20132 MILANO – Fax. 02/2592779 Via Palmanova 211/a – Tel. 02/27207783 - 2564810 00155 ROMA –...

This manual is also suitable for:

I60td
