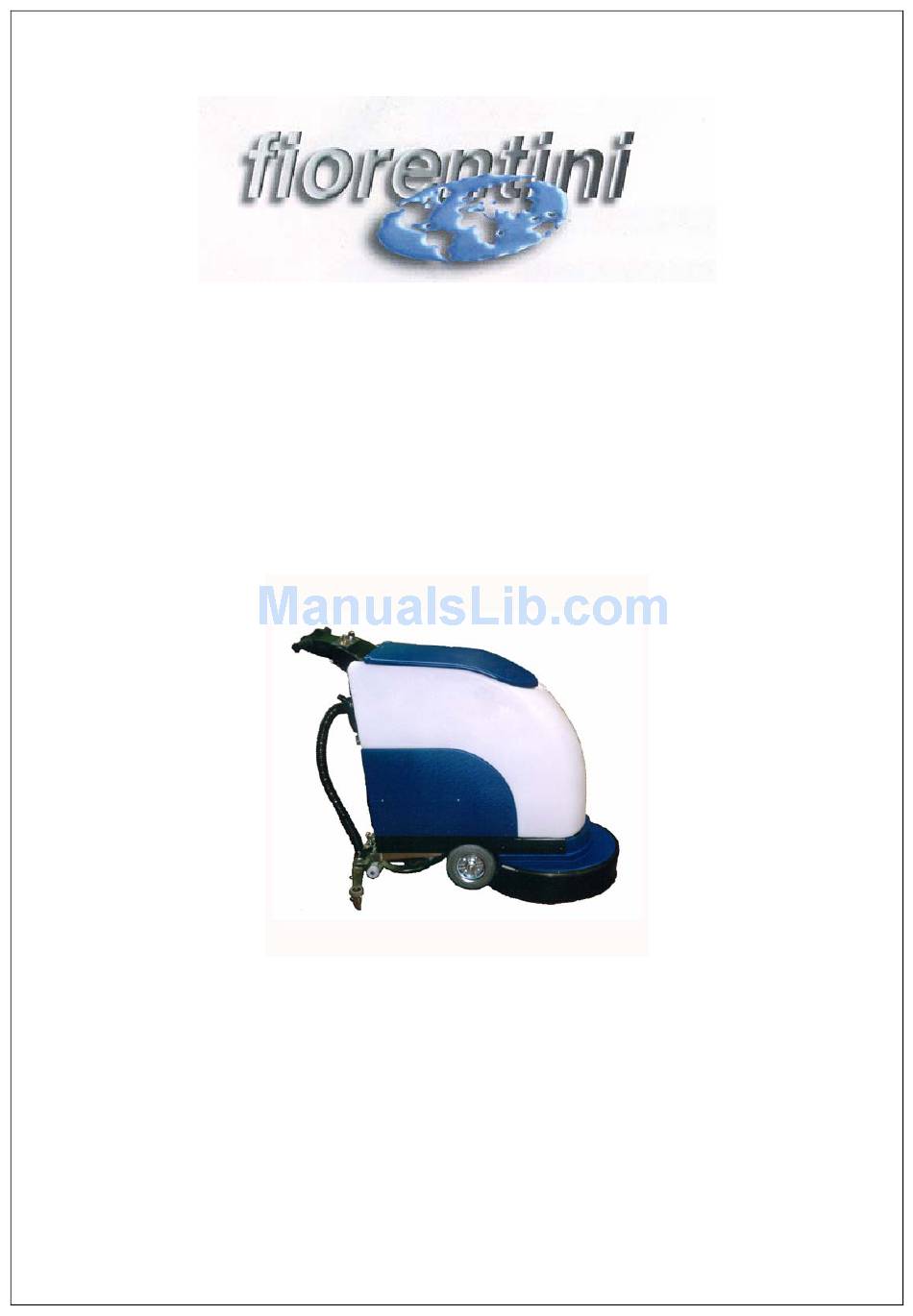

- Page 1 OPERATOR MANUAL N45E-N53E ATTENTION DO NOT USE THE MACHINE WITHOUT READING THE INSTRUCTION MANUAL. ING. O. FIORENTINI S.R.L. INDUSTRIAL CLEANING MACHINES...
-
Page 2: Table Of Contents
INTRODUCTION RECEIPT OF THE MACHINE pag. 3 INTRODUCTION TECHNICAL DESCRIPTION GENERAL INFORMATION MANUFACTURER RESPONSABILITY INTERVENT REQUEST TRANSPORTATION HANDLING OF PACKED MACHINE UNPACKING THE MACHINE HANDLING OF UNPACKED MACHINE OPERATORING CONTROLS DASHBOARD CONTROLS DASHBOARD SYMBOLS USE OF THE MACHINE CHOOSING THE DETERGENT SOLUTION SCRUBBING WATER FILLING AND DISCHARGE, TANK CLEANING SQUEEGEE ADJUSTMENT... -
Page 3: Introduction
In case of goods to be returned for warranty replacement, it is necessary to have a written acceptance from FIORENTINI technical department before sending them. All defective parts must be carefully packed in order to avoid further damages during transport. -
Page 4: Technical Description
TECNICAL DESCRIPTION N45E N53E DIMENSIONAL CHARACTERISTICS LENGHT 1000 mm 1100 mm WIDTH BRUSH COVER 500 mm 650 mm HEIGHT 1000 mm 1000 mm N° BRUSHES ∅460 mm ∅530 mm BRUSH SIZE WORK WIDTH 460 mm 530 mm SQUEEGEE WIDTH 800 mm... -
Page 5: General Information
(or non-fulfilment) of the prescriptions contained in this manual .The same applies to change’s execution, modifications, and/or to the installation of accessory not preliminarily authorized. In particular the firm ING FIORENTINI SRL is not responsible for any damages caused by: • Natural calamity • Erroneous operations •... -
Page 6: Transportation
TRANSPORTATION HANDLING OF PACKED MACHINE The machine is supplied packed on pallet, closet in a box made of plywood or paper board. The weight and sizes are showed in the normal characteristics. The barycentre position is indicated by black arrow on the box. The forks of the lift truck or the transpallet should be placed so that the black arrow indicated on the packing is about in the centre of the forks. -
Page 7: Operatoring Controls
OPERATING CONTROLS DASHBOARD CONTROLS 1. Main Key Switch; 2. General Lamp; 3. Vacuum Motor Switch; 4. Brushes Motor Switch; DASHBOARD SYMBOLS Close(off) On(first function) Key Switch Scrubbing Brush Vacuum by Squeegee... -
Page 8: Use Of The Machine
USE OF THE MACHINE CHOOSING THE DETERGENT SOLUTION For a good cleaning of the floor, it is important to choose the proper detergent solution. If necessary, ask the supplier or a competent person for the proper solution. Keep in mind that a too strong chemical agent can compromise the long life of each machine. -
Page 9: Squeegee Adjustment
SQUEEGEE ADJUSTMENT The squeegee must be perfectly adjusted to get a perfect floor drying ( fig. 8). The main characteristic of this type of squeegee is to pick-up the water from the floor and convey to the vacuum hose, but it must be parallel to the floor. To rightly adjust the squeegee operate as follow: •... -
Page 10: Safety, Maintenace And Inspections
SAFETY, MAINTENANCE AND INSPECTION GENERAL SAFETY RULES Before using the machine ,instruct all operators to read carefully the charter ”SAFETY STANDARDS “WARNING. • The manufacturer can make any changes to the machine, for constructive or commercial reasons, without being obliged to change the instruction manual at the right time according to these modifications. - Page 11 correct operation of the emergency stop pushbutton or of the equivalent mechanism . Never operate the machine when the control panel indicates defective tools, warning lights, etc. MAKE SURE THAT: - No strangers are present near the machine - No strange objects (appliances, cloths, etc.) are on the machine - The machine does not emit strange noises after its starting;...
-
Page 12: Maintenance Schedule
All six month, check the efficiency of the safety devices, the inspection should be performed by qualified personnel of FIORENTINI s.r.l. or authorized by it. To grant the efficiency of the safety devices, the machine should be overhauled by a technician of FIORENTINI every 5 months. -
Page 13: Squeegee Blades Replacement
SQUEEGEE BLADE REPLACEMENTS The squeegee blades should be replaced when the contact edge becomes worn; the perfection of the edge is essential for a perfect drying. To replace the blades • The squeegee should be demounted from the machine and placed on the desk. •... -
Page 14: Vacuum Motor Maintenance
Fig. 6 1. plastic cap 2. carbon brushes 3. carbon brushes screws CAUTION Each maintenance and repair operation not described under the “ordinary maintenance” should be performed by qualified personnel authorized by FIORENTINI s.r.l. only. CONTROLS... -
Page 15: Safety Controls Inspection
Every 2 years to check the efficiency of the safety devices, the inspection must be performs at a professional technician. To guarantee the general efficiency every 5 years the scrubber must be revises from the personnel of the Fiorentini company. Check on the electric installation The preparation of the electric plant has to be every 2 years inspected and examined. -
Page 16: Spare Parts
Distributed by: ING. O. FIORENTINI s.r.l. “T ” HE BEST IN FLOOR MACHINES FILIALI: 20132 MILANO – Fax. 02/2592779 Via Palmanova 211/a – Tel. 02/27207783 - 2564810 00155 ROMA – Fax. 06/22754075 Via Carlo Carrà 13 – Tel. 06/22754040-2275060 STABILIMENTO: 50030 PIANCALDOLI (FI) –...
