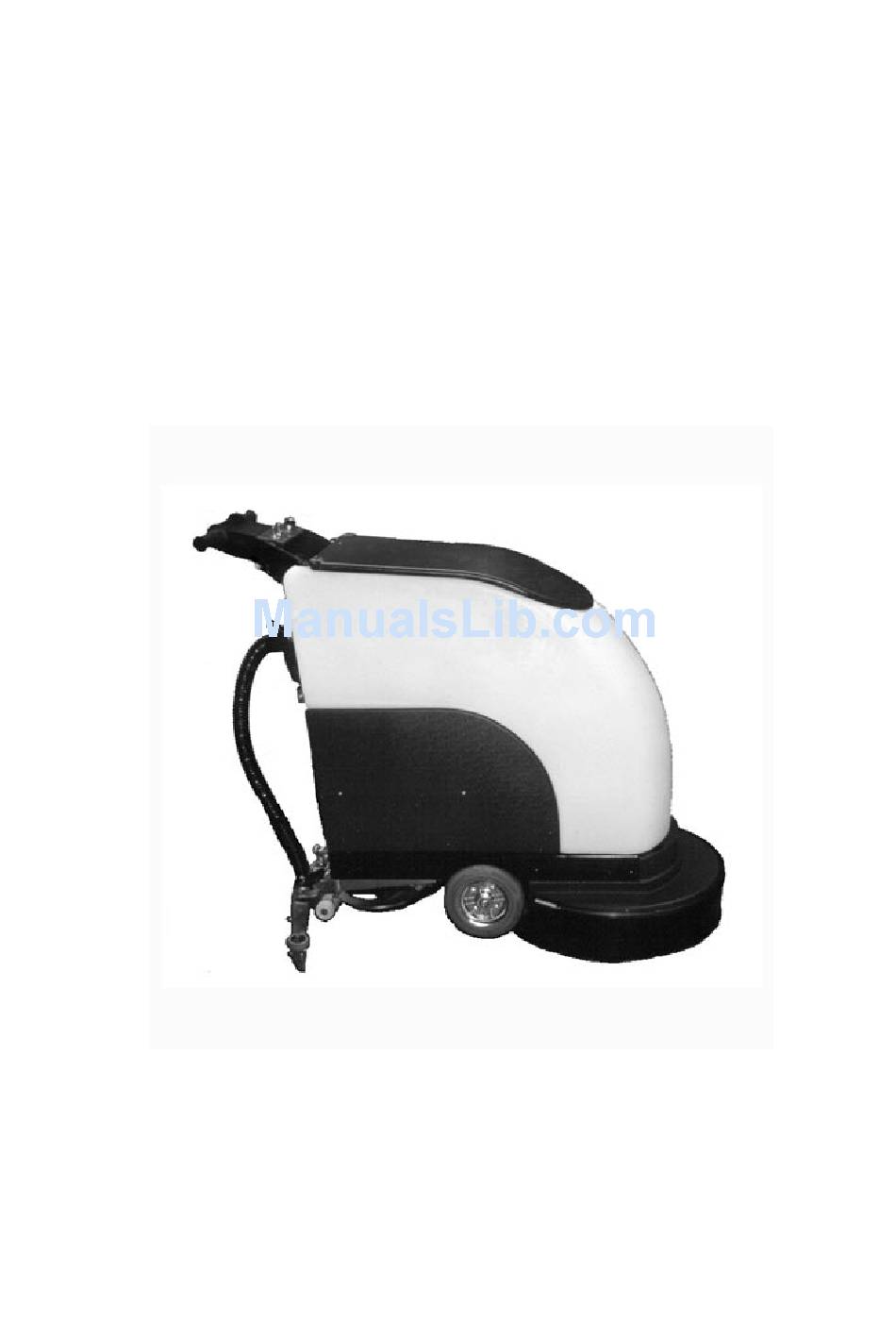

- Page 1 Ing. O. Fiorentini Operator manual N 45B - N 53B ENGLISH ING. O. FIORENTINI S.R.L. INDUSTRIAL CLEANING MACHINES...
-
Page 2: Dimensional Characteristics
DIMENSIONAL CHARACTERISTICS “N 45B” “N 53B” LENGTH 1000 mm 1100 mm WIDTH BRUSH COVER 500 mm 650 mm HEIGHT 1000 mm 1000 mm N° BRUSHES BRUSH SIZE ( DIAMETER ) 460 mm 530 mm WORK WIDTH 460 mm 530 mm... -
Page 3: Handling Of Packed Machine
THIS MACHINE CAN BE CORRECTLY USED AS FOLLOWS: scrubber to be used on a flat surface or on ramps with slopes lower than 5%, to clean flo- ors with any covering, moquette excluded. THIS MACHINE CANNOT BE USED FOR ANY OTHER PURPOSES, IN PARTICULAR: it cannot be used as a tractor, neither on ramps with slopes higher than 5%, nor to tran- sport people. - Page 4 (or non-fulfilment) of the prescriptions contained in this ma- nual. The same applies to change’s execution, modifications, and/or to the installation of ac- cessory not preliminarly authorized. In particular, the firm FIORENTINI is not responsible for any damages caused by: - natural calamity - erroneous operations...
-
Page 5: General Safety Standards
WARNING The manufacturer can make any changes to the machine, for constructive or commercial reasons, without being obliged to change the instruction manual at the right time according to these modifications. GENERAL SAFETY STANDARDS The machine described in this manual has been built according to the 89/392/CEE rule re- garding the machines and to its subsequent modifications. -
Page 6: Maintenance Instructions
ways keep handy the instruction and maintenance handbook on the working place of the machine. Beyond the use and maintenance instructions, observe and prepare the binding general legislative rule regarding the accident prevention and environment protection as well. This can also concern the handling of harmful materials, the availability and mounting of customized protection equipments and the compliance with the rules of the road as well. - Page 7 All six month, check the efficiency of the safety devices, the inspection should be perfor- med by qualified personnel of FIORENTINI s.r.l. or authorized by it. To grant the efficiency of the safety devices, the machine should be overhauled by a technician of FIORENTINI every 5 months.
-
Page 8: Operating Controls
OPERATING CONTROLS DASHBOARD CONTROLS 1) main key switch 2) battery charge indicator 3) vacuum motor switch 4) brush motor switch fig. 2 1) advancement speed adjustment lever... - Page 9 fig. 3 1) water drain pipe recovery tank 2) handle position adjustment lever 3) battery charge plug 4) solution adjustment lever 5) squeegee lifting lever 6) battery compartment opening lever 7) brush lifting pedal SYMBOLS squeegee on (first function) vacuum by squeegee on (second function) squeegee lowering squeegee lifting...
-
Page 10: Use Of The Machine
USE OF THE MACHINE CAUTION PREPARING THE MACHINE FOR OPERATION Upon delivery of the machine, remove the packing without damaging it. It can be re-used for any possible long displacements of the machine. Check immediately the machine state, and in case of damages due to the transport, contact the trucking company to file a freight damage claim. -
Page 11: Starting And Preparing The Machine
STARTING AND PREPARING THE MACHINE If the scrubber is connected to the battery charger (having finished the charge operation), detach the battery charger plug from the socket (located on the machine) coming from the battery (fig.3). Close the battery cover again (fig.4). The machine should be operated by tur- ning the master key switch (fig.2). -
Page 12: Squeegee Adjustment
SQUEEGEE ADJUSTMENT The squeegee must be perfectly adjusted to get a perfect floor drying. Therefore, adjust first its angular position through the appropriate knob (fig.6) so that its rubber blades get the same slanting on the floor along its entire width. Of course the optimal adjustment is confirmed by very good results of the drying operation, and the operator’s experience will contribute to enhance such good results. -
Page 13: Brushes Replacement
BRUSHES REPLACEMENT Before replacing the brushes, extract the key from the control dashboard, thus avoiding that any accidental ignition of some motors could cause damages. To have free access to the brush, you need to remove the brush carter (fig.7) doing tractive force towards outside di- rection on the carter ;... -
Page 14: Maintenance
MAINTENANCE MAINTENANCE SCHEDULE EVERY EVERY EVERY EVERY WEEK MONTH SIX MONTH Clean the recovery tank Clean the filter of the vacuum motor Check for the cleaning of the suction pipes and of the squeegee Check the brush state Check the state of the squeegee blades Check the state of the scrubbing solution delivery valve Check the brush state of each motor... -
Page 15: Squeegee Blade Replacement
provide a sufficient ventilation, install special discharge pipes that should not lead to the flues. When necessary, air exchange should be made in the fastest way by means of fans. BATTERIES INACTIVE OR NOT IN CONTINUOUS OPERATION During inactive periods, batteries are subject to a spontaneous discharge (auto-discharge). The auto-discharge substracts every day from the battery a part of its charge and causes a sulphation of the plates, which increases in the long run, thus compromising the battery effi- ciency. -
Page 16: Vacuum Motor Maintenance
10 1) plastic cap 2) carbons brush 3) carbons brush screws CAUTION Each maintenance and repair operation not described under the “ordinary maintenance” should be performed by qualified personnel authorized by FIORENTINI s.r.l. only. - Page 18 Mat. n. Serial no. Nr. de serie Data di spedizione Date of shipment Date de spedition ING. O. FIORENTINI s.r.l. Distribuito da: “The Best in floor machines ” FILIALI: 20132 MILANO - Fax. 02/2592779 Via Palmanova 211/a - Tel02/27207783 - 2564810 00155 ROMA - Fax.
