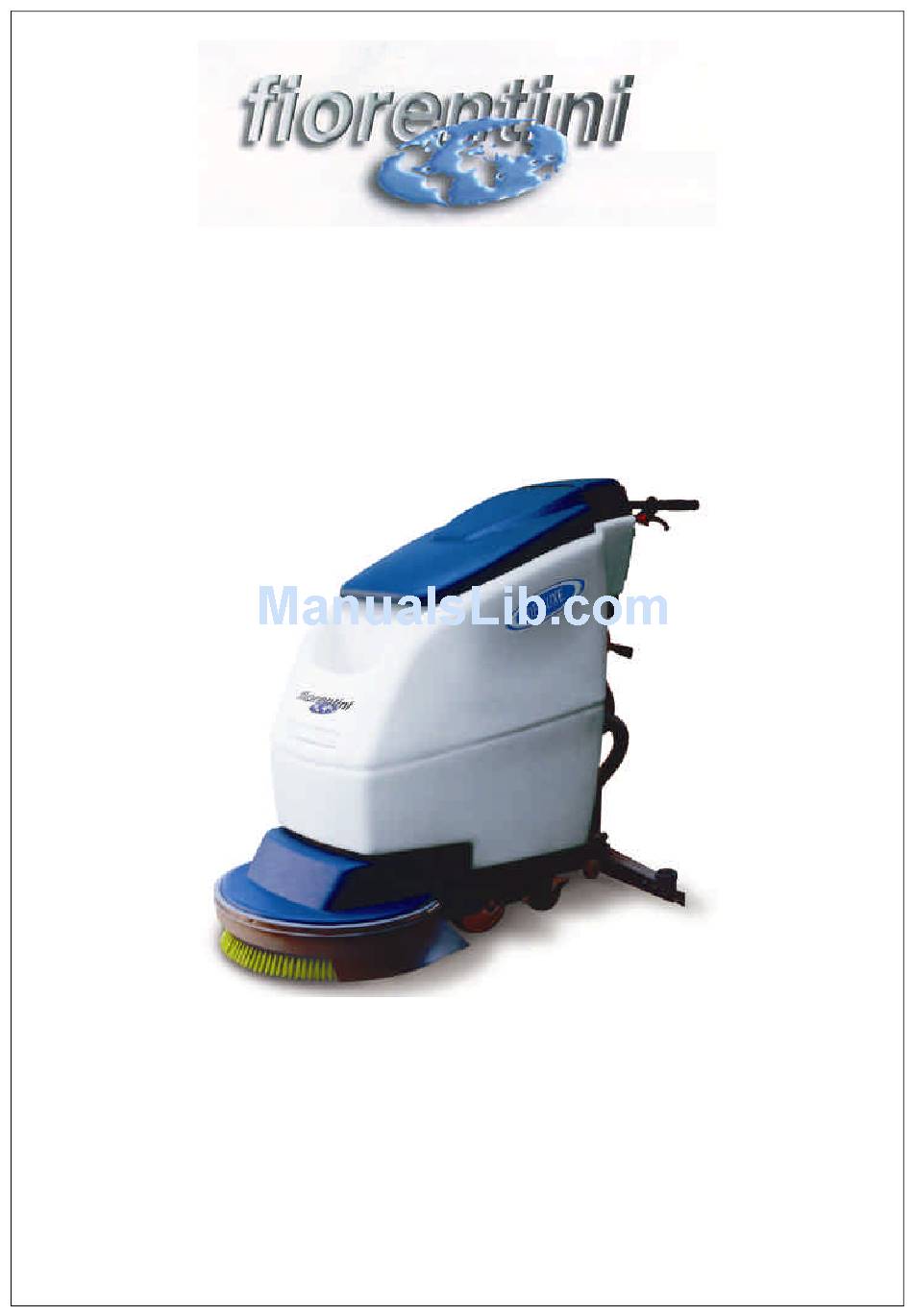

- Page 1 OPERATOR MANUAL DE LUXE 43B – DE LUXE 50B ATTENTION DO NOT USE THE MACHINE WITHOUT READING THE INSTRUCTION MANUAL. ING. O. FIORENTINI S.R.L. INDUSTRIAL CLEANING MACHINES...
-
Page 2: Table Of Contents
INTRODUCTION RECEIPT OF THE MACHINE pag. 3 INTRODUCTION TECHNICAL DESCRIPTION GENERAL INFORMATION MANUFACTURER RESPONSABILITY INTERVENT REQUEST TRANSPORTATION HANDLING OF PACKED MACHINE UNPACKING THE MACHINE HANDLING OF UNPACKED MACHINE OPERATORING CONTROLS DASHBOARD CONTROLS DASHBOARD SYMBOLS USE OF THE MACHINE CHOOSING THE DETERGENT SOLUTION SCRUBBING WATER FILLING AND DISCHARGE, TANK CLEANING SQUEEGEE ADJUSTMENT... -
Page 3: Introduction
INTRODUCTION SOON MACHINE ARRIVES PLEASE CHECK THAT EVERYTHING IS OK,PLEASE CHECK THAT THERE IS NOT ANY DAMAGE DUE TO TRANSPORT AND CHECK TO HAVE RECEIVED ALL THE SHOWING ON THE DOCUMENTS. CASE DAMAGES MISSING PART PLEASE ADVISE IMMEDIATELY THE MANUFACTURER INTRODUCTION THIS KIND OF SCRUBBER MACHINE ALLOWS THE OPERATOR TO... -
Page 4: Technical Description
TECNICAL DESCRIPTION DE LUXE 43B DE LUXE 50B DIMENSIONAL CHARACTERISTICS LENGHT 1000 mm 1030 mm WIDTH BRUSH COVER 480 mm 550 mm HEIGHT 1060 mm N° BRUSHES ? 430 mm ? 500 mm BRUSH SIZE PRESSURE BRUSH 30Kg WORK WIDTH... -
Page 5: General Information
(or non-fulfilment) of the prescriptions contained in this manual .The same applies to change’ s execution, modifications, and/or to the installation of accessory not preliminarily authorized. In particular the firm ING FIORENTINI SRL is not responsible for any damages caused by: o Natural calamity o Erroneous operations... -
Page 6: Transportation
TRANSPORTATION HANDLING OF PACKED MACHINE The machine is supplied packed on pallet, closet in a box made of plywood or paper board. The weight and sizes are showed in the normal characteristics. The barycentre position is indicated by black arrow on the box. The forks of the lift truck or the transpallet should be placed so that the black arrow indicated on the packing is about in the centre of the forks. -
Page 7: Operating Controls
OPERATING CONTROLS DASHBOARD CONTROLS MAIN KEY SWITCH VACUUM MOTOR SWITCH BRUSHES MOTOR SWITCH BATTERY CHARGER INDICATOR SAFETY MOTOR DASHBOARD SYMBOLS Close (off) On (first function) Key Switch Scrubbing Brush Vacuum by Squeegee Traction safety motor Indicatore di carica batteria... -
Page 8: Use Of The Machine
USE OF THE MACHINE BATTERIES INSTALLATION o Lift up the recovery tank in order to access to batteries box o Install the batteries as per picture fig. 6-b o Never add distilled water after recharging the batteries o Clean the surfaces that are in contact with the connections Fig. -
Page 9: Squeegee Adjustment
plate lowering block. Now operate immediately the lever to apply the detergent water, and adjust it accordingly. Put the run selector (fig.2) in its forward position and press the pedal (fig.3) so that the machine moves forward and starts scrubbing. The water dosage must be adjusted to get the whole surface completely wet after the brush passage, but without any excess, that could generate splashes, stream or flows out of the squeegee. -
Page 10: Brushes Replacement
BRUSHES REPLACEMENT How to attach the brush in order to fix the brush is necessary: Place the machine on the brush, keeping the brush plate up Switch on the brush and lift down the brush plate and allows the brush to be fixed In order to replace the brush is necessary to lift up the brush switch off the brush switch, the brush automatically goes away. - Page 11 o The machine is designated to be used as a scrubber ;any other different use doesn’ t not comply with its destination. the manufacturer/supplier takes no responsibility for any consequent damage. o DANGER It is absolutely forbidden to suck inflammable and or toxic liquids and powders o DANGER It is dangerous and absolutely forbidden to touch the lower part of the machine with the hands when some parts are moving.
- Page 12 pe riodical l y inspect ed and ch e ck ed. Any possibl e fail ure, such as det ach ed conne ct ions and burnt cabl e s sh oul d be im m ediat e l y rem ov ed. CAUTION To cl e an t h e m ach ine , us e aggre s s iv e det ergent sol ut ions, acids, et c.
-
Page 13: Maintenance Schedule
MAINTENANCE SCHEDULE During the cleaning and the maintenance of the machine remove the key. DAILY o Clean the recovery tank and the filter of the vacuum motors. WEEKLY o Check for the cleaning of the suction pipes and of the squeegee o Check the state of the rubber squeegee blades MONTHLY o Check the filter of the clean water tank... -
Page 14: Vacuum Motor Maintenance
Fig. 6 1. plastic cap 2. carbon brushes 3. carbon brushes screws CAUTION Each maintenance and repair operation not described under the “ordinary maintenance” should be performed by qualified personnel authorized by FIORENTINI s.r.l. only. -
Page 15: Controls
Every 2 years to check the efficiency of the safety devices, the inspection must be performs at a professional technician. To guarantee the general efficiency every 5 years the scrubber must be revises from the personnel of the Fiorentini company. Check on the electric installation The preparation of the electric plant has to be every 2 years inspected and examined. - Page 16 Nr. de serie Data di spedizione Date of shipment _____________________ Date de spedition Distributed by: ING. O. FIORENTINI s.r.l. “T ” HE BEST IN FLOOR MACHINES FILIALI: 20132 MILANO – Fax. 02/2592779 Via Palmanova 211/a – Tel. 02/27207783 - 2564810 00155 ROMA –...
