FlashLogic FLRSCH5 Install Manual page 6

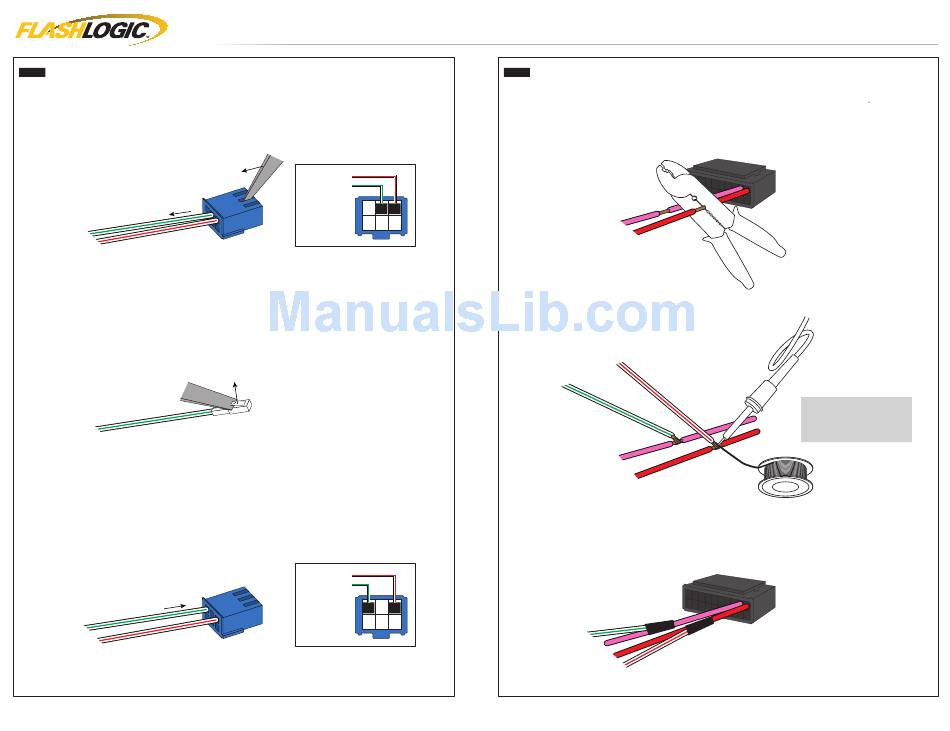

NOTE 1
STEP 1:
-REMOVE THE WHITE/GREEN WIRE FROM THE BLUE CONNECTOR CAREFULLY.
-USE A UTILITY KNIFE TO PUSH GENTLY AGAINST THE LOCKING TAB.
-DO NOT DAMAGE THE LOCKING TAB IN THE PROCESS.
STEP 2:
-USING A UTILITY KNIFE, LIFT THE LOCKING TAB CAREFULLY FOR IT TO BE RE-USED.
STEP 3:
-INSERT THE WIRE IN PIN 6 OF THE CONNECTOR, RIGHT NEXT TO WHERE IT USED TO BE.
Automotive Data Solutions Inc. © 2013
TYPE 1 - WIRING DIAGRAM - 2 OF 2
WHITE/RED
WHITE/GREEN
6 4 4 2 2
5 3 1
WHITE/RED
WHITE/GREEN
6 6 4 2 2
5 3 1
OEM-CH(RS)-CH5-[FLRSCH5]-EN
NOTE 2
STEP 1:
-IDENTIFY THE PINK (PIN 17) AND RED (PIN 19) WIRES FROM THE 20 PIN BLACK CONNECTOR OF THE T HARNESS.
-CAREFULLY STRIP THE PINK AND RED WIRES USING A WIRE STRIPPER.
-DO NOT CUT THE WIRES IN THE PROCESS.
STEP 2:
-CONNECT AND SOLDER THE WHITE/RED WIRE TO THE RED WIRE.
-CONNECT AND SOLDER THE WHITE/GREEN WIRE TO THE PINK WIRE.
STEP 3:
-INSULATE THE CONNECTIONS WITH ELECTRICAL TAPE.
Page 6 oF 21
• 20131125
DOC.: #13103
