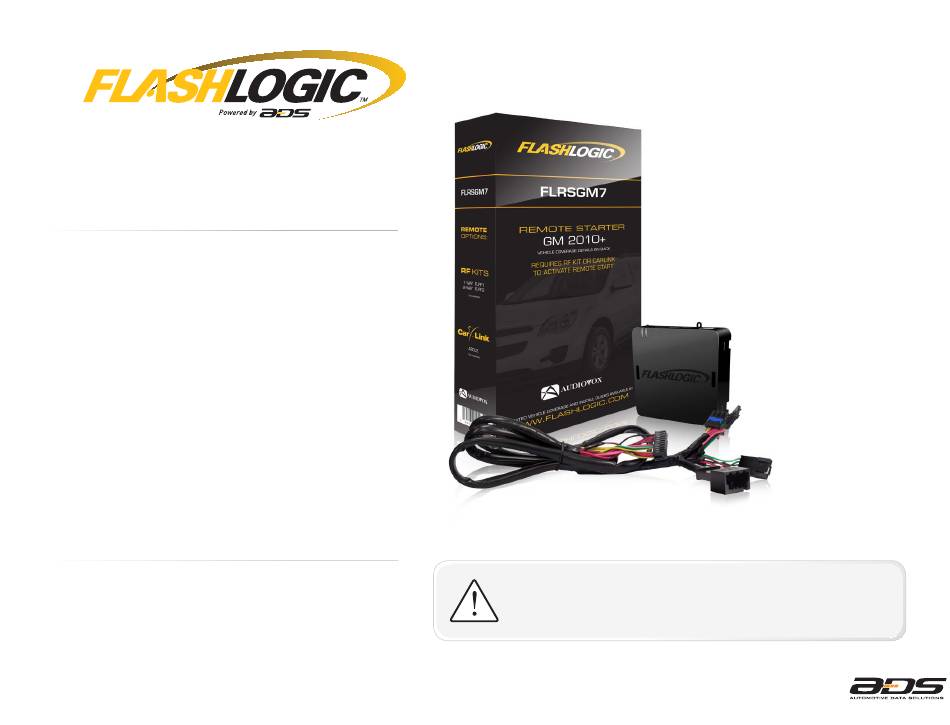

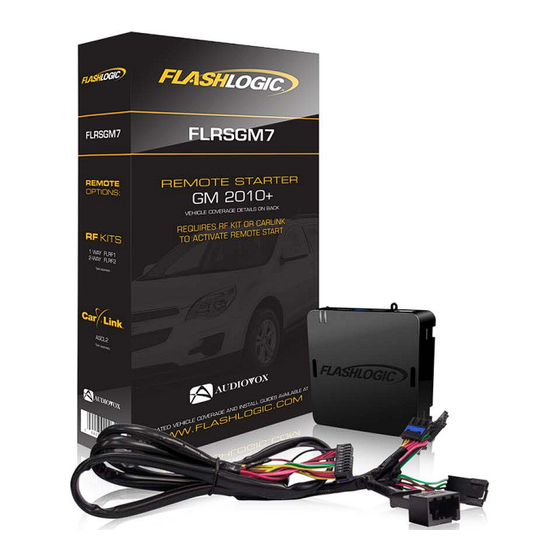

FLC-GM(RS)-GM7-[FLRSGM7]-EN
NOTICE
The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2017
INSTALL GUIDE
DOCUMENT NUMBER
40640
REVISION DATE
20170705
FIRMWARE
FLC-GM(RS)-GM7-[FLRSGM7]
HARDWARE
FLRSGM7
ACCESSORIES
FLPROG (REQUIRED)
FLRF1/2/4 (OPTIONAL)
CARLINK ASCL2 (OPTIONAL)
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
www.flashlogic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLRSGM7 and is the answer not in the manual?

Questions and answers

Related Manuals for FlashLogic FLRSGM7

Summary of Contents for FlashLogic FLRSGM7

  • Page 1 INSTALL GUIDE FLC-GM(RS)-GM7-[FLRSGM7]-EN DOCUMENT NUMBER 40640 REVISION DATE 20170705 FIRMWARE FLC-GM(RS)-GM7-[FLRSGM7] HARDWARE FLRSGM7 ACCESSORIES FLPROG (REQUIRED) FLRF1/2/4 (OPTIONAL) CARLINK ASCL2 (OPTIONAL) NOTICE BEFORE INSTALLATION The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either 1- Connect module to computer damage to the vehicle itself or to the installed device.
  • Page 2 Trax Flip-Key AT 13-16 1 • • • • • • • • • • • • • • * Available only if vehicle is equipped with factory hood switch. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 3 Yukon STD Key AT without OnStar AT 15-16 3 • • • • • • • • • • * Available only if vehicle is equipped with factory hood switch. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 4 CONTACT YOUR AUTHORIZED DEALER, IF THIS CABLE IS NOT INCLUDED. WHITE WARNING STICKER WEBLINK CABLE (required accessory sold separately) WEBLINK CABLE MODULE COMPUTER WEBLINK PORT USB PORT 4 PIN BLACK CABLE U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 5 TELEMATIC KIT (accessories sold separately) FLHRNTM CARLINK MODULE TELEMATIC PORT (NC) TELEMATIC KIT (accessories sold separately) FLHRNTM PN 4120260 CAR CONNECTION OBDII CONNECTOR MODULE TELEMATIC PORT VEHICLE (NC) OBDII PORT U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 6 16 pin 01 Green (DATA) OBDII Trax Flip-Key 13-16 Parking Light White 26 pin 22 Green/Gray BCM, left side of steering column * Early production. ** Late production. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 7 16 pin 01 Green (DATA) OBDII Terrain Flip-Key 10-17 Parking Light White 26 pin 22 LtBlue BCM, left side of steering column * Early production. ** Late production. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 8 12 DKGREEN/GREEN (NC) HORN (-) OPTIONAL 04 GRAY/WHITE - HOOD STATUS (-) INPUT WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 9 STD Key 15-16 Accessory Green 06 pin 03 Purple/Yellow Ignition connector with OnStar Green 06 pin 04 Red/Blue Ignition connector Green 06 pin 05 White/Purple (MUX) Ignition connector U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 10 STD Key 15-16 with OnStar Accessory Green 06 pin 03 Purple/Yellow Ignition connector Green 06 pin 04 Red/Blue Ignition connector Green 06 pin 05 White/Purple (MUX) Ignition connector U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 11 04 GRAY/WHITE - HOOD STATUS (-) INPUT WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO VEHICLE AFTERMARKET HOOD SWITCH PARKING LIGHT (-) HORN (-) OPTIONAL AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 12 05 White/Purple (MUX) Ignition connector Lock Blue 27 pin 19 Brown/Yellow BCM, left side of steering column Unlock Blue 27 pin 15 Brown/White BCM, left side of steering column U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 13 05 White/Purple (MUX) Ignition connector Lock Blue 27 pin 19 Brown/Yellow BCM, left side of steering column Unlock Blue 27 pin 15 Brown/White BCM, left side of steering column U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 14 OBDII INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH GREEN/WHITE - SWC (DATA) OUTPUT SWC (DATA) - 01 OPTIONAL VEHICLE AFTERMARKET HOOD SWITCH (-) PARKING LIGHT (-) HORN (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 15 OBDII connector with OnStar 15-16 Lock Blue 27 pin 19 Brown/Yellow BCM, left side of steering column Unlock Blue 27 pin 15 Brown/White BCM, left side of steering column U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 16 INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH 5 6 7 8 10 11 12 13 14 16 17 20 21 AFTERMARKET HOOD SWITCH (-) 22 23 24 25 26 27 U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 17 Turn key to OFF position. Turn key to OFF position. Module Programming Procedure completed. START START Remove key. Remove key. START START LED will turn solid RED. Insert key into ignition. START U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 18 ENGINE START STOP Wait, LED 1 will turn solid RED for 2 seconds. Set ignition to OFF position. ON START ENGINE START STOP Valet Mode Programming Procedure completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 19 DOC.: #40640 AFTERMARKET REMOTE PROGRAMMING: NOTES I All aftermarket remotes must be programmed to the RF-Kit. Refer to the RF-Kit user guide for aftermarket remote features and programming procedures. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 20 Navigation and redo the Module Navigation vehicle battery. indicates. LED 1 will fl ash GREEN an equal Procedure. amount of times continuously. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 21 02 SEC 05 SEC 08 SEC 10 SEC WAIT TO START DELAY 15 SEC 20 SEC 25 SEC 30 SEC *Vehicle will shutdown when a door is opened. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 22 LOCK + UNLOCK + START CONFIGURATION DOUBLE LOCK + START 30 mSEC HORN CHIRPS WIDTH 15 mSec 60 mSec 02-07 Technical Support only *Vehicle will shutdown when a door is opened. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 23 Vehicle is moving (VSS). Glow plug timeout error. RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence. CAN communication failure during RS sequence. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 24 False ground when running status from remote starter. WITH IGNITION OFF Solid GREEN then OFF Reset in progress. Module at rest and ready for a remote start sequence. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 25 DTC or a CHECK ENGINE error message. connector. Wait, LED 1 will flash RED. RELEASE programming button. LED 1 will turn RED for 2 seconds. Module RESET completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
  • Page 26 ¨ NO: Verify the remote programming, the RF connections and check the remote start error ¨ codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2017 FLC-GM(RS)-GM7-[FLRSGM7]-EN www.flashlogic.com...
