FlashLogic FLRSCH5 Install Manual page 20

01
Disconnect all connectors from module except
the BLACK 20-PIN connector.
02
Disconnect the BLACK 20-PIN connector.
03
PRESS AND HOLD programming button while
connecting the BLACK 20-PIN connector.
04
Wait, LED 1 will flash RED. RELEASE
programming button.
05
LED 1 will turn RED for 2 seconds.
06
Module RESET completed.
Automotive Data Solutions Inc. © 2013

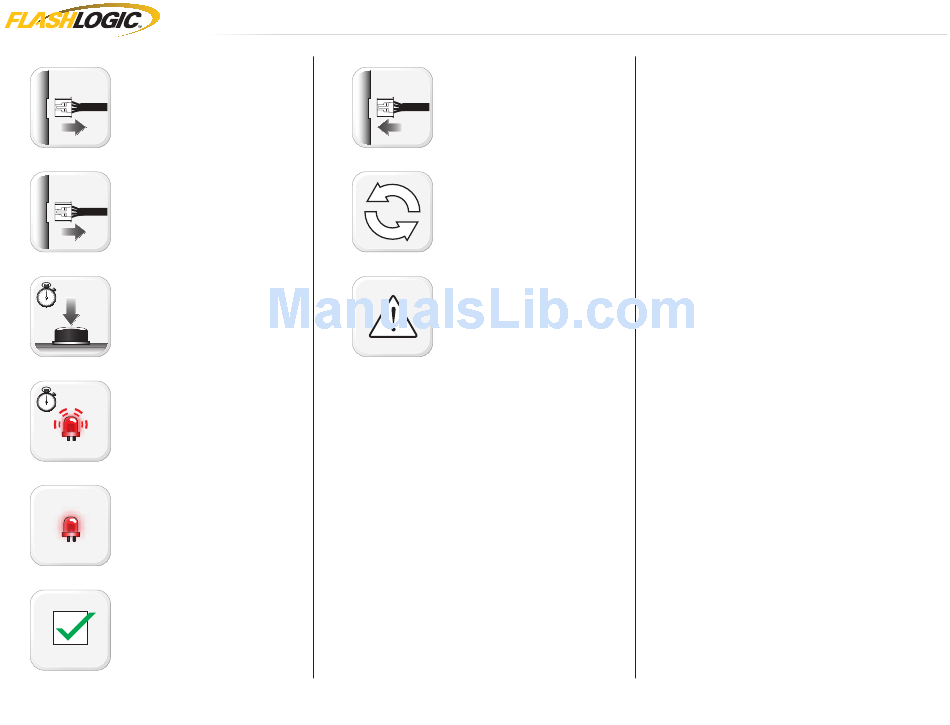

MODULE RESET PROCEDURE - 1 OF 1
07
Reconnect all connectors.
08
Repeat programming procedure.
>>
Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.
OEM-CH(RS)-CH5-[FLRSCH5]-EN
Page 20 oF 21
• 20131125
DOC.: #13103
