Delphi DEA600 Owner's Manual page 7

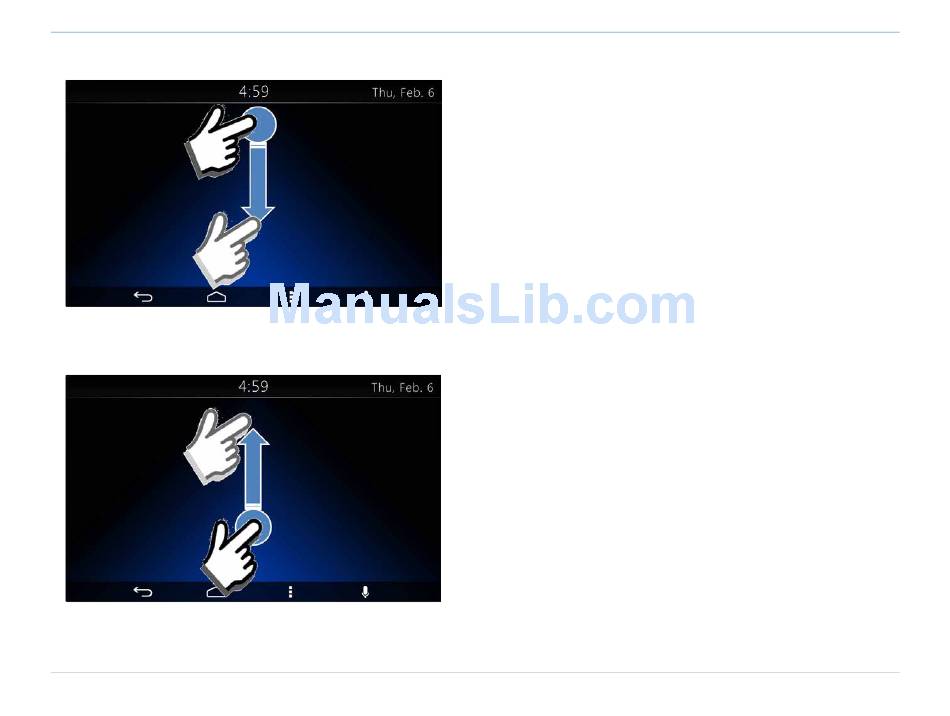

The next top screen is presented once the system senses a Swipe Down
action.
Figure 4: Swipe down action presents up screen.
The next bottom screen is presented once the system senses a Swipe Up
action.
Figure 5: Swipe up action presents down screen.
Owner´s Manual DEA600 Radio
Home screen & Navigation buttons
The installed application icons are presented at the home screen. The home
screen is distributed in a main screen and subsequent home screens.
Each of the home screens present 6 application icons maximum plus the
Audio widget. The number of the subsequent home screens is relative to the
number of installed applications. Each subsequent home screen is added to
the right of the main home screen or next to the right of the last subsequent
home screen.
In the case the last subsequent home screen is reached and a swipe left
action is performed the system presents the main home screen. If a swipe
right action is performed from the main home screen the system presents
the last subsequent home screen.
An indicator identifies which home screen is displayed. The screen indicator
is placed below the top bar of the home screen.
Each application icon in the home screen work as the application activation
soft key.
At the top bar of each of the home screens the next information is presented
all the time if available:
When the system is turned OFF but IGN and Battery are connected, the
clock view illustrated on Figure 6 will be shown.
Clock
•
Alarm
•
Warning icons
•
Weather information
•
7 | P a g e
