Media Audio Control Soft keys

The system presents the next control soft keys as part of the Media sources
interface:
Play/Pause
Next
Previous
Repeat
Shuffle
Search
Views
The soft keys are placed at the bottom of the Audio App screen.
In the case the CD media, USB or the Bluetooth media source are selected,
the user interface is illustrated on the Figure 16.
The system senses a long press of the next soft key for 2 seconds in order
to activate the fast forward function. The system senses a long press of the
previous soft key for 2 seconds in order to activate the fast reverse function.
The system displays the track time bar located under the album artwork of
the file that is being played.

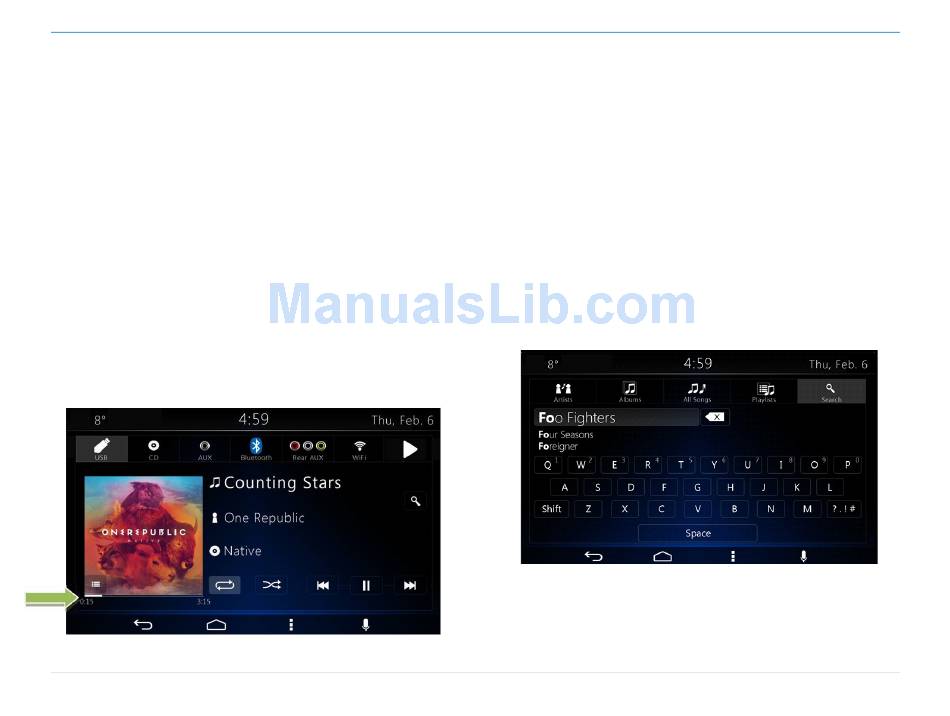

Figure 17: Track Time Bar
Owner´s Manual DEA600 Radio
In the case the USB media source is active the system indicates the type of
audio file displayed.
The Audio file is identified by one of the following options:
Search
If the Search soft key is selected the search screen is displayed with the
next elements:
The Keyboard works as the user-system interface to acquire the
alpha/numeric search. The white box displays the acquired information. The
system continue playing audio while performing the search. The Figure 18
illustrates the search screen.
Views
The system displays the current playing view as default. The system
presents the next view options once the Views soft key is selected.
Song
Album
White Box
Keyboard
Figure 18: The Search screen
12 |
P a g e
