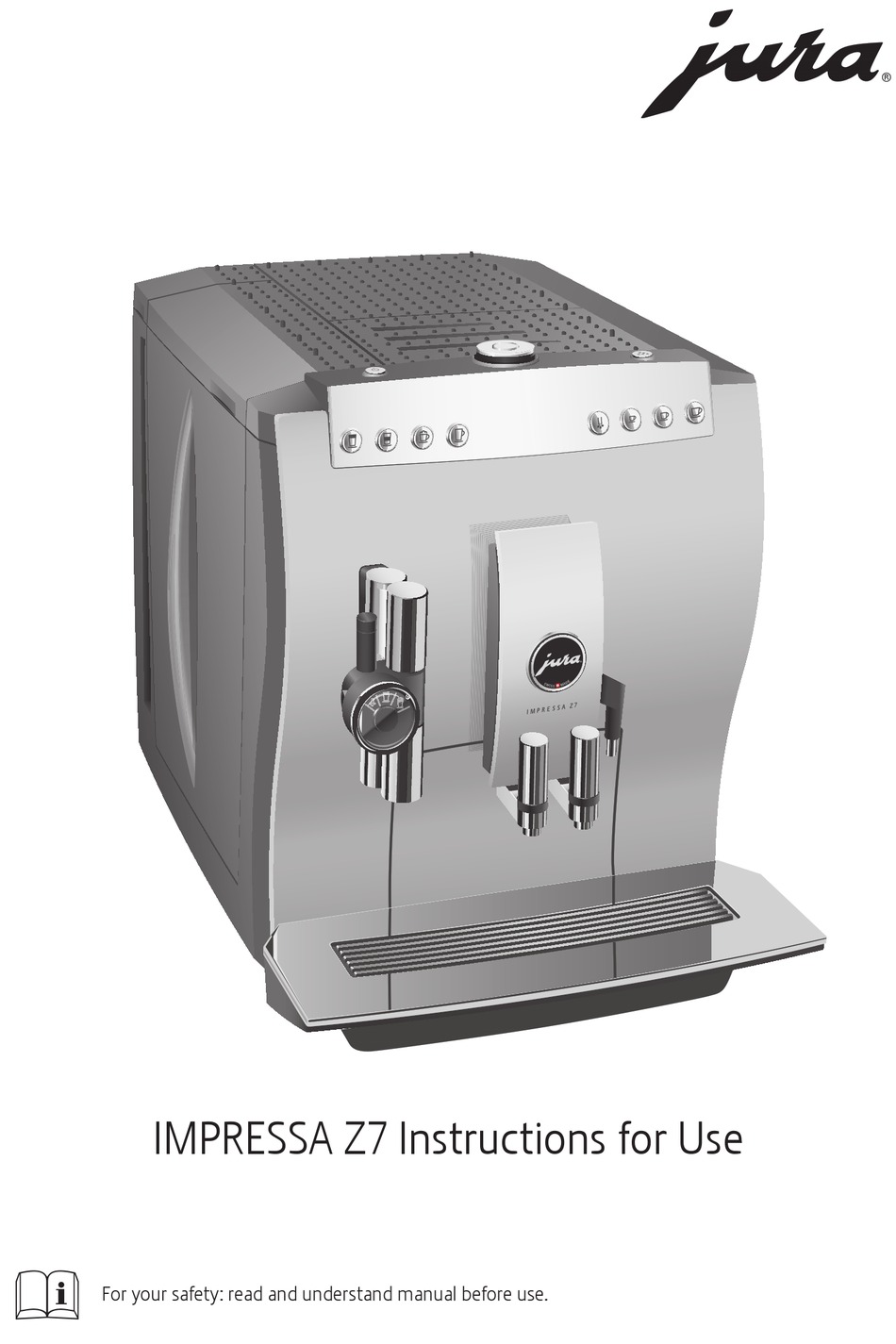

IMPRESSA Z7 Instructions for Use
K
E
For your safety: read and understand manual before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPRESSA Z7 and is the answer not in the manual?

Questions and answers

Related Manuals for Jura IMPRESSA Z7

Summary of Contents for Jura IMPRESSA Z7

  • Page 1 IMPRESSA Z7 Instructions for Use For your safety: read and understand manual before use.

  • Page 2: Table Of Contents

    Table of contents Your IMPRESSA Z7 IMPORTANT SAFEGUARDS Control elements 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the water tank ...........................10 Filling the bean container ..........................11 First-time use ..............................11 Inserting and activating the filter ......................12...
  • Page 3 Transport / Emptying the system ......................47 Disposal ................................. 47 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings This is the safety alert symbol. lt is used to alert you to potential personal injury hazards.

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS IMPORTANT SAFEGUARDS Follow the basic safety When using electrical appliances, basic safety precautions shall precautions always be followed, to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Read all instructions. Do not touch hot surfaces. Use handles or knobs. To protect against fire, electric shock and injury to persons, do not immerse power cord, plugs, or body of machine in water or other liquid.
  • Page 5 Use for any other purpose will be deemed improper. JURA Elektroapparate AG cannot accept any responsibility for the consequences of improper use. People, including children, who...
  • Page 6 In the event of signs of damage, for example if there is a smell of burning, unplug the machine immediately from outlet and contact JURA customer service. J CAUTION This appliance is for household use. Any servicing other than clea-...
  • Page 7 IMPORTANT SAFEGUARDS NEVER DO Never fill instant coffee, chocolate mix etc. into the bean con- (or you will void your tainer or ground coffee funnel (filler funnel for ground coffee). warranty protection): It will damage the functioning of the brewing chamber. Never fill sugar coated coffee beans into the bean container.

  • Page 8: Control Elements

    Control elements Control elements J HOT J HOT J HOT Figure: Your machine may look different to the one shown. Bean container cover Grinder adjustment switch Water tank cover Bean container with aroma preservation Water tank cover Power switch and power cord Filler funnel for ground coffee (side view) Hot-water spout...
  • Page 9 Control elements On/Off button Milk button Rotary Switch Latte Macchiato button Maintenance button Cappuccino button Special Coffee button Display Hot Water button 10 u Ristretto button 11 i Espresso button 12 o Coffee button...

  • Page 10: Preparing And Using For The First Time

    JURA on the Internet Visit us on the internet. You can download short operating instructions for your machine from the JURA website www.jura.com. You will also find interesting and up-to-date information on your IMPRESSA and on every aspect of coffee.

  • Page 11: Filling The Bean Container

    1 Preparing and using for the first time Filling the bean container The bean container has an aroma preservation cover. This will ensure that your coffee beans retain their aroma for longer. NOTICE Coffee beans which have been treated with additives (e.g. sugar), ground coffee or freeze-dried coffee will damage the grinder.

  • Page 12: Inserting And Activating The Filter

    T Press the Maintenance button. , the system fills up with water. The oper- SYSTEM FILLS ation stops automatically and WELCOME TO JURA appears on the display. UNIT IS HEATING , the Maintenance button c lights up. PRESS RINSE T Place a receptacle under the coffee spout.

  • Page 13: Determining And Adjusting The Water Hardness

    1 Preparing and using for the first time T Open the filter holder and insert the filter cartridge into the water tank, exerting slight pressure. T Close the filter holder. It will click into place audibly. After three months, the filter will cease to work. You can check the elapsed time by referring to the date plate on the filter holder in the water tank.
  • Page 14 1 Preparing and using for the first time Level Display German Degrees of general Parts per Indicator Strip Degree hardness million number of (°dH) (°dGH) (ppm) ‘reddish’ fields Not active – – – – Very soft water <3 <3 < 53.4 None Soft water >...

  • Page 15: Adjusting The Grinder

    1 Preparing and using for the first time Adjusting the grinder You can adjust the grinder on a continuous scale to suit the degree of roast of your coffee. NOTICE If you adjust the consistency of grind when the grinder is not oper- ating, the grinder adjustment switch could be damaged.

  • Page 16: Preparation

    2 Preparation 2 Preparation J WARNING Hot coffee, hot steam and hot water can cause scalding. Scalding is a serious burn. Use extreme care when handling hot liquid or steam. Allow liquid to cool down before drinking. In the event of scalding, rinse affected area with cold water and seek medical attention.

  • Page 17: Preparing Two Specialty Coffees At The Touch Of A Button

    2 Preparation Preparing two specialty To prepare two cups of coffee: Place two cups under the coffee coffees at the touch of a spout. Press the Coffee button twice o (within two seconds) to button start coffee preparation. Special coffee Example: Proceed as follows to prepare one special coffee.

  • Page 18: Hot Milk And Milk Foam

    2 Preparation There is a short interval while the hot milk separates from the milk foam. This allows the typical layers of a latte macchiato to form. You can choose the length of this interval in program- ming mode (see Chapter 4 ‘Permanent settings in program- ming mode –...

  • Page 19: Permanently Setting The Amount Of Water For The Cup Size

    2 Preparation Never add more than two level measuring spoons of ground coffee. Use ground coffee which is not ground too finely. Very fine coffee can block up the system so that the coffee only comes out in drips. If you did not fill the machine with a sufficient amount of ground coffee, is displayed PRE-GROUND...

  • Page 20: Hot Water

    2 Preparation Example: Proceed as follows to permanently set the amount of water for one coffee. Precondition: is displayed. COFFEE READY T Place a cup under the coffee spout. o T Press and hold the Coffee button. and the coffee strength is displayed. 1 COFFEE o T Hold the Coffee button down until ENOUGH ?

  • Page 21: Daily Operation

    T Wipe the surface of the machine with a clean, soft, damp cloth (e.g. microfiber cloth). In the interests of hygiene, we recommend changing the milk pipe on a regular basis (approximately every 3 months). Replacement pipes are available from specialized dealers (JURA original accessory set for frothers).

  • Page 22: Switching Off

    3 Daily operation Switching off When you switch your IMPRESSA off, the spouts used to prepare a specialty coffee are rinsed. T Place a receptacle under the coffee spout and another under the cappuccino frother. Q T Press the On/Off button. , the spouts used to prepare a specialty coffee or GOODBYE milk are rinsed.

  • Page 23: Permanent Settings In Programming Mode

    4 Permanent settings in programming mode 4 Permanent settings in programming mode J WARNING Hot coffee, hot steam and hot water can cause scalding. Scalding is a serious burn. Use extreme care when handling hot liquid or steam. Allow liquid to cool down before drinking. In the event of scalding, rinse affected area with cold water an seek medical attention.

  • Page 24: Products

    4 Permanent settings in programming mode Program item Sub-item Explanation T Select an energy-saving mode. ENERGY SAVE NO SAVE LEVEL1 SAVE LEVEL2 T Set the time after which the IMPRESSA OFF AFTER 15 MIN 30 MIN – should switch off automatically. 1 HRS 15 HRS T Change the settings for the switch-on RINSES...
  • Page 25 4 Permanent settings in programming mode The following permanent settings can be made: Product Temperature Coffee strength Amount 1 ristretto, approx. 183 °F (84 °C) Amount of water: XMILD ö 1 espresso, approx. 188 °F (87 °C) – NORMAL MILD öö 0.5 OZ 8.0 OZ 1 coffee,...
  • Page 26 4 Permanent settings in programming mode Next select the button of the product for which you would like to make settings. No product is prepared at this point. To change the setting for a double product, press the corre- sponding button twice within two seconds. q T Press the Latte Macchiato button.

  • Page 27: Energy-Saving Mode

    4 Permanent settings in programming mode k T Press the Rotary Switch to exit the program item. PRODUCTS g T Turn the Rotary Switch until is displayed. EXIT k T Press the Rotary Switch to exit programming mode. COFFEE READY Energy-saving mode In the program item you can permanently set an energy-...

  • Page 28: Automatic Switch-Off

    4 Permanent settings in programming mode Automatic switch-off By instructing your IMPRESSA to automatically switch itself off, you can cut down your energy consumption. If this function is activated, your IMPRESSA switches off automatically after the preset time fol- lowing the last action on the machine. You can set the automatic switch-off to 15 minutes, 30 minutes or 1 –...

  • Page 29: Rename

    4 Permanent settings in programming mode Example: Proceed as follows to make the machine prompt you to perform the cappuccino rinse immediately after preparing a milk product. Precondition: is displayed. COFFEE READY k T Press and hold the Rotary Switch until MAINTENANCE appears.

  • Page 30: Logo

    The available logos include: JURA logo Animated coffee cup No logo ( NOT ACTIVE Example: Proceed as follows to display the JURA logo. Precondition: is displayed. COFFEE READY k T Press and hold the Rotary Switch until MAINTENANCE appears.

  • Page 31: Restore Factory Settings

    4 Permanent settings in programming mode g T Turn the Rotary Switch until is displayed. LOGO JURA k T Press the Rotary Switch to confirm the setting. appears briefly on the display. CONFIRMED LOGO JURA g T Turn the Rotary Switch until is displayed.

  • Page 32: Viewing Information And Maintenance Status

    4 Permanent settings in programming mode k T Press the Rotary Switch to exit the program item. RESET g T Turn the Rotary Switch until is displayed. EXIT k T Press the Rotary Switch to exit programming mode. COFFEE READY Viewing information and In the program item you can view the following...

  • Page 33: Language

    4 Permanent settings in programming mode Precondition: is displayed. COFFEE READY k T Press and hold the Rotary Switch until MAINTENANCE appears. g T Turn the Rotary Switch until SETTINGS UNIT OZ displayed. k T Press the Rotary Switch to enter the program item. SETTINGS UNIT OZ g T Turn the Rotary Switch until...

  • Page 34: Maintenance

    5 Maintenance 5 Maintenance J WARNING Use of maintenance products that are harmful to health and dis- charge of liquids during maintenance program. Harmful if swal- lowed. Irritating to eyes and skin. Keep children AWAY. Keep children away from the machine while it is performing a maintenance program.

  • Page 35: Rinsing The Cappuccino Frother

    Non-recommended cleaning agents will not optimally remove milk residues. This may cause the cappuccino frother to become blocked and fly off the machine. Discharge of hot steam. Use only original JURA milk system cleaner. J WARNING Harmful and irritating cleaning agent. Harmful if swallowed. Irritat- ing to eyes and skin.

  • Page 36: Dismantling And Rinsing The Cappuccino Frother

    5 Maintenance JURA milk system cleaner is available from specialized dealers. Precondition: is displayed. COFFEE READY k T Press and hold the Rotary Switch until MAINTENANCE appears. k T Press the Rotary Switch to enter the program item. CAPPUCCINO CLEAN k T Press the Rotary Switch.

  • Page 37: Changing The Filter

    5 Maintenance Changing the filter After 2000 oz (60 liters) of water have flowed through, the fil- ter will cease to work. Your IMPRESSA will automatically prompt you to change the filter. After three months, the filter will cease to work. You can check the elapsed time by referring to the date plate on the filter holder in the water tank.

  • Page 38: Cleaning The Machine

    J WARNING Non-recommended (e.g. liquid) cleaning agents may contain sub- stances that could damage the machine or leave residues. Use only original JURA cleaning tablets. These are specially formulated for your machine. J WARNING Harmful and irritating cleaning agent. Harmful if swallowed. Irritat- ing to eyes and skin.

  • Page 39: Descaling The Machine

    T Open the cover of the bean container. T Open the cover of the filler funnel for ground coffee. T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel and the cover of the bean container.
  • Page 40 Allow the descaling program to run to the end. The descaling program lasts approximately 45 minutes. JURA descaling tablets are available from specialized dealers. If you use a CLEARYL Blue filter cartridge and this is activated, you will not be prompted to descale.
  • Page 41 5 Maintenance T Remove and empty the water tank. T Completely dissolve the contents of one blister (three JURA descaling tablets) in a receptacle holding 20 oz (600 ml) of water. This may take several minutes. T Pour the solution into the empty water tank and insert it into the machine.

  • Page 42: Cleaning The Bean Container

    5 Maintenance T Empty the drip tray and coffee grounds container and put them back into the machine. Descaling is now complete. The IMPRESSA heats up and is once more ready for use. If the descaling operation stops unexpectedly, rinse the water tank thoroughly.

  • Page 43: Display Messages

    6 Display messages 6 Display messages Message Cause/Result Action The water tank is empty. T Fill the water tank (see WATER TANK FILL You cannot prepare any Chapter 1 ‘Preparing and using products. for the first time – Filling the water tank’).

  • Page 44: Filter Change

    6 Display messages Message Cause/Result Action The IMPRESSA requests a T Press the Maintenance COFFEE READY cappuccino rinse. button to start the cappuccino CAPPU RINSE rinse. The filler funnel for ground T Fit the filler funnel. POWDERFUNNEL coffee is not fitted. The IMPRESSA is prompting T Perform cleaning (see COFFEE READY...

  • Page 45: Troubleshooting

    Grinder is making a very There are foreign objects in T Contact customer support in loud noise. the grinder. your country (see Chapter 11 ‘JURA contact details / Legal information’). is displayed. If the machine was exposed T Warm the machine at room ERROR 2 to the cold for a long period temperature.
  • Page 46 T Carefully tighten it using the hexagonal hole on the measuring spoon, turning by no more than a quarter of a rotation. If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).

  • Page 47: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying In order to protect the IMPRESSA from frost during transport, the the system system must be emptied. Precondition: is displayed. COFFEE READY k T Press and hold the Rotary Switch until MAINTENANCE appears.

  • Page 48: Technical Data

    9 Technical data 9 Technical data Voltage 120 V ~, 60 Hz Power 1350 W Safety test Energy consumption Approx. 23 Wh SAVE NO Energy consumption Approx. 16 Wh SAVE LEVEL1 Energy consumption Approx. 6 Wh SAVE LEVEL2 Pump pressure Static, max.

  • Page 49: Index

    Index 10 Index Customer support 52 Addresses 52 Automatic switch-off 28 Degree of water hardness 13 Descaling Bean container 8 Machine 39 Bean container with aroma preservation Water tank 42 Determining and adjusting the water cover 8 hardness 13 Cleaning 42 Display 9 Filling 11 Display messages 43...
  • Page 50 Index Restore factory settings 31 Rinses 28 JURA Unit for amount of water 32 Contact details 52 Internet 10 Rinses 28 Rinsing Knowledge Builder 10 Cappuccino frother 35 Machine 34 Language 33 Ristretto 16 Latte macchiato 17 Rotary Switch 9...
  • Page 51 – intentionally blank –...

  • Page 52: Jura Contact Details / Legal Information

    J69358/Z7/US_en/201502 11 JURA contact details / Legal information 11 JURA contact details / Legal information Headquarters JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Switzerland USA: JURA Inc. Canada: FAEMA Customer Service Phone 1-800-220-5701 1-(855)-544-8600 E-Mail info@us.jura.com info@juracanada.ca Opening Hours (EST) Mon –...
