Summary of Contents for Handicare HIPPO

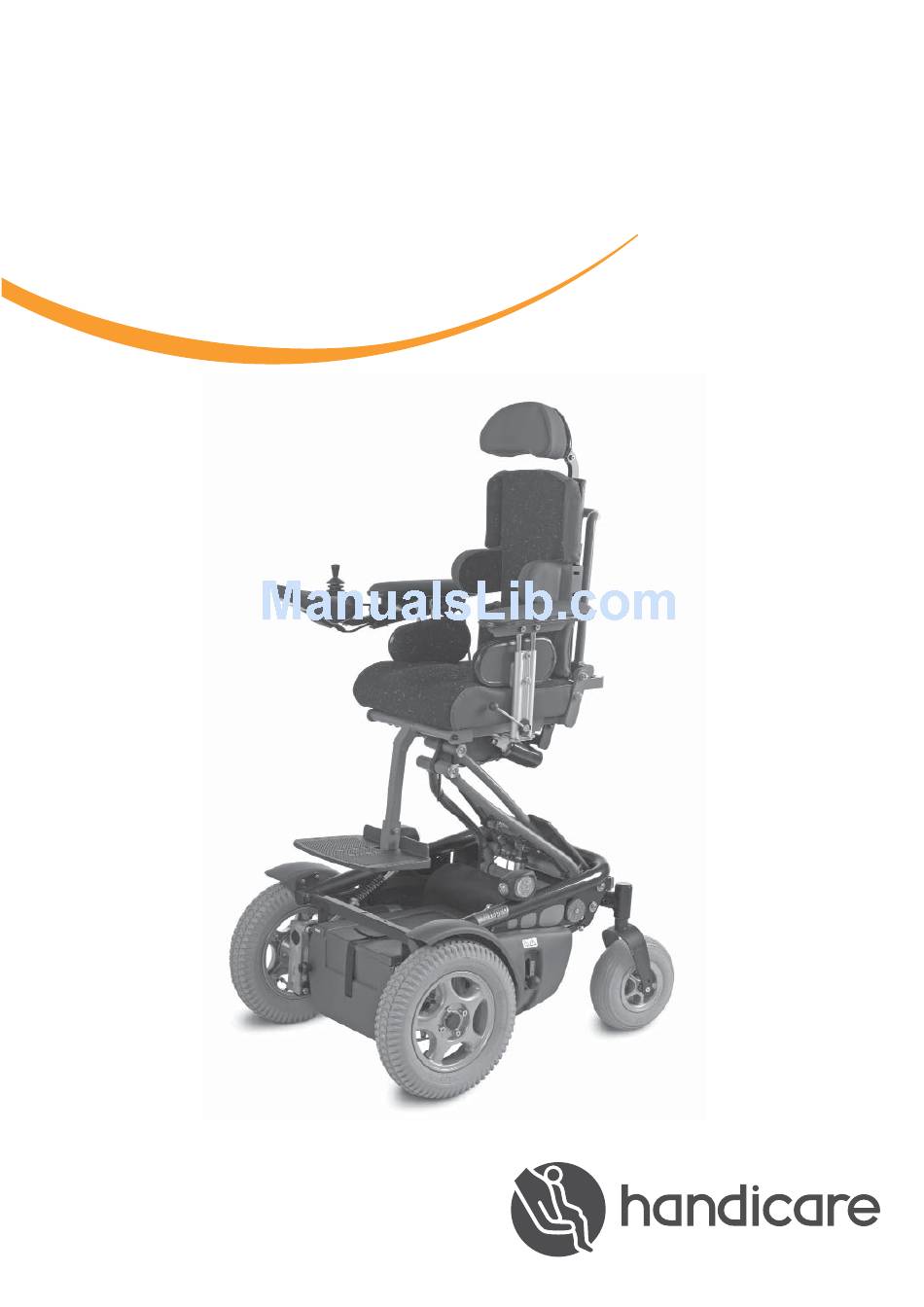

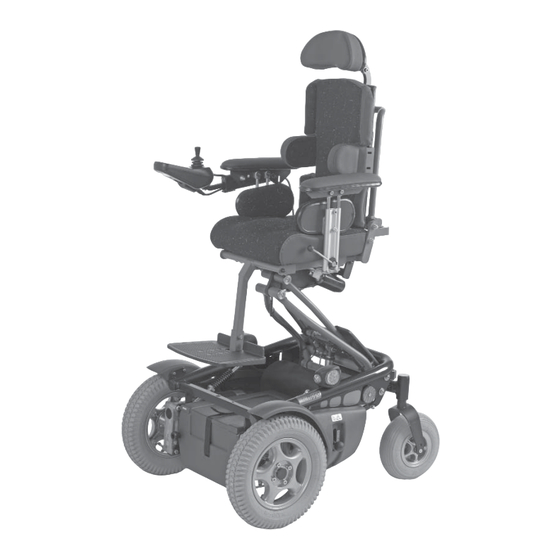

- Page 1 SERVICE MANUAL HIPPO...
- Page 2 Handicare executes a policy of continuous improvement and reserves the right to changes and modifi cations. The information provided is valid for the product in its standard version. Handicare cannot be held liable for possible damage resulting from specifi cations of the product deviating from the standard confi guration.
-
Page 3: Table Of Contents
HIPPO Spare parts ................................4 Use of the parts lists Carrier 01 Carrier and motors - version 2 02 Covers and lighting - version 2 Seat adjustments 03 Electrical tilt and electrical high / low - version 3 Seating frames... -
Page 4: Spare Parts
Hippo Spare parts 1.1 Use of the parts lists This document is meant as a reference book to be used to order parts for the Hippo. How to order: When ordering parts, please specify: • Serial number (see the identifi cation plate) •... -
Page 5: Carrier
Fork, 17 mm 11060 Handle, EMD motor (VH10000 = handle incl. knob) 1010153 Handle, Schmid motor 71016L Plate, directional stabilizer, left, Hippo 71016R Plate, directional stabilizer, right, Hippo 21045 Stainless steel rail for directional stabilizer 21047 Ring for directional stabilizer... - Page 6 Ball bearing 608 2rs 91116 Bronze bearing for directional stabilizer AC20410 Spring strut, standard, L=215 1009232 Spring strut, Hippo with Schmid motors 71000-V2-bl Main frame Hippo V2 Bleu 71000-V2-gr Main frame Hippo V2 Grey 71000-V2-or Main frame Hippo V2 Orange...
-
Page 7: Covers And Lighting - Version
Hippo Spare parts | 7 02 Covers and lighting - version 2 Article number Description 71007 Battery box shield, Hippo 71006 Battery box cover, Hippo 00001.1504 Refl ector, orange, self-adhesive, rectangular 71005 Side cover, Hippo, left 71004 Side cover, Hippo, right... -
Page 8: Seat Adjustments
Raise upper frame for Hippo (straight) 76102 Raise lower frame for Hippo (curved) 7000068 Frame for tilt, Hippo V3 1008532 Switch box for electrical lift, Hippo V3 with PG 1008545 Switch box for electrical lift, Hippo V3 with DX 7000075 Seat frame Kid-Fit V3 9009009... - Page 9 Hippo Spare parts | 9 Continued from 03 Electrical tilt and electrical high / low - version 3 Article number Description 91049 Slide bearing, plastic, 10 14x20x10 99165 Microswitch 00000.1404 Shaft lock washer 7mm 00000.7001 Plastic Washer M5 00000.5305 Bearing bush 10X12X6 Iglidur 00000.2801...
-
Page 10: Seating Frames
10 | Spare parts Hippo 1.4 Seating frames 04 Optimum Support System 30 cm Article number Description 1-22 SU11000 Optimum support system complete 30cm (without seat frame) 72107 OSS back holder, right 72106 OSS back holder, left 72108 OSS support holder, left... -
Page 11: Optimum Support System 35 Cm
Hippo Spare parts | 11 05 Optimum Support System 35 cm Article number Description 1-22 SU12000 Optimum support system complete 35cm (without seat frame) 72107 OSS back holder, right 72106 OSS back holder, left 72108 OSS support holder, left 72109... -
Page 12: Kid-Fi T 30 Cm
12 | Spare parts Hippo 06 Kid-fi t 30 cm Article number Description 72033 Back holder, Kid-Fit, left 72034 Back holder, Kid-Fit, right 72002 Seat depth adjustment, Kid-Fit 72003 Back frame, Kid-Fit 12043 Washer plate for one-off setting of backrest adjustment... -
Page 13: Kid-Fi T 35 Cm
Hippo Spare parts | 13 07 Kid-fi t 35 cm Article number Description 72033 Back holder, Kid-Fit, left 72034 Back holder, Kid-Fit, right 72002 Seat depth adjustment, Kid-Fit 72003 Back frame, Kid-Fit 12046 One-off adjustable backrest, outer U section, for Kid-Fit... -
Page 14: Armrests
14 | Spare parts Hippo 1.5 Armrests 08 Armrest with remote Article number Description 42203 Armrest release, left/right 72008 Bar, height adjustment for armrest, Kid-Fit 42204 Locking plate for armrest release 15407 Side cushion, Pediatric 77004 Side shield, Kid-Fit 42205... -
Page 15: Armrest Without Remote
Hippo Spare parts | 15 09 Armrest without remote Article number Description 42203 Armrest release, left/right 72008 Bar, height adjustment for armrest, Kid-Fit 12003 Armrest support 15407 Side cushion, Pediatric 77004 Side shield, Kid-Fit 42204 Locking plate for armrest release... -
Page 16: Legrests
16 | Spare parts Hippo 1.6 Legrests 10 Standard legrest 30 / 35 cm Article number Description 74019 Upper tube leg rest, Kid-Fit standard, right 74018 Upper tube leg rest, Kid-Fit standard, left 14006 Leg rest release lever, right 14005... -
Page 17: Comfort Legrest 30 / 35 Cm
Hippo Spare parts | 17 11 Comfort legrest 30 / 35 cm Article number Description 14005 Leg rest release lever, left 14006 Leg rest release lever, right 14036 Operating lever for comfort leg rest 14015 Leg rest head for comfort leg rest, left... - Page 18 18 | Spare parts Hippo Continued from 11 Comfort legrest 30 / 35 cm Article number Description BS12322L Comfort pediatric leg rest (Seat width 35) left BS12322R Comfort pediatric leg rest (Seat width 35) right BS12322 Comfort pediatric leg rests (Seat width 35) set...
-
Page 19: Electrical Legrest 30 / 35 Cm
Hippo Spare parts | 19 12 Electrical legrest 30 / 35 cm Article number Description 14037 Cover plate for powered leg rest 14034L Cable set, legrest left 14034R Cable set, legrest right 14011 Spring release lever, left 14014 Spring release lever, right... - Page 20 20 | Spare parts Hippo Continued from 12 Electrical legrest 30 / 35 cm Article number Description BS11320 Electrical pediatric leg rests (Seat width 30) set BS11325L Electrical pediatric leg rest (Seat width 35) left BS11325R Electrical pediatric leg rest (Seat width 35) right...
-
Page 21: Central Legrest
Leg rest tube for single central leg rest for Kid-Fit 74015 Sliding tube for footplate, single central leg rest, Kid-Fit 74025 Footplate bracket for single central leg rest, Hippo 14115 Bracket for single central mechanical leg rest (Kid-Fit) BS12000 Single central pediatric leg rest, right-angled, mechanical... -
Page 22: Legrest Holder
22 | Spare parts Hippo 14 Legrest holder Article number Description 14903 Mounting plate, leg rest bracket, powered adjustment, left 14904 Mounting plate, leg rest bracket, powered adjustment, right 14500 Hinge pin + lock nut 91077 Spacer bushing, 6.2x10.5 91035 Fork, M6x12 with 1 x diameter 10.1... -
Page 23: Mounting Plate For Legrest Holder
Hippo Spare parts | 23 15 Mounting plate for legrest holder Article number Description 14500 Hinge pin + lock nut 14033 Leg rest contact for mounting on leg rest bracket 8741160 Flat nut M6 14905 Mounting plate, powered leg rest bracket, left... -
Page 24: Specifi Cations
24 | Specifi cations Hippo Specifi cations 2.1 CE declaration of conformity The product is in conformity with the provisions of the Medical Devices Directive and carries the CE mark. The product also meets the following requirements and standards. This has been verifi ed by independent test organizations. -
Page 25: Warranty
Notwithstanding the rights and obligations of Handicare, Client and User set forth in Handicare’s general terms and conditions of sale, the rights of the Client and/or User towards Handicare in case of defects are limited to the provisions set forth in this warranty. - Page 26 26 | Hippo...
- Page 27 Page Draw Changes V1 2014 Created separate Hippo service manual and delete End of Service exploded views • Changed description and article number position 35: AC20410, Spring strut, standard, L=215 • Added article numbers 91127, 1003243, 1003242, 1011125 and 1011124 •...
