Summary of Contents for Microchip Technology MCP1650

  • Page 1: Evaluation Board

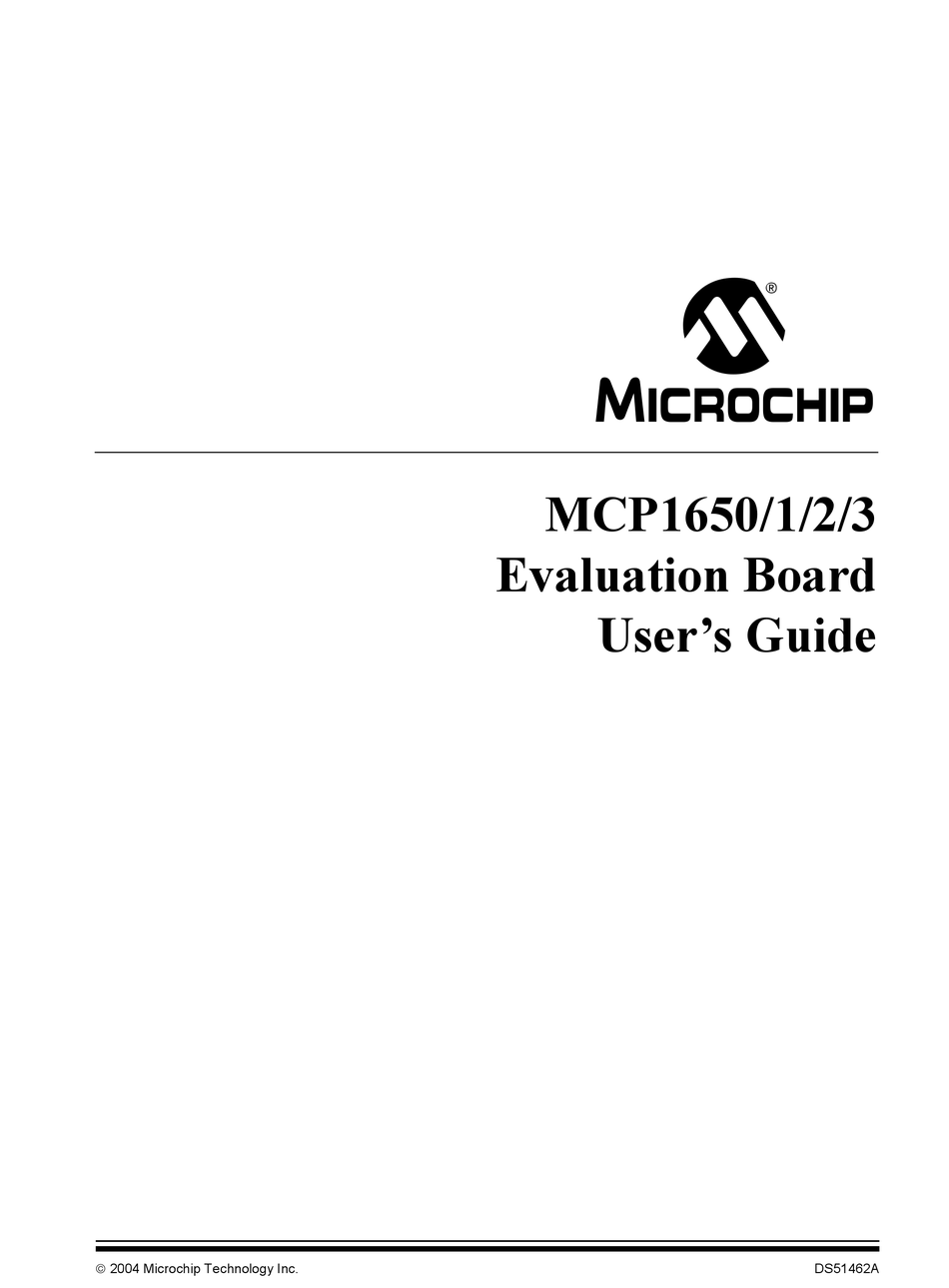

    MCP1650/1/2/3 Evaluation Board User’s Guide  2004 Microchip Technology Inc. DS51462A...
  • Page 2 MPSIM, PICkit, PICDEM, PICDEM.net, PICtail, PowerCal, PowerInfo, PowerMate, PowerTool, rfLAB, Select Mode, SmartSensor, SmartTel and Total Endurance are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. Serialized Quick Turn Programming (SQTP) is a service mark of Microchip Technology Incorporated in the U.S.A.
  • Page 3: Table Of Contents

    Preface ........................... 1 Chapter 1. Product Overview ..................3 Introduction and Highlights ................ 3 What the MCP1650 Boost Controller Evaluation Board Is ....... 3 What the MCP1650 Boost Controller Evaluation Board Includes ..... 3 Chapter 2. Installation and Operation ................5 Introduction ....................
  • Page 4 MCP1650/1/2/3 Evaluation Board User’s Guide NOTES:  2004 Microchip Technology Inc. DS51462A-page iv...
  • Page 5: Preface

    ABOUT THIS GUIDE Document Layout The User’s Guide layout is as follows: • Chapter 1: Product Overview – Important information about the MCP1650 Boost Controller Evaluation Board. • Chapter 2: Installation and Operation – This chapter includes instructions on how to get started with this demo board and a detailed description of each function of the demo board.
  • Page 6: Recommended Reading

    MCP1650/1/2/3 Evaluation Board User’s Guide RECOMMENDED READING For more information regarding the MCP1650/51/52/53 device, the following is recommended reading: MCP1650/51/52/53 Data Sheet, (DS21876) This data sheet provides detailed information regarding the MCP1650/51/52/53 product family. THE MICROCHIP INTERNET WEB SITE Microchip provides easy access to our documentation and on-line support through our World Wide Web Site at www.microchip.com.
  • Page 7: What The Mcp1650 Boost Controller Evaluation Board Is

    BOARD USER’S GUIDE Chapter 1. Product Overview INTRODUCTION AND HIGHLIGHTS This chapter provides an overview of the MCP1650 Boost Controller Evaluation Board and covers the following topics: • What the MCP1650 Boost Controller Evaluation Board Is • What the MCP1650 Boost Controller Evaluation Board includes...
  • Page 8 MCP1650/1/2/3 Evaluation Board User’s Guide NOTES:  2004 Microchip Technology Inc. DS51462A-page 4...
  • Page 9: Chapter 2. Installation And Operation

    MSOP package. The MCP1650 8-pin MSOP is the base device. The MCP1651 8-pin MSOP includes all of the features of the MCP1650, with the addition of a low battery detect and low battery output (LBO) indicator. The MCP1652 8-pin MSOP includes all of the features of the MCP1650, with the addition of a power good (PG) indicator.
  • Page 10 MCP1650/1/2/3 Evaluation Board User’s Guide - The Under Voltage Lockout (UVLO) feature will prevent the MCP1651 from starting the converter until the input voltage is above the minimum thresh- old. Once the input voltage is raised above the UVLO threshold, the converter will begin to boost the output voltage up to 5V.
  • Page 11 - The MCP1653 has a power good status indicator that will provide a visual indication (via a LED) when the output voltage of the application circuit is more than ±15% out of regulation. D4 will illuminate to indicate that the output voltage is out of regulation.  2004 Microchip Technology Inc. DS51462A-page 7...
  • Page 12 MCP1650/1/2/3 Evaluation Board User’s Guide NOTES:  2004 Microchip Technology Inc. DS51462A-page 8...
  • Page 13: Appendix A. Schematic And Layouts

    MCP1650/1/2/3 EVALUATION BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the schematics and layouts for the MCP1650 Boost Controller Evaluation Board. HIGHLIGHTS Diagrams included in this appendix: • Board Schematic • Board – Top Assembly • Board – Top Layer •...
  • Page 14: Board Schematic

    MCP1650/1/2/3 Evaluation Board User’s Guide BOARD SCHEMATIC  2004 Microchip Technology Inc. DS51462A-page 10...
  • Page 15: Board - Top Assembly

    Schematic and Layouts BOARD - TOP ASSEMBLY  2004 Microchip Technology Inc. DS51462A-page 11...
  • Page 16: Board - Top Layer

    MCP1650/1/2/3 Evaluation Board User’s Guide BOARD - TOP LAYER  2004 Microchip Technology Inc. DS51462A-page 12...
  • Page 17: Board - Bottom Layer

    Schematic and Layouts BOARD - BOTTOM LAYER  2004 Microchip Technology Inc. DS51462A-page 13...
  • Page 18 MCP1650/1/2/3 Evaluation Board User’s Guide NOTES:  2004 Microchip Technology Inc. DS51462A-page 14...
  • Page 19: Appendix B. Bill Of Materials (Bom)

    Microchip MCP1651R Technology Inc. Technology Inc. Boost Controller, MCP1653 Microchip Microchip MCP1653S Technology Inc. Technology Inc. ® B1, B2, B3, Bumpon, Hemisphere, .44x.20, Digi-Key /ESM SJ-5003 (BLACK) Black Note: SMT denotes surface-mount package  2004 Microchip Technology Inc. DS51462A-page 15...
  • Page 20 Tel: 81-45-471- 6166 Fax: 81-45-471-6122 Suite 22, 41 Rawson Street 505 Eskdale Road Epping 2121, NSW Winnersh Triangle Australia Wokingham Tel: 61-2-9868-6733 Berkshire, England RG41 5TU Fax: 61-2-9868-6755 Tel: 44-118-921-5869 Fax: 44-118-921-5820 02/17/04  2004 Microchip Technology Inc. DS51462A-page 16...
