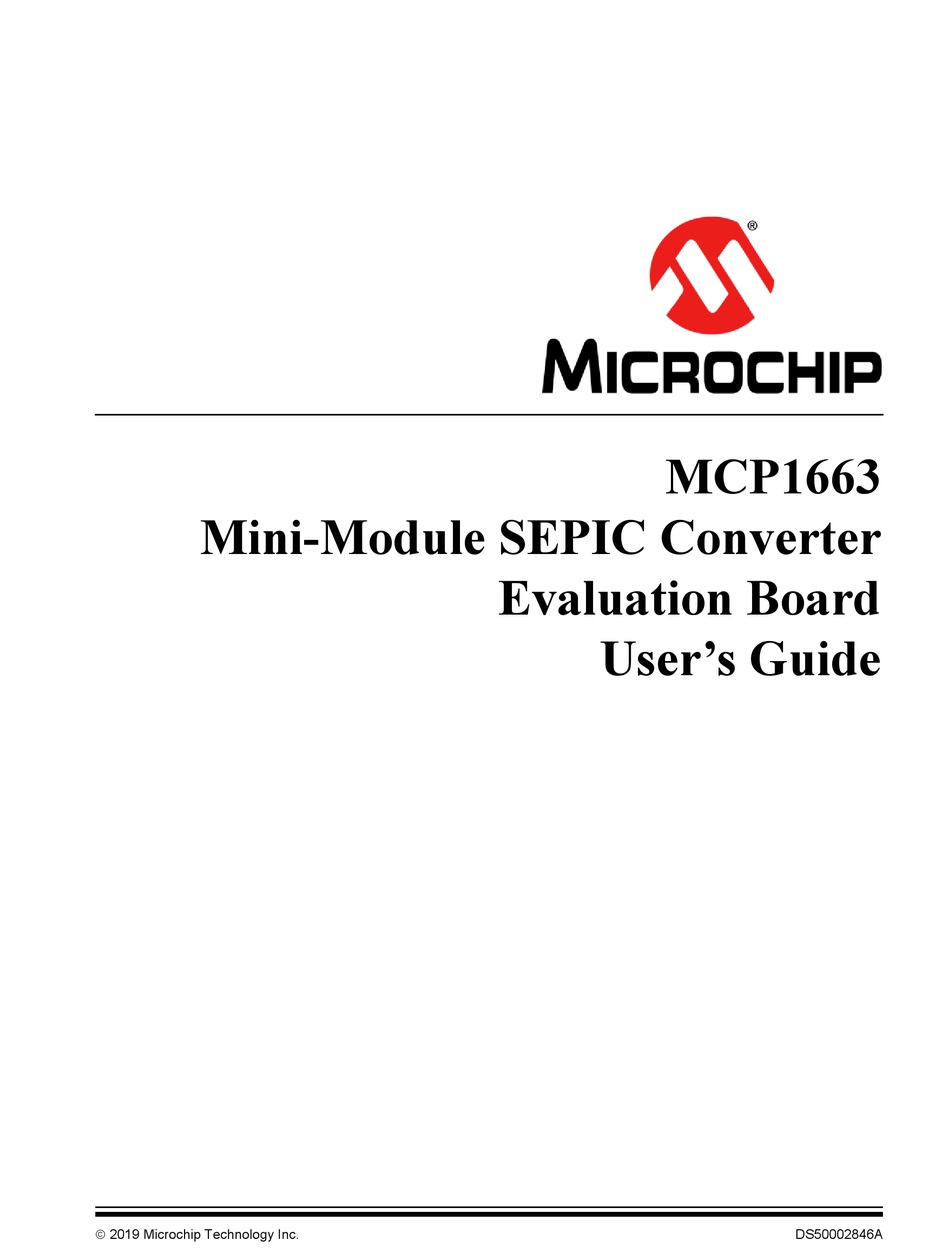

- Page 1 MCP1663 Mini-Module SEPIC Converter Evaluation Board User’s Guide 2019 Microchip Technology Inc. DS50002846A...
- Page 2 WiperLock, Wireless DNA, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and the U.S.A.
-
Page 3: Table Of Contents
Chapter 1. Product Overview 1.1 Introduction ..................... 7 1.2 MCP1663 Short Overview ................7 1.3 What is the MCP1663 Mini-Module SEPIC Converter Evaluation Board? ..8 1.4 What the MCP1663 Mini-Module SEPIC Converter Evaluation Board Kit Contains ....................9 Chapter 2. Installation and Operation 2.1 Introduction .................... -
Page 4: Preface
Customer Support • Document Revision History DOCUMENT LAYOUT This document describes how to use the MCP1663 Mini-Module SEPIC Converter Evaluation Board as a development tool. The manual layout is as follows: • Chapter 1. “Product Overview” – Important information about the MCP1663 Mini-Module SEPIC Converter Evaluation Board. -
Page 5: Conventions Used In This Guide
Curly brackets and pipe Choice of mutually exclusive errorlevel {0|1} character: { | } arguments; an OR selection Ellipses... Replaces repeated text var_name [, var_name...] Represents code supplied by void main (void) user { ... 2019 Microchip Technology Inc. DS50002846A-page 5... -
Page 6: Recommended Reading
Preface RECOMMENDED READING This user’s guide describes how to use the MCP1663 Mini-Module SEPIC Converter Evaluation Board. Other useful documents are listed below. The following Microchip documents are available and recommended as a supplemental reference resource: • MCP1663 Data Sheet – “High-Voltage Integrated Switch PWM Boost Regulator with UVLO”... -
Page 7: Chapter 1. Product Overview
(UVLO Start), and the operating input voltage ranges up to 5.5V. For standby applications, MCP1663 can be turned off by pulling the EN pin to GND. The device will stop switching and will consume 300 nA of input current. Note that, while in Shutdown mode, the input voltage will be bypassed to the output through the inductor and the Schottky diode. -
Page 8: What Is The Mcp1663 Mini-Module Sepic Converter Evaluation Board

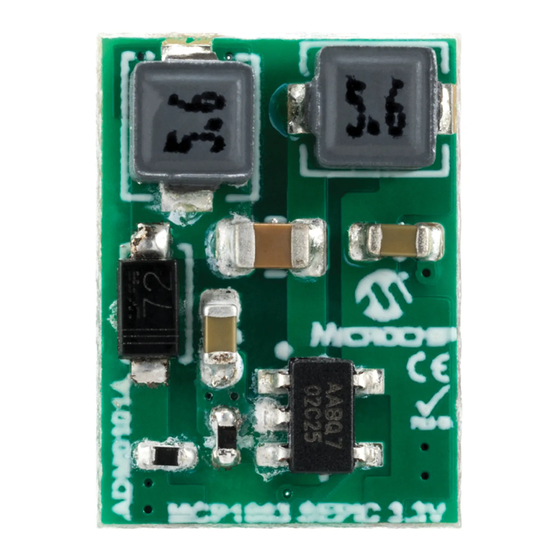

The MCP1663 Mini-Module SEPIC Converter Evaluation Board is used to evaluate Microchip Technology’s MCP1663 product. This board demonstrates the capabilities of the MCP1663 SEPIC converter, which has its output voltage set to 3.3V and is designed in a very small form factor (DDPAK package), as shown in Figure 1-2. -
Page 9: What The Mcp1663 Mini-Module Sepic Converter Evaluation Board Kit Contains
FIGURE 1-2: MCP1663 Mini-Module SEPIC Converter Evaluation Board. The MCP1663 Mini-Module SEPIC Converter Evaluation Board was developed to help engineers reduce the product design cycle time. Another important feature of this evaluation board is that it has the EN pin accessible and can be controlled from an MCU or another device. -
Page 10: Chapter 2. Installation And Operation
MCP1663 can regulate the output voltage up to 32V and can deliver 250 mA load at 3.3V input and 12V output. At light loads, MCP1663 skips pulses to keep the output ripple low. -
Page 11: Getting Started
GETTING STARTED The MCP1663 Mini-Module SEPIC Converter Evaluation Board is fully assembled and tested to evaluate the MCP1663 product and demonstrate its capabilities. This board requires the use of external laboratory power supplies and load. The mini-module’s performance was tested using a motherboard which includes a... - Page 12 Soldered pads are available in order to allow connecting a load. The peak current limit of the MCP1663 will provide a safe maximum current value. The maximum output cur- rent for the converter will vary with the input voltage, as shown in Figure 2-1.
- Page 13 1.6V, the output voltage of the mini-module should drop to around 0V. Board - Bottom Side Electronic Load/ V-meter V-meter Power Supply Resistive Load FIGURE 2-5: MCP1663 Mini-Module SEPIC Converter Evaluation Board Setup. 2019 Microchip Technology Inc. DS50002846A-page 13...
-
Page 14: Appendix A. Schematic And Layouts
MCP1663 MINI-MODULE SEPIC CONVERTER EVALUATION BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the following schematics and layouts for the MCP1663 Mini-Module SEPIC Converter Evaluation Board - ADM01014: • Board – Schematic • Board – Top Silk •... -
Page 15: Board - Schematic
BOARD – SCHEMATIC VOUT 5.6uH 4.7uF RB161MM-20TR 0805 5.6uH 2.2k 0402 MCP1663 10uF 10uF 0603 0603 1.3k 0402... -
Page 16: Board - Top Silk
Schematic and Layouts BOARD – TOP SILK BOARD – TOP COPPER AND SILK BOARD – TOP COPPER 2019 Microchip Technology Inc. DS50002846A-page 16... -
Page 17: Board - Bottom Copper
Schematic and Layouts BOARD – BOTTOM COPPER BOARD – BOTTOM COPPER AND SILK BOARD – BOTTOM SILK 2019 Microchip Technology Inc. DS50002846A-page 17... -
Page 18: Appendix B. Bill Of Materials (Bom)
Microchip Analog Switcher Boost 32V Microchip Technology MCP1663T-E/OT MCP1663T-E/OT SOT-23-5 Inc. Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components. 2019 Microchip Technology Inc. DS50002846A-page 18... -
Page 19: Worldwide Sales And Service
New York, NY Tel: 46-31-704-60-40 Tel: 631-435-6000 Sweden - Stockholm San Jose, CA Tel: 46-8-5090-4654 Tel: 408-735-9110 UK - Wokingham Tel: 408-436-4270 Tel: 44-118-921-5800 Canada - Toronto Fax: 44-118-921-5820 Tel: 905-695-1980 Fax: 905-695-2078 2019 Microchip Technology Inc. DS50002846A-page 19 05/14/19...
