- Page 1 100W LED Alu CW/WW User Manual Code: ELUM043...

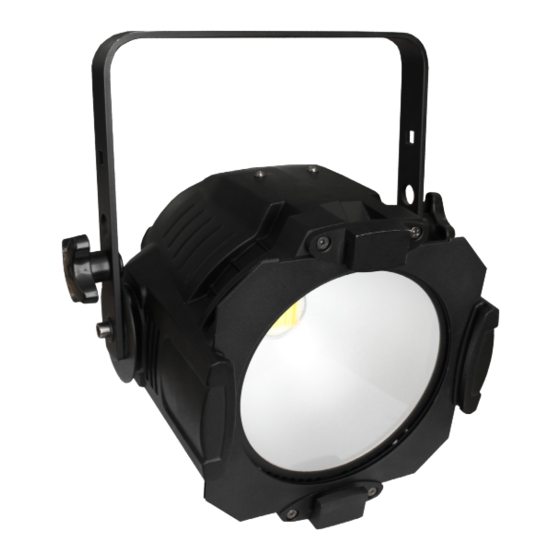

- Page 4 Overview: You should find inside the Elumen8 carton the following items: 1, 100W LED Alu CW/WW 2, Instruction manual, 3, Power Cable Technical Specifications: DMX channels: 2/5/ or 6 selectable 100W CW/WW LED Dimming, master/slave and DMX modes 400Hz refresh rate...
- Page 5 Operation: 1, Dimming Mode To enter the dimming mode, press the “MODE” button to show “DIMMER” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the brightness of the Cool White LEDs from 00-99.
- Page 6 DMX Charts 2 channel mode: Channel Value Function 0-255 Cool White Dimming 0-100% 0-255 Warm White Dimming 0-100% 5 channel mode: Channel Value Function 0-255 Cool White 0-255 Warm White 0-255 Master Dimmer 0-100% 0-255 Strobe (slow to fast) 0-255 17 Colour Temperature Macro Selector 6 channel mode: Channel...
- Page 7 DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out”...
- Page 8 • Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the correct cable conversion. www.elumen8.co.uk...
