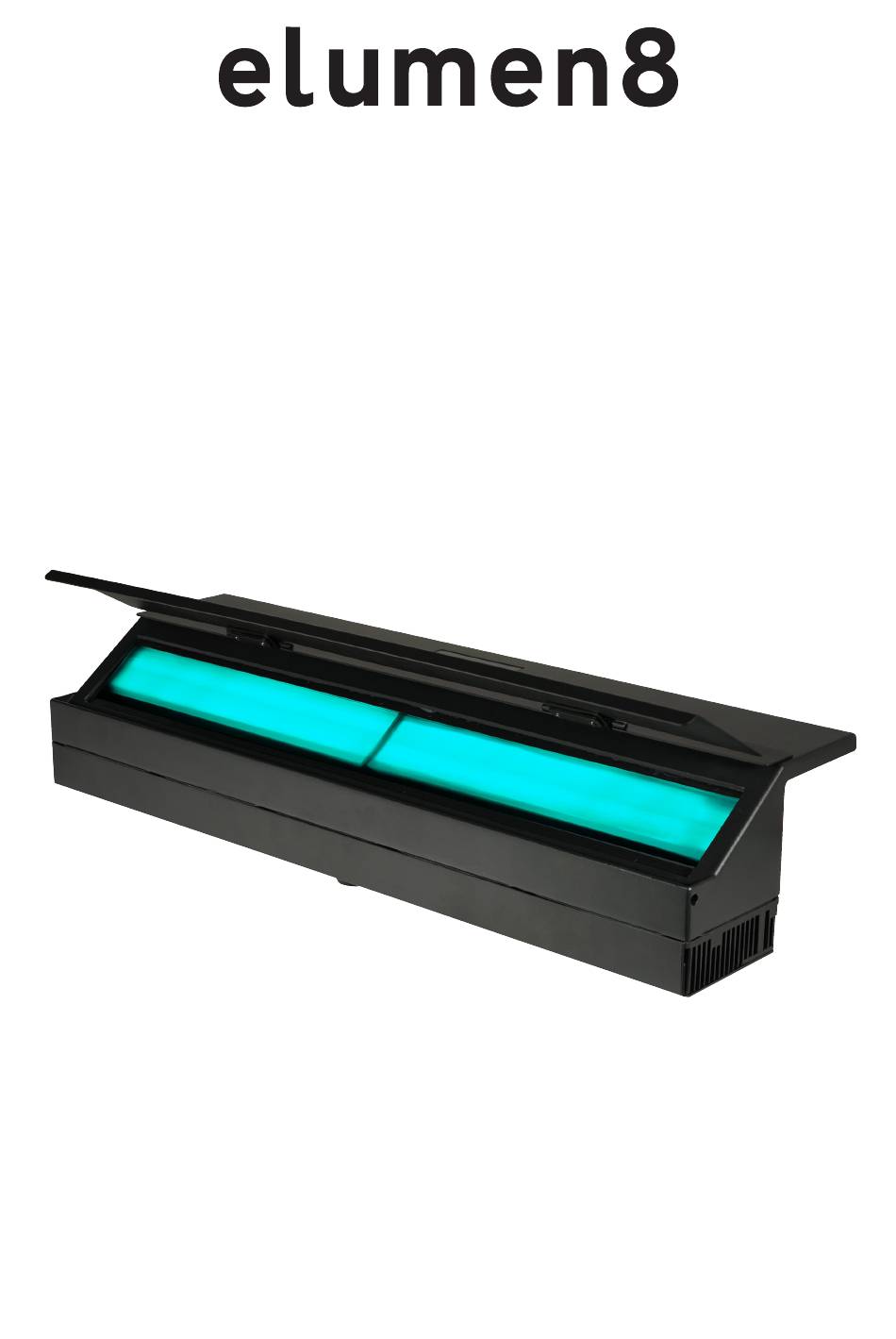

- Page 1 Virtuoso 700 CYC IP RGBALC User Manual Order code: ELUM137...
-
Page 2: Safety Advice
Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual... -
Page 3: Product Overview
1000 2124 Specifications Virtuoso 700 CYC IP RGBALC 70° Power consumption 180W Power supply 100~240V, 50/60Hz IP rating IP65 Fuse T2A 250V Dimensions 120 x 530 x 170mm Weight Order code ELUM137 www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual... -
Page 4: Technical Specifications
Technical specifications 530mm Virtuoso 700 CYC Virtuoso 700 CYC IP RGBALC IP RGBALC 170mm www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual... - Page 5 1 x safety wire 02 - Function buttons 05 - Eyebrow 08 - Central foot & 1 x power cable 03 - powerCON TRUE1 output 06 - 5-Pin DMX input 09 - Omega mounting points www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
-
Page 6: Installation
The installation should be checked annually by a qualified person. The Elumen8 Virtuoso 700 CYC IP RGBALC can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 7 1. Fasten the clamp to the fixtures bracket with a bolt and lock nut through one of the mounting holes. 2. Mount the fixture onto your truss system via the clamp and tighten to ensure secure. 3. Pull the safety cable through the fixture safety eye and around the truss. www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 8 IP Parameters CAUTION! WE ALWAYS RECOMMEND TESTING THE IP INTEGRITY AFTER LAMP REPLACEMENT/OPENING THE HOUSING, USING THE ELUMEN8 IP TESTER. CONTACT PROLIGHT SERVICE FOR MORE INFORMATION. Virtuoso 700 CYC IP RGBALC IP Testing Parameters Min. Max. Target Testing Acceptable Change...
- Page 9 AUTO 3 000-255 AUTO 4 000-255 AUTO 5 000-255 AUTO 6 000-255 AUTO Auto/custom programs PROGRAM AUTO 7 000-255 AUTO 8 000-255 AUTO 9 000-255 AUTO 10 000-255 PR 1 PR 2 www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 10 SAFETY LIGHT GREEN Safety light settings COLOUR BLUE WARM WHITE COOL WHITE FIXTURE HOURS Fixture hours VERSION VXXXXXXXXX Software version INFO 0X09a5XXXXXXXX Fixture UID VIRTUOSO 700 LABEL Fixture model CYC IP RGBALC www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 11 Colour temperature presets 000-009 No function 009-010 1800K 000-025 2200K 026-040 2700K 041-055 3000K 056-070 3200K 071-085 4000K 086-100 4500K 101-115 5000K 116-130 5600K 131-145 6000K 146-160 6500K 161-175 7000K 176-190 8000K 191-255 10000K www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 12 Random strobe (slow-fast) Control 000-100 No function 101-110 Dimmer Off 111-120 Dimmer Dim4 121-150 No function 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 All reset 211-255 No function www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 13 081-090 Auto 5 091-100 Auto 6 101-110 Auto 7 111-120 Auto 8 121-130 Auto 9 131-140 Auto 10 141-150 Custom 1 151-160 Custom 2 161-255 No function 000-255 Auto speed adjustment (slow-fast) www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 14 Auto 1 051-060 Auto 2 061-070 Auto 3 071-080 Auto 4 CH10 081-090 Auto 5 091-100 Auto 6 101-110 Auto 7 111-120 Auto 8 121-130 Auto 9 131-140 Auto 10 141-150 Custom 1 www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 15 116-130 5600K 121-150 No function 131-145 6000K 151-160 1200Hz CH20 146-160 6500K 161-170 2400Hz 161-175 7000K 171-180 4000Hz 176-190 8000K 181-190 6000Hz 191-255 10000K 191-200 25000Hz 201-210 All reset 211-255 No function www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 16 Pale Violet 181-185 Colour 36 L700 Perfect Lavender 186-190 Colour 37 Light Pink 191-195 Colour 38 L794 Pretty'n Pink 196-200 Colour 39 L328 Follies Pink 201-205 Colour 40 L795 Magical Magenta 206-210 www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 17 226-230 (cont.) Colour 45 L790 Moroccan Pink 231-235 Colour 46 L157 Pink 236-240 Colour 47 R332 Cherry Rose 241-245 Colour 48 L128 Cool LED Bright Pink 246-250 Blackout No Function Blackout 251-255 www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
-
Page 18: Dmx Setup
CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual... - Page 19 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
- Page 20 Virtuoso 700 CYC IP RGBALC IP RGBALC POWER CONSUMPTION: 180W POWER CONSUMPTION: 180W POWER SUPPLY: 100~240V, 50/60Hz POWER SUPPLY: 100~240V, 50/60Hz IP RATING: IP65 IP RATING: IP65 FUSE: T2A 250V FUSE: T2A 250V www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
-
Page 21: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Virtuoso 700 CYC IP RGBALC User Manual...
