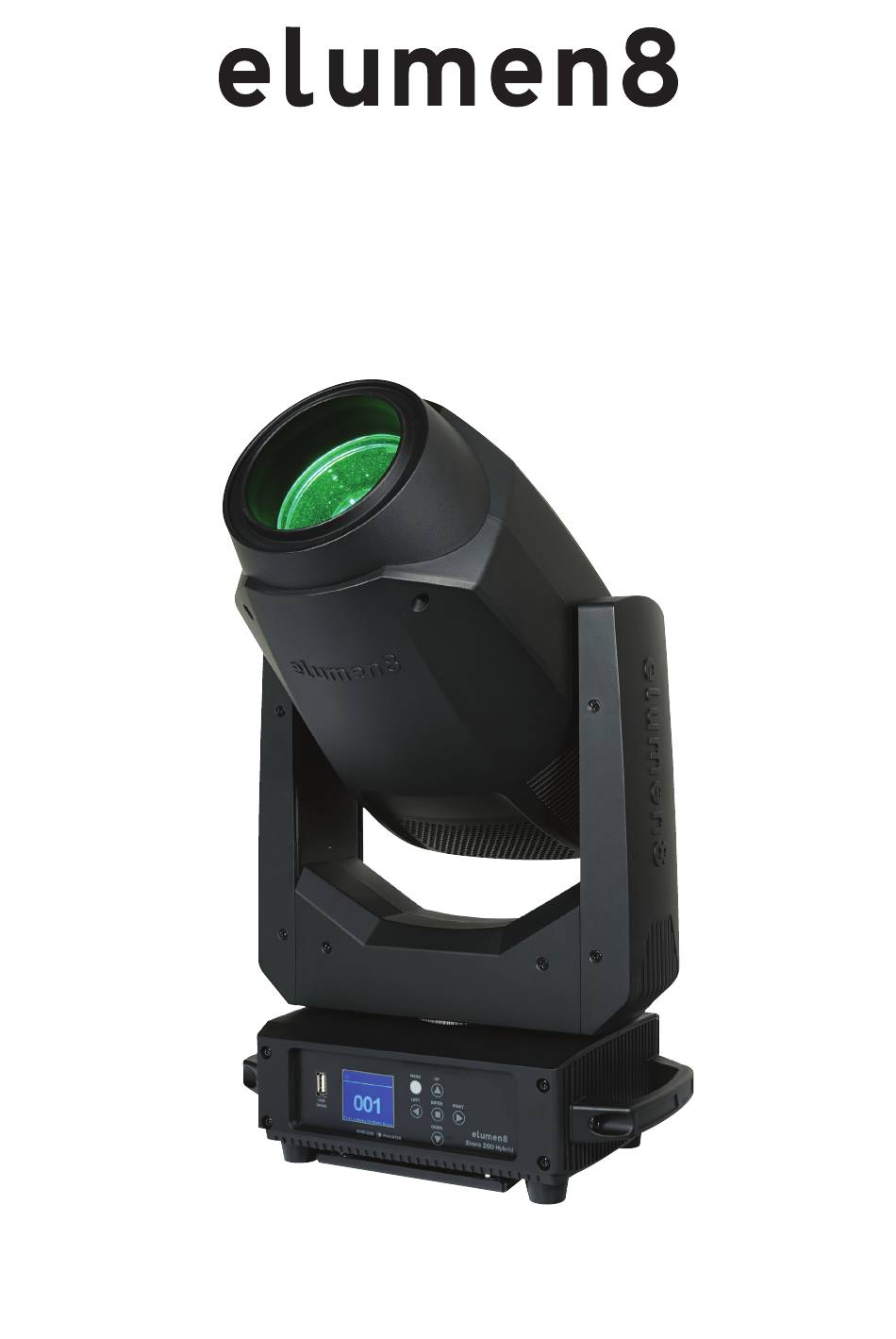

  • Page 1 Evora 200 Hybrid User Manual Order codes: ELUM705...

  • Page 2: Safety Advice

    Pack the unit securely (preferably in the Incorrect installation or use can cause serious damage original packing material), and return it to your Prolight to people and/or property. dealer for service. www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 3 To avoid damage to internal parts ie. optics, colour filters, gobos, prisms, frost filters, iris, shutters, motors, belts, wiring or LEDs. Never expose the lens to direct sunlight, lighting fixtures or lasers even when the fixture is not in use. www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 4 Product overview & technical specifications Evora 200 Hybrid The Evora 200 Hybrid is a feature packed 3-in-1 moving head boasting a comprehensive list of features all contained in a compact housing. The 200W LED paired with an adjustable zoom from 3° to 34° allows super tight beams and wide spots to be achieved.

  • Page 5: Technical Specifications

    Technical specifications 203mm 90mm 285mm 226mm 177mm 302mm 351mm www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 6 2 x omega clamps 03 - Function buttons 07 - 5-Pin DMX output 11 - Wireless DMX Antenna & 1 x power cable 04 - powerCON TRUE1 input 08 - etherCON input 12 - Fans www.prolight.co.uk Evora 200 Hybrid User Manual...

  • Page 7: Installation

    The installation should be checked annually by a qualified person. The Elumen8 Evora 200 Hybrid can be operated where the base of the fixture is horizontally orientated, this includes standing the fixture upright on a flat, level surface or hanging the fixture upside down. Do NOT install the fixture in a sideways position or in a position where the base of the fixture is orientated vertically or at an angle.
  • Page 8 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Evora 200 Hybrid User Manual...

  • Page 9: Rotating Gobo Replacement

    (or similar) and push the spring clip inwards to release it and remove the spring clip. Carefully remove the gobo from the holder avoiding scratching the gobo. Install the new gobo and follow the previous steps in reverse order. www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 10 When the unit has been powered on the display will show “Software Update” followed by “Elumen8 Evora 200 Hybrid” and then “Ethernet Reset...” followed by “Motor Reset Please Wait...”. The fixture will then return to its home screen.
  • Page 11 IC drive on the main PCB). Prism1 Prism1Rot Prism2 Prism2Rot LEDTemp GoboFan This message will appear if the sensor or fan has failed or the fixtures temperature is too hot. BaseFan LEDTemp www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 12 W-DMX must be active for Link all devices and the link Tx/Rx Link with a transmitter must be suspended (Receive Reset) UnLink Unlink all devices Do not suspend link with transmitter Rx Reset Suspend link with transmitter www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 13 Internal Programs Fade (000-255) Speed (000-255) Show 4 Fade (000-255) Speed (000-255) Show 5 Fade (000-255) Slave 1 (copies master) Slave Mode Slave 1 (pan inverts master) Slave Mode Slave 1 (pan/tilt inverts master) www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 14 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz Frequency LED Refresh Rate Setting 2500Hz 4000Hz 5000Hz 10kHz 15kHz 20kHz 25kHz Pan Inverse Pan Inverse Setting Pan/Tilt Tilt Inverse Tilt Inverse Setting Pan Angle Pan Angle setting www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 15 Elumen8 Evora 200 Hybrid Model Information RDM UID 0x09A5-0011xxxx RDM UID 1U: Vx.x.xx 2U: Vx.x.xx Firmware 3U: Vx.x.xx Software Version 4U: Vx.x.xx 5U: Vx.x.xx Error. Info NONE/Pan, Tilt... (See page 13) Current Fixture Errors www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 16 Colour 0/Colour 1 069-073 Colour 1/Colour 2 074-078 Colour 2/Colour 3 079-083 Colour 3/Colour 4 084-088 Colour 4/Colour 5 089-093 Colour 5/Colour 6 094-098 Colour 6/Colour 7 099-103 Colour 7/Colour 8 104-108 Colour 8/Colour 9 www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 17 Rotating Gobo Wheel Index 000-127 Rotating Gobo Indexing 127-189 Scroll clockwise (fast-slow) 190-193 Stop 194-255 Scroll anti-clockwise (slow-fast) Fixed Gobo Wheel 000-007 Open 008-012 Gobo 1 013-017 Gobo 2 018-022 Gobo 3 023-027 Gobo 4 www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 18 Prism 1 Indexing / Rotation 000-005 Prism 1 rotation stop 006-128 Prism 1 indexing 129-191 Clockwise prism rotation (fast-slow) Prism 1 rotation stop 193-255 Anti-clockwise prism rotation (slow-fast) Prism 2 000-031 Open 032-255 6 facet linear prism www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 19 Fan auto (hold 3s) 073-080 Fan low (hold 3s) 081-088 Fan high (hold 3s) 089-096 900Hz (hold 3s) 097-104 1000Hz (hold 3s) 105-112 1100Hz (hold 3s) 113-120 1200Hz (hold 3s) 121-128 1300Hz (hold 3s) www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 20 185-192 20kHz (hold 3s) 193-200 25kHz (hold 3s) 201-208 Reset pan/tilt (hold 3s) 209-216 Reset head only (hold 3s) 217-224 Reset all motors (hold 3s) 225-232 Input off 233-240 Input on 241-255 No function www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 21 Gobos/colours Rotating gobos: Gobo size: 17mmØ Image size: 12mmØ Gobo thickness: 1.1mm (Max. thickness if replaced 1.1mm) Colour wheel: Static gobos: www.prolight.co.uk Evora 200 Hybrid User Manual...

  • Page 22: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 23 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Evora 200 Hybrid User Manual...
  • Page 24 Please note: Caution should be used when power linking other fixtures to the Evora 200 Hybrid as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 25: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Evora 200 Hybrid User Manual...
