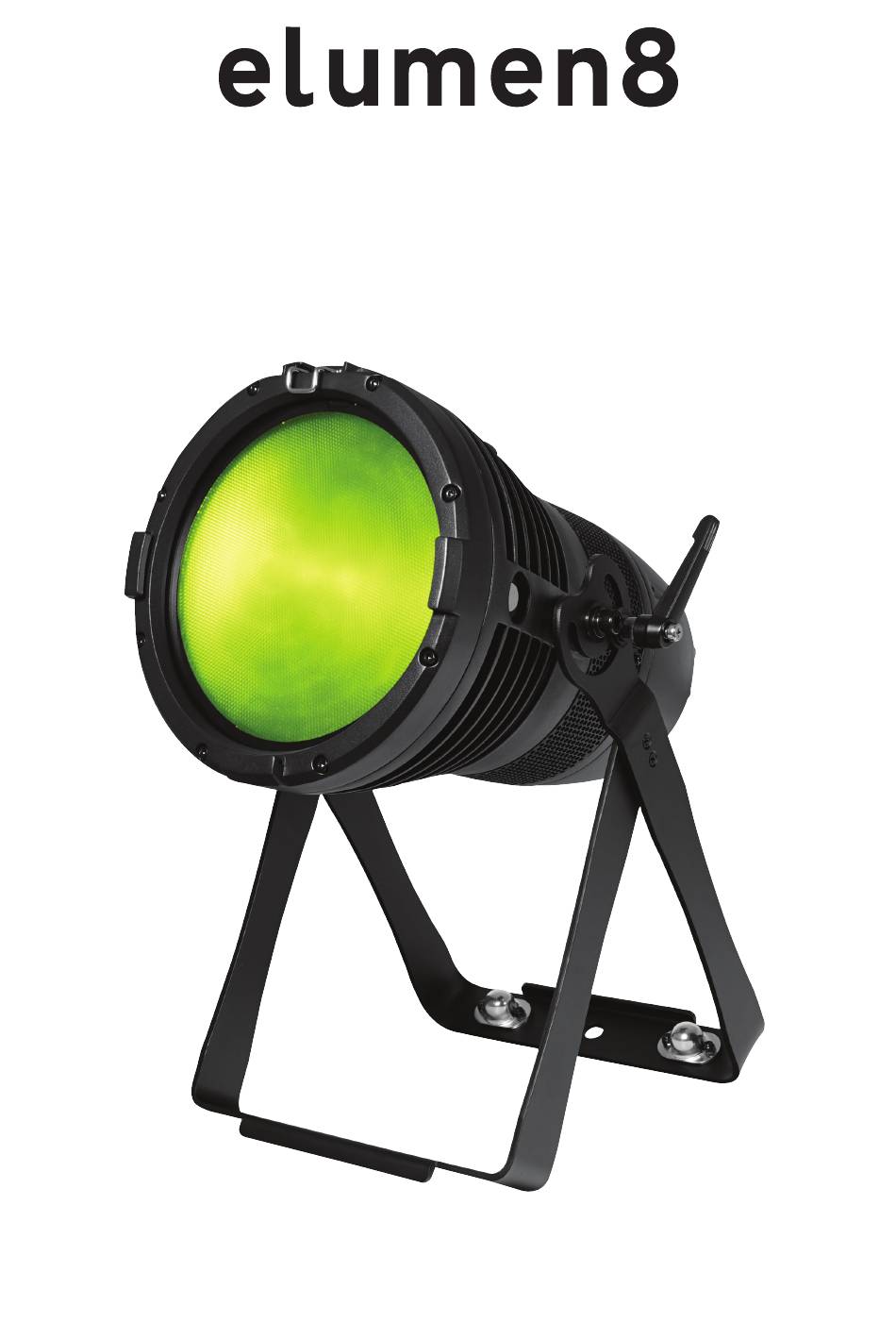

- Page 1 Virtuoso 800 Par IP HEX User Manual Order code: ELUM140...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual... -
Page 3: Ip Rating Information
NOT be subject to any warranty claims, parts or repairs. Please ENSURE all connections are sealed with the rubber caps if provided and the correct cables are used and connected correctly to prevent dust and/or water ingress, condensation and/or corrosion. www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual... -
Page 4: Product Overview
Power supply 100~240V, 50/60Hz 1780 IP rating IP65 10816 2704 1202 Fuse T2A 250V 17288 4322 1921 1080 7044 1761 Dimensions 435 x 310 x 320mm Weight 6.5kg Order code ELUM140 16° www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual... -
Page 5: Technical Speci Cations
Technical speci cations 320mm 225mm 310mm 418mm www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual... - Page 6 02 - LCD display 05 - PowerTwist TR1 input 08 - PowerTwist TR1 output & 1 x power cable 03 - Function buttons 06 - Double bracket 09 - Omega mounting points www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
-
Page 7: Installation
The installation should be checked annually by a quali ed person. The Elumen8 Virtuoso 800 Par IP HEX can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a at level surface. - Page 8 4. Mount the xture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the xture and around the truss. www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 9 AUTO 3 000-255 AUTO 4 000-255 AUTO 5 000-255 AUTO 6 000-255 AUTO Auto/custom programs PROGRAM AUTO 7 000-255 AUTO 8 000-255 AUTO 9 000-255 AUTO 10 000-255 PR 1 PR 2 www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 10 Fan speed setting STUDIO Display key DISP KEY DISP TIME Display backlight settings 2MINS FIXTURE HOURS Fixture hours VERSION VXXXXXXXXX Software version INFO 0X09a5XXXXXXXX Fixture UID VIRTUOSO 800 PAR LABEL Fixture model IP RGBALC www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 11 Description Settings in BOLD) 1800K 2200K 2700K 3000K 3200K 4000K 4500K Colour temperature presets 5000K 5600K 6000K 6500K 7000K 8000K 10000K COLOUR 1 PRESET Preset colours COLOUR (see page 17-18) COLOUR 48 www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 12 Colour temperature presets 000-009 No function 010-024 1800K 025-039 2200K 040-054 2700K 055-069 3000K 070-084 3200K 085-099 4000K 100-114 4500K 115-129 5000K 130-144 5600K 145-159 6000K 160-174 6500K 175-189 7000K 190-204 8000K 205-255 10000K www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 13 Lightning strobe (slow-fast) 190-255 Random strobe 180-189 No function 190-255 Random strobe Control 000-060 No function 061-070 Live 071-080 Studio (Hold for 081-090 Power 3 secs) 091-100 No function 101-110 Dimmer setting 111-120 Dim4 www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 14 Auto 4 081-090 Auto 5 091-100 Auto 6 101-110 Auto 7 111-120 Auto 8 121-130 Auto 9 131-140 Auto 10 141-150 Program 1 151-160 Program 2 161-255 No function 000-255 Auto speed adjustment www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 15 No function 041-050 Auto 1 051-060 Auto 2 061-070 Auto 3 071-080 Auto 4 CH10 081-090 Auto 5 091-100 Auto 6 101-110 Auto 7 111-120 Auto 8 121-130 Auto 9 131-140 Auto 10 www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 16 175-189 7000K 201-210 All reset 190-204 8000K 211-255 No function 205-255 10000K Auto 000-040 No function 041-050 Auto 1 CH17 051-060 Auto 2 061-070 Auto 3 071-080 Auto 4 081-090 Auto 5 www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 17 Pale Violet 181-185 Colour 36 L700 Perfect Lavender 186-190 Colour 37 Light Pink 191-195 Colour 38 L794 Pretty'n Pink 196-200 Colour 39 L328 Follies Pink 201-205 Colour 40 L795 Magical Magenta 206-210 www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 18 226-230 (cont.) Colour 45 L790 Moroccan Pink 231-235 Colour 46 L157 Pink 236-240 Colour 47 R332 Cherry Rose 241-245 Colour 48 L128 Cool LED Bright Pink 246-250 Blackout No Function Blackout 251-255 www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
-
Page 19: Dmx Setup
CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual... - Page 20 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
- Page 21 Please note: Caution should be used when power linking other xtures to the Virtuoso 800 Par IP HEX as the power consumption of other xtures will vary. Fixtures tted with lamps often require 2/3 times more current on startup, these may require their own power source.
-
Page 22: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Virtuoso 800 Par IP HEX User Manual...
