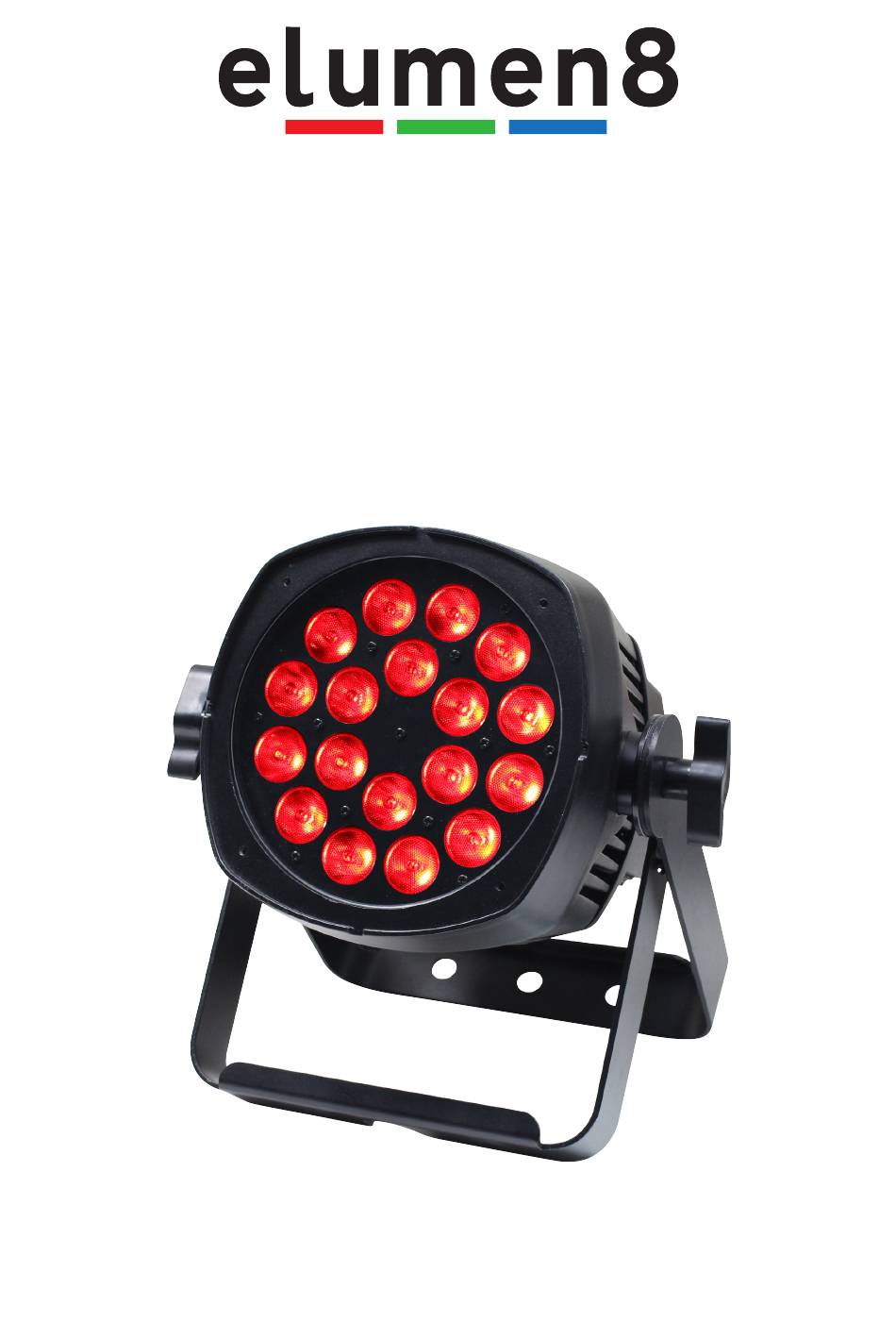

- Page 1 Endura 18Q5 RGBW Exterior Fixture User Manual Order code: ELUM450...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. - Page 3 Power supply 100~240V, 50/60Hz • 0 - 100% 8 or 16 bit dimming Fuse T2A 250V and variable strobe IP rating IP65 • Bracket allows for multiple rigging or Dimensions 310 x 280 x 195mm floor standing applications • 4 button backlit menu with LCD display Weight 4.8kg • PowerCON TRUE1 input/output Order codes ELUM450 20° - Lux FULL ON 16500 4126 1840 1030 3080 6440 1609 93.3 52.5 33.6 5640 1410 20° 195mm 280mm 225mm www.prolight.co.uk...
-
Page 4: Technical Specifications
Technical specifications MODE ENTER 01 - LCD display 05 - IP rated 5-Pin DMX input In the box: 1 x fixture 02 - Function buttons 06 - IP rated 5-Pin DMX output 1 x PowerCON TRUE1 cable 03 - PowerCON TRUE1 input 07 - Hanging bracket & 1 x user manual 04 - PowerCON TRUE1 output 08 - Hanging bracket adjustable knob Fuse: The Endura 18Q5 RGBW is fitted with an internal mains (line) fuse. The fuse must only be changed by qualified personnel. Before opening the fixtures housing or changing the fuse, the fixture must be disconnected and isolated from the mains supply. Replacement cartridge fuses must be of the same type and rating (20mm Glass T2A 250V). When closing the fixture please ensure the seal is correctly positioned and free from damage to ensure the fixture is water tight and to prevent water ingress. www.prolight.co.uk Endura 18Q5 RGBW User Manual... - Page 5 Operating instructions IMPORTANT! PLEASE NOTE: The LCD display for this fixture has a locking function which can be enabled via the menu where after 20 seconds of inactivity it will lock. To unlock the menu press the buttons in the following sequence “UP”, “DOWN”, “UP”, “DOWN”, “ENTER”. Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description DMX Addr 001-512 DMX Address Setting 01CH (01 channel mode) 04CH (04 channel mode) DMX Mode DMX Channel Setting 08CH (08 channel mode) 09CH (09 channel mode) Slave Mode Slave Mode DimMode Dimming Curves Mode Setting HALOGEN Linear Square DimCurve Dimming Curves Setting I-Square S-Curve R (Red) G (Green) B (Blue) W (White) 01.STATIC...
- Page 6 Operating instructions 1 channel mode (8 bit): 9 channel mode (16 bit): Channel Value Function Channel Value Function 000-127 Colour macros 000-255 Red dimmer (0-100%) 128-191 Colour change (slow-fast) 000-255 Green dimmer (0-100%) 192-255 Colour fade (slow-fast) 000-255 Blue dimmer (0-100%) 000-255 White dimmer (0-100%) 4 channel mode (8 bit): 000-255 Strobe (slow-fast) 000-255 Master dimmer (0-100%) Channel Value Function 000-255 Dimmer fine...
-
Page 7: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. - Page 8 DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
-
Page 9: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Endura 18Q5 RGBW User Manual... - Page 10 www.prolight.co.uk Endura 18Q5 RGBW User Manual...
- Page 11 www.prolight.co.uk Endura 18Q5 RGBW User Manual...
- Page 12 www.prolight.co.uk Endura 18Q5 RGBW User Manual...
