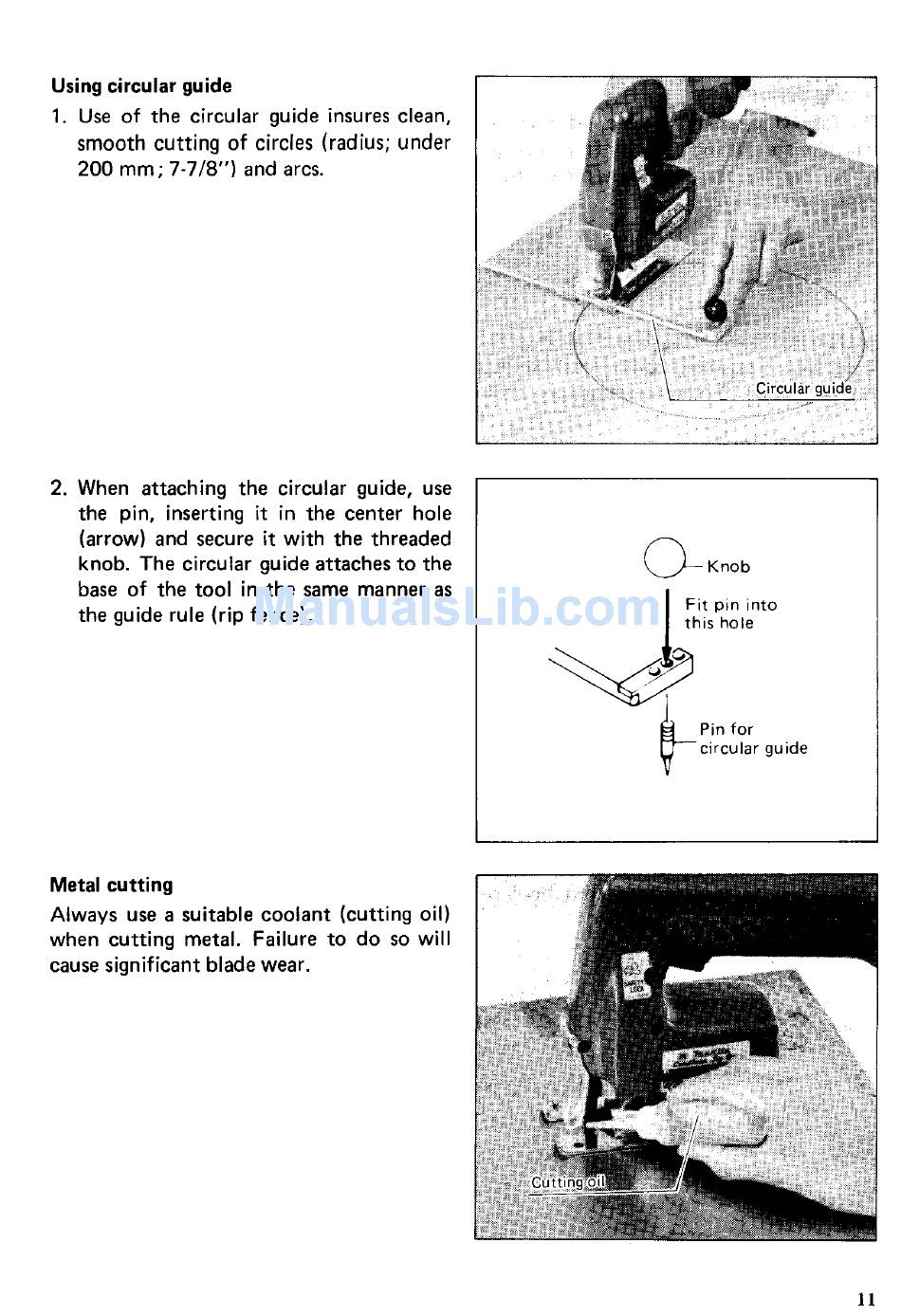

Using circular guide
1. Use of the circular guide insures
smooth cutting of circles (radius;
200 mm;
7-7/8")
and arcs.
clean,
under
0
Knob
Fit
pin
into
this hole
2. When attaching the circular guide, use
the pin, inserting
it
in the center hole
(arrow) and secure
it
with the threaded
knob. The circular guide attaches to the
base of the tool in the same manner as
the guide rule (rip fence).
Metal cutting
Always use
a
suitable coolant (cutting
when cutting metal. Failure to do
so
cause significant blade wear.
oil)
will
Pin for
circular
guide
I-
l l
