Makita 4307D Instruction Manual

Makita cordless saw user manual.
Hide thumbs

Advertisement

n
7 2 v
MODEL
43071)
MODEL 4 3 0 7 D W
With Fast Charger
A
C
only
D C
145
mm x
80 m m
x
61
m m
0
7 k q
5 0 H z
6 0 H r
7 2 v
15
3 4" x 3 ~ 1 j 8 ' '
x
2
318")
11 5
It)bl
1 H i

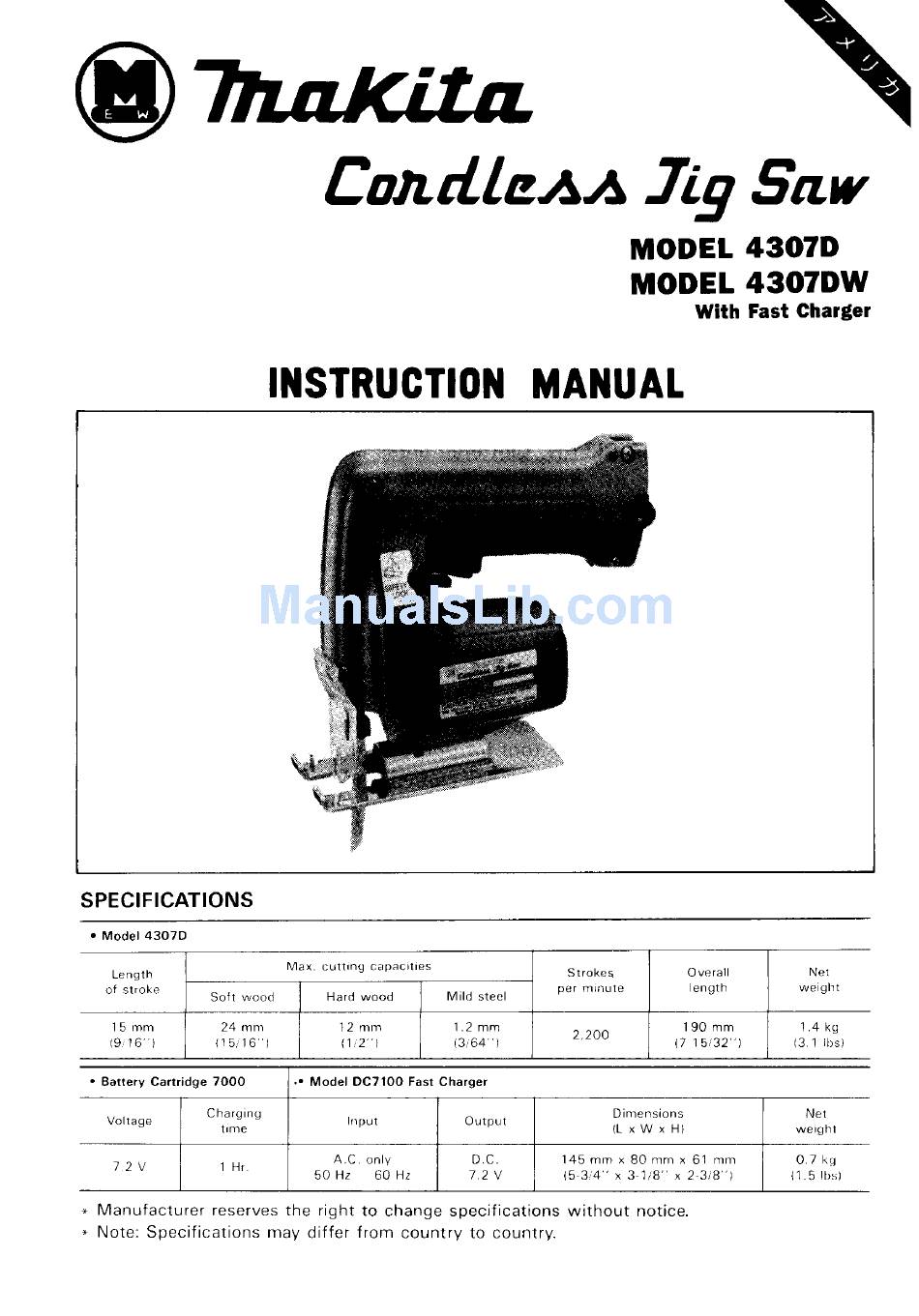

INSTRUCTION MANUAL
SPEC
IF
I CAT IONS
Model 4307D
1
1
1
190
mm
1 4 k g
19
16'
!
( 1 5 16")
11
2")
13'64
' I
17
15r32")
1 3 1
I b S !
1 2 m m
2.200
Battery Cartridge 7 0 0 0
1
..
Model DC7100 Fast Charger

Advertisement

Table of Contents

   Related Manuals for Makita 4307D

   Summary of Contents for Makita 4307D

  • Page 1 INSTRUCTION MANUAL SPEC I CAT IONS Model 4307D ( 1 5 16") Battery Cartridge 7 0 0 0 Model DC7100 Fast Charger 7 2 v 1 H i 5 0 H z 1 2 m m 2.200 2") 13'64 only...
  • Page 2 SAFETY INSTRUCTIONS WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE- TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER- SONAL INJURY, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries. CONSIDER WORK AREA ENVIRONMENT.
  • Page 3 REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking t o see that keys and adjusting wrenches are removed from tool before turning AVOID UNINTENTIONAL STARTING. Don't carry plugged-in tool with finger on switch. Be sure switch is OFF when plugging in. OUTDOOR USE EXTENSION CORDS.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS Length of Cord (Feet) AWG Size of Cord Do not operate charger with damaged cord or plug mediately. Do not operate charger if it has received a sharp blow, been dropped, or other- wise damaged in any way; take 1 1 .
  • Page 5 ADDITIONAL SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE not charge Battery Cartridge when temperature is BELOW 10°C ( 5 O O F ) or ABOVE 4OoC (104OF). Do not attempt t o use a step-up transformer, an engine generator or DC power receptacle.
  • Page 6 Installing or removing battery cartridge Always switch off the tool before insertion or removal of the battery cartridge. To remove the battery cartridge, pull out the set plate on the tool sides of the cartridge while withdrawing from the barrel. To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip...
  • Page 7 blade Mounting First, use the hex wrench to remove the bolt which secures the blade clamp to the blade holder shaft. With the blade teeth facing forward, place the shank of the blade over the flat side of the blade holder shaft.
  • Page 8 CAUTION : Before inserting the battery cartridge into the tool, always check to see that the trigger switch actuates properly and returns to the "OFF" position when released. When not operating the tool, keep the lock-off lever in the SAFETY LOCK position. .Pulling the trigger hard when the lock-off lever can cause switch breakage.
  • Page 9 flush Front cuts Loosen the bolt on the back with the hex wrench, then slide the base backwards. Check the contact between the back edge of the blade and support roller, then secure the bolt. Bevel cutting 1. With the base tilted, you can make bevel cuts any angle between 0"...
  • Page 10 Finishing edges trim edges or make dimensional adjust- ments, run the blade lightly along the cut edges. For smoother cutting of plywoods or other materials with easily splintered surfaces, the wood may be coated or transparent tape used over your cutting line. Using guide rule (Rip fence) When cutting widths of under 150mm(6") repeatedly, use of the guide rule will assure...
  • Page 11 Using circular guide 1. Use of the circular guide insures smooth cutting of circles (radius; 200 mm; and arcs. 7-7/8") 2. When attaching the circular guide, use the pin, inserting in the center hole (arrow) and secure with the threaded knob.
  • Page 12 Cutting performance The following reference table indicates the approximate cutting capacity from a single 1-hour battery charge. It may differ under some conditions. CAUTION I f the tool operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery. Hex wrench storage When not in use, the hex wrench can be conveniently stored.
  • Page 13 Always be sure that the tool i s switched off and the battery cartridge attempting to perform inspection or maintenance. To maintain product SAFETY and RELlABl LITY, repairs, maintenance and adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. removed before...
  • Page 14 ACCESSORIES CAUTION : These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury t o persons. The accessories or attachments should be used only in the proper and intended manner.
  • Page 15 ' 8 6 EN CORDLESS JIG SAW Model 4307D Note: The switch and other part configuratlons may differ from country to country.
  • Page 16 ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita replace) without charge.
