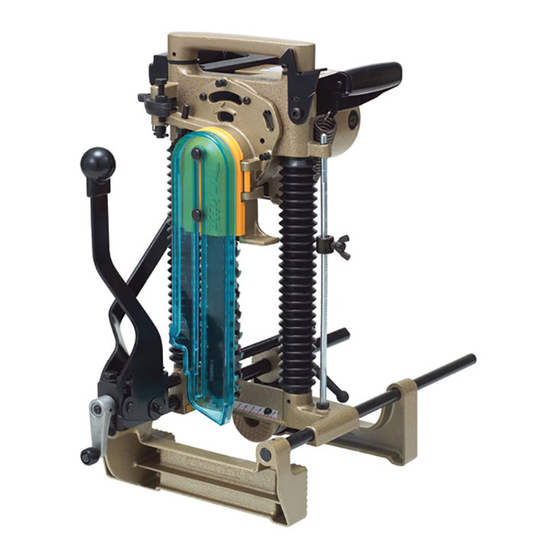

Makita CHAIN MORTISER 7104L Parts Manual
Makita CHAIN MORTISER 7104L Parts Manual

Makita CHAIN MORTISER 7104L Parts Manual

Chain mortizer
Hide thumbs Also See for CHAIN MORTISER 7104L:

Advertisement

Model 7104L
IMPORTANT!
-
To assure product SAFETY
and RELIABILITY, repairs, maintenance or
adjustments should b e performed by
MAKITA Service Centers, or other qualified
service organizations. Always use MAKITA
replacement parts.
05-98

Advertisement

loading

Summary of Contents for Makita CHAIN MORTISER 7104L

  • Page 1 IMPORTANT! To assure product SAFETY and RELIABILITY, repairs, maintenance or adjustments should b e performed by MAKITA Service Centers, or other qualified service organizations. Always use MAKITA replacement parts. 05-98 Model 7104L...
  • Page 2 2MODEL7104L 05-98...
  • Page 3 Part Qty. Fig. Used 664754-9 POWER SUPPLY CORD 682505-8 CORD GUARD 10-90 RIVET 0-5 953106-2 687001-1 STRAIN RELIEF 652014-1 PAN HEAD SCREW M4X8 911123-8 PAN HEAD SCREW M4X14 341570-3 GRIP HOLDER R 911226-8 PAN HEAD SCREW M5X18 911206-4 PAN HEAD SCREW M5X10 181298-9 SWITCH CASE SET (INCL.
  • Page 4 Qty. Part Fig. Used Description 271610-2 KNOB 40 CLAMP 341 569-8 2561 06-4 PIN 9 951 11 6-3 SPRING PIN 4-20 257075-2 RING 9 FLAT WASHER 9 253808-3 PIN 9 256623-4 253808-3 FLAT WASHER 9 SLEEVE 9 257561 -3 231 746-9 TENSION SPRING 9 951 11 0-5 SPRING PIN 4-16...
