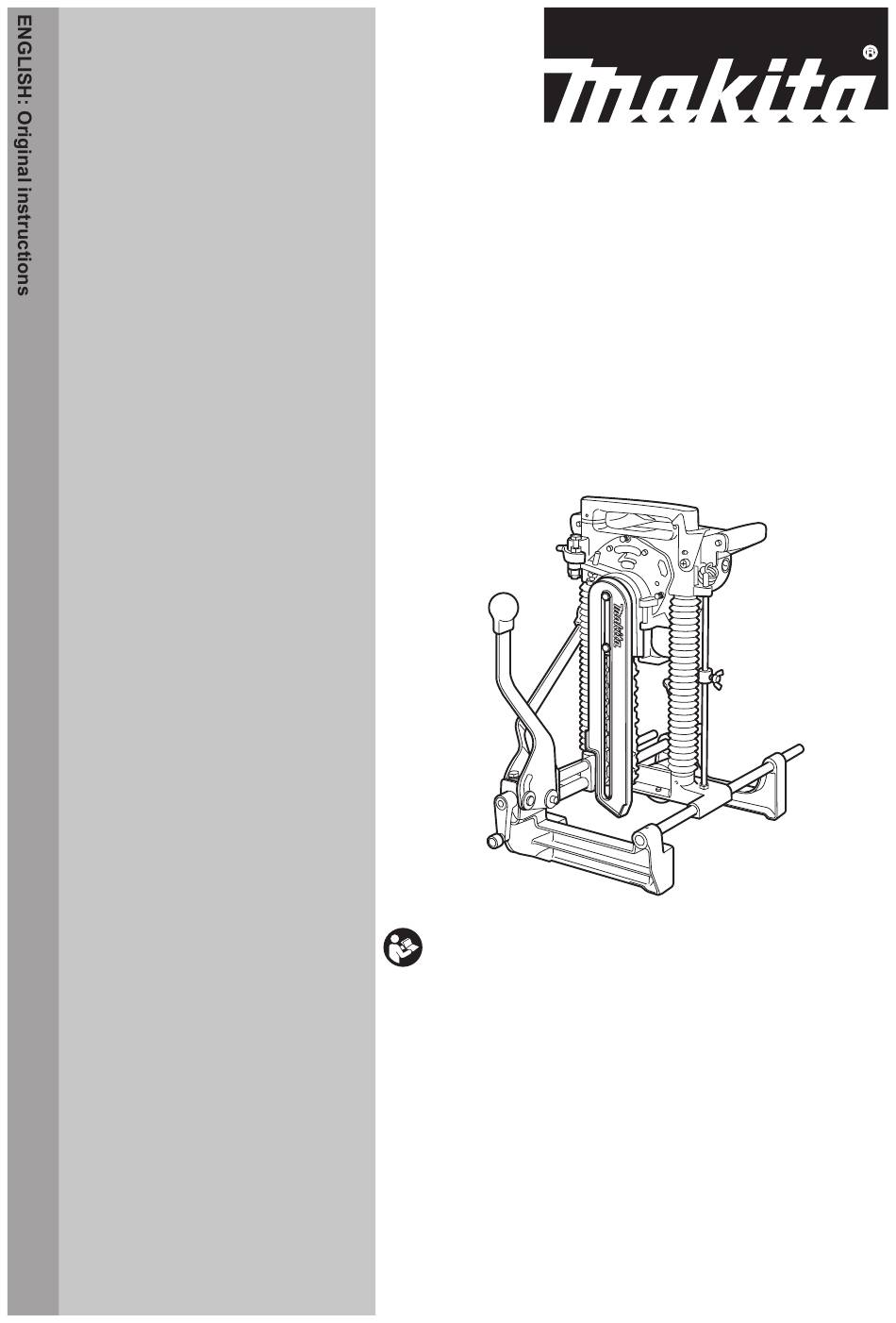

INSTRUCTION MANUAL
Chain Mortiser
7104L
Read before use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7104L and is the answer not in the manual?

Questions and answers

Related Manuals for Makita 7104L

Summary of Contents for Makita 7104L

  • Page 1 INSTRUCTION MANUAL Chain Mortiser 7104L Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model 7104L Capacities Max. hole length (Longitudinal) 130 mm Max. hole depth 155 mm Width of applicable workpiece 80 mm - 308 mm Chain speed 300 m / min Dimensions (L × W × H) 512 mm × 298 mm × 513 mm Net weight 17.8 - 18.2 kg...

  • Page 3: General Power Tool Safety Warnings

    Personal safety General power tool safety warnings Stay alert, watch what you are doing and use common sense when operating a power tool. WARNING: Read all safety warnings, instruc- Do not use a power tool while you are tired or tions, illustrations and specifications provided under the influence of drugs, alcohol or med- with this power tool.

  • Page 4: Functional Description

    Power tool use and care Secure the tool to the workpiece firmly. Do not force the power tool. Use the correct Inspect for and remove nails or foreign matter power tool for your application. The correct from the workpiece before operation. power tool will do the job better and safer at the Do not operate the tool with the safety cover rate for which it was designed.
  • Page 5 To install the cutter chain, open the chain cover. Loosen the Switch action hex bolt securing the chain bar and the adjusting screw. Orient the cutters in the direction of the arrow on the tool (rotational direction). Attach the cutter chain to the sprocket first and then to the chain bar. Semi-tighten the hex bolt. ► 1 . Lock-off button 2. Switch trigger CAUTION: •...

  • Page 6: Operation

    Grasp firmly the grips on either side. Switch on the tool and wait until the cutter chain attains full speed. Then release the hook and lower the tool head to cut in the workpiece. Do not apply excessive pressure to the tool. This may not only decrease the working efficiency but also cause a dangerous reaction. Feed slowly at the beginning of a cutting operation, at the time of hole breakthrough and when cutting a knot in the workpiece.
  • Page 7 2. Longitudinal (length) enlargement To bring the cutter chain back to the perpendicular (original) position, pull the lever (C) toward you while Hole length can be determined in three steps shown in pressing down on the right-hand grip and slightly raising the table below.

  • Page 8: Maintenance

    The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. • Cutter chain •...
  • Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 883685D221 20210530...
