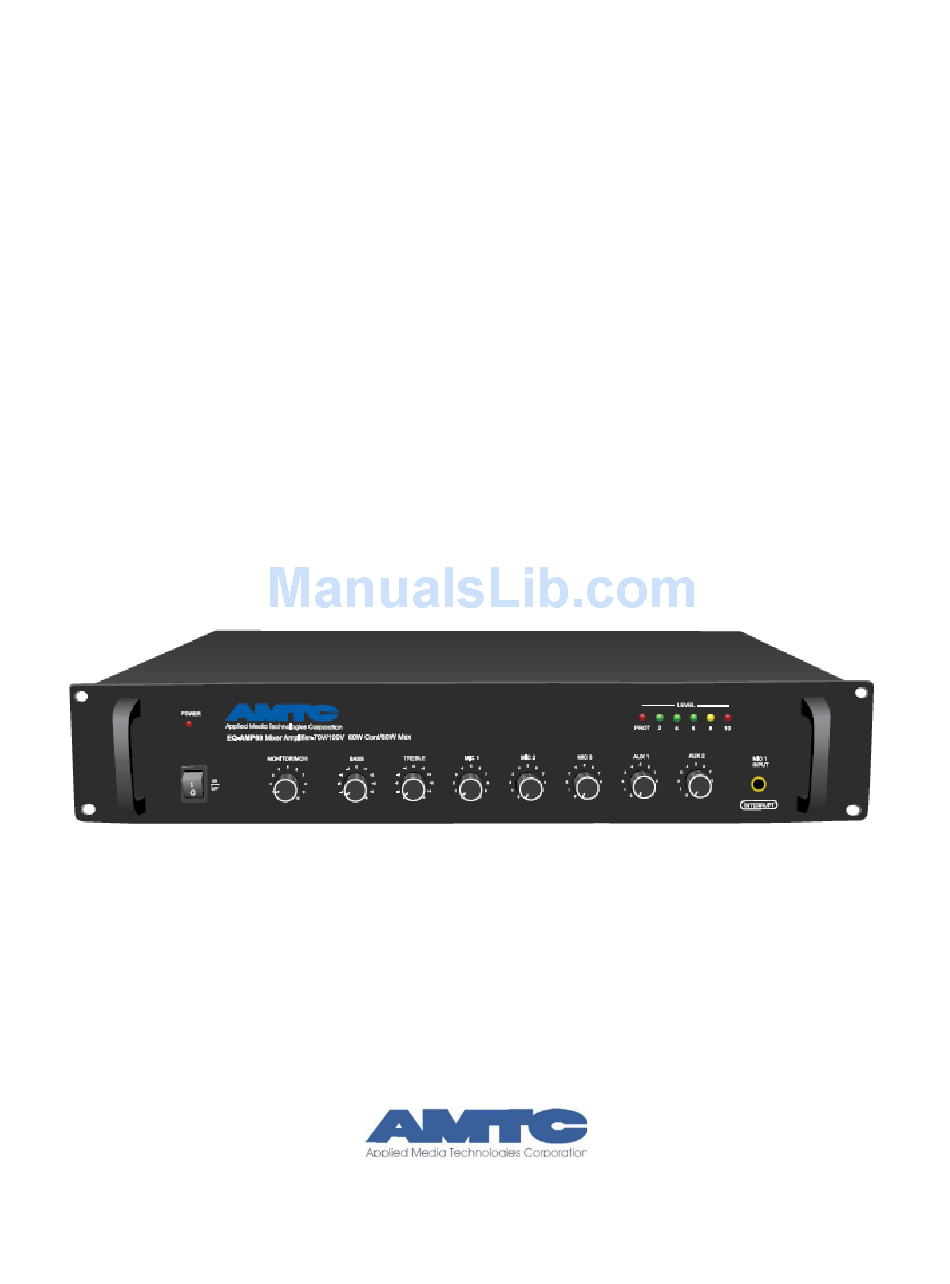

- Page 1 EQ-AMP60 60W Mixer Amplifier Instruction Manual 4091 AMTC Center Drive Clearwater, FL 33764-6976 (727)531-3105 (727)531-3965 www.amtc.com...
- Page 2 Features 1. MIC 1 input with front- and rear-panel connectors 2. Rear-panel MIC 2 and 3 inputs 3. Rear-panel AUX 1 and AUX 2 inputs 4. Line-level outputs allow connection to another amplifier 5. Monitor/MOH output allows connection of a monitor speaker or connection to music on hold input of a telephone system –...
- Page 3 Frequency Response (+-3dB): 40 Hz - 18 kHz MIC1-3 Input Section (Ch. 1-3 In @ 1 kHz, Preamp Out): Input Sensitivity/Impedance: 2 mV / 600 ohms S/N: Better than 62 dB Frequency Response (+-3dB): 40 Hz-18 kHz Tone Control (Bass: 100 Hz, Treble: 10 kHz): +-12dB Phantom Power: 0/6/12/24/48 VDC AUX1-2 Input Section (Aux In @ 1 kHz, Preamp Out): Input Sensitivity/Impedance: 150 mV / 15k Ohms...
- Page 4 Front Panel 8 9 10 11 12 Power Indicator Power Switch Monitor/MOH Volume Control Knob Bass Tone Control Knob Treble Tone Control Knob MIC1 Input Level Control Knob MIC2 Input Level Control Knob MIC3 Input Level Control Knob Protection Indicator LED (Indicates protection mode. Turn off amplifier, and check for short circuit in speaker wiring or excessive speaker load.) AUX1 Input Level Control Knob LED Level Indicator...
- Page 5 Rear Panel Monitor/MOH Output (for use with monitor speaker or telephone music on hold input) Common Speaker Output 4-16 ohm Speaker Output (select only one connection from 2, 3, and 4) 70V Speaker Output (select only one connection from 2, 3, and 4) 100V Speaker Output (select only one connection from 2, 3, and 4) MIC 1 Interrupt Time Adjustment (adjusts from sharp to gradual the restoration of AUX inputs after interruption by MIC 1 input)
- Page 6 Usage Notes 1. Do not power on the amplifier until all input sources and speakers are securely connected. Turn the volume knob to its minimum setting before powering on the amplifier to prevent speaker damage. 2. The total power consumption rating of the speakers must not exceed the amplifier’s continuous power rating.
- Page 7 Object and Liquid Entry: Care should be taken so that objects do not fall and liquids are not spilled into the unit enclosure through openings. Damage Requiring Service: The unit should be returned to AMTC when: The power supply cord or the plug has been damaged; or Objects have fallen, or liquid has spilled, into the unit;...
- Page 8 Liability for any defect is limited to repair or replacement of this product at the option of AMTC. AMTC shall not be liable for damage to other products caused by defects in this...
- Page 9 damages, whether incidental, consequential or otherwise. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, go the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
