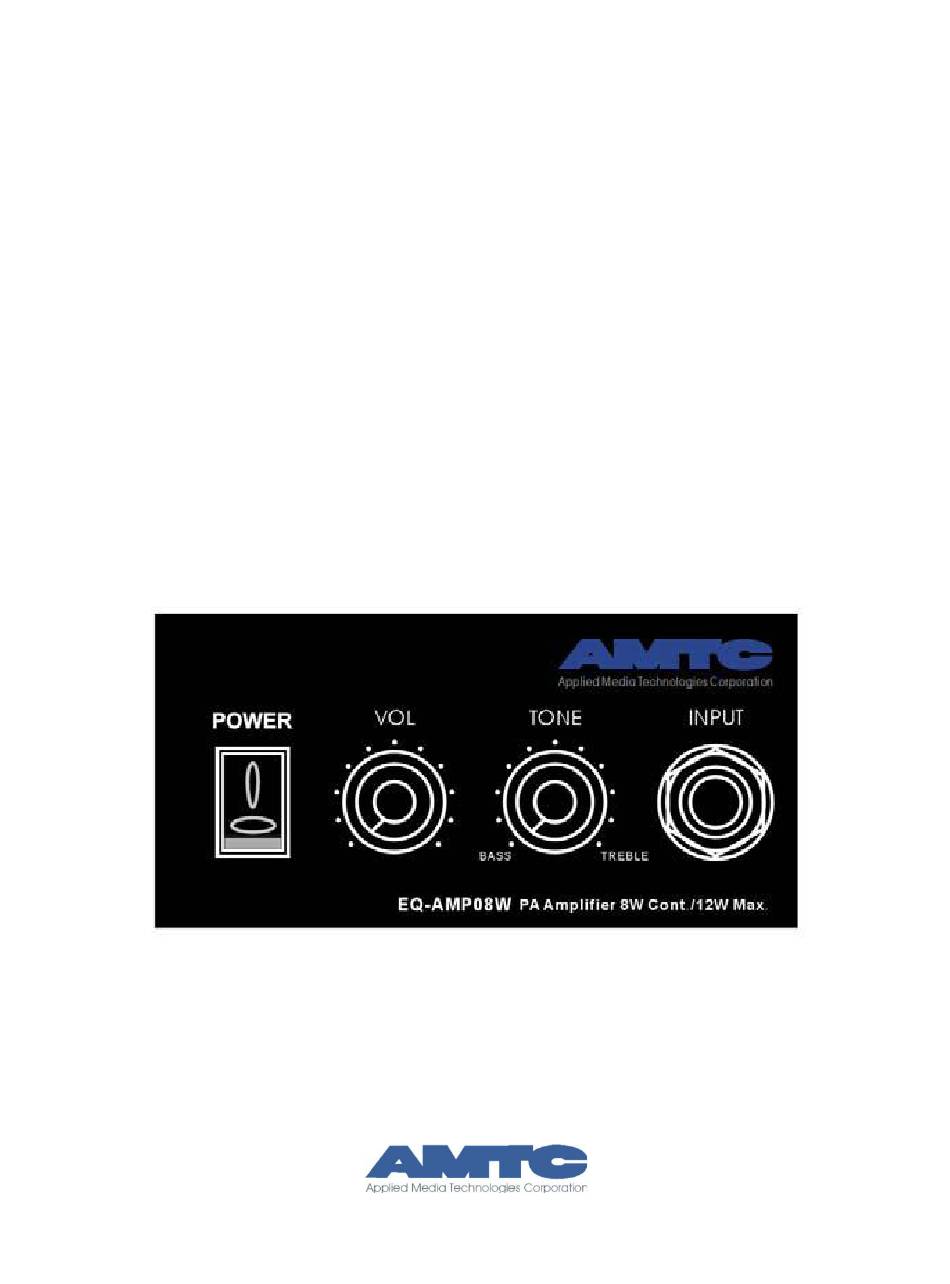

- Page 1 EQ-AMP08W 8W PA Amplifier Instruction Manual 4091 AMTC Center Drive Clearwater, FL 33764-6976 (727)531-3105 (727)531-3965 www.amtc.com...
- Page 2 Features 1. (1) front-panel AUX input 2. 70V constant-voltage speaker outputs and 8 ohm constant-resistance speaker outputs 3. Reliable protection against overload, short circuit, and power fluctuation for optimum reliability 4. Includes 90º brackets to allow wall-mounting Specifications Total Harmonic Distortion: < 1% Operating Temperature: -10 C –...

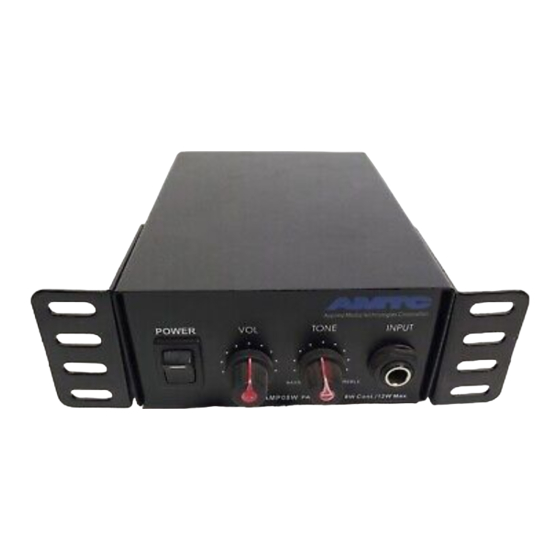

- Page 3 Front Panel Power Switch Volume Control Knob Tone Control Knob AUX Input (1/4” / 6.3 mm mono)
- Page 4 Rear Panel 70V Speaker Output (select only one connection from 1 and 2) 8 ohm Speaker Output (select only one connection from 1 and 2) Ground (common) Speaker Output 1A / 12V DC Power Input...
- Page 5 Usage Notes 1. Do not power on the amplifier until all input sources and speakers are securely connected. Turn the volume knob to its minimum setting before powering on the amplifier to prevent speaker damage. 2. The total power consumption rating of the speakers must not exceed the amplifier’s continuous power rating.
- Page 6 Object and Liquid Entry: Care should be taken so that objects do not fall and liquids are not spilled into the unit enclosure through openings. Damage Requiring Service: The unit should be returned to AMTC when: The power supply cord or the plug has been damaged; or Objects have fallen, or liquid has spilled, into the unit;...
- Page 7 Liability for any defect is limited to repair or replacement of this product at the option of AMTC. AMTC shall not be liable for damage to other products caused by defects in this product, damages based on inconvenience or loss of use of this product, or any other damages, whether incidental, consequential or otherwise.
- Page 8 limitation of incidental or consequential damages, go the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is enforceable only inside the U.S.A, its possessions and territories.
