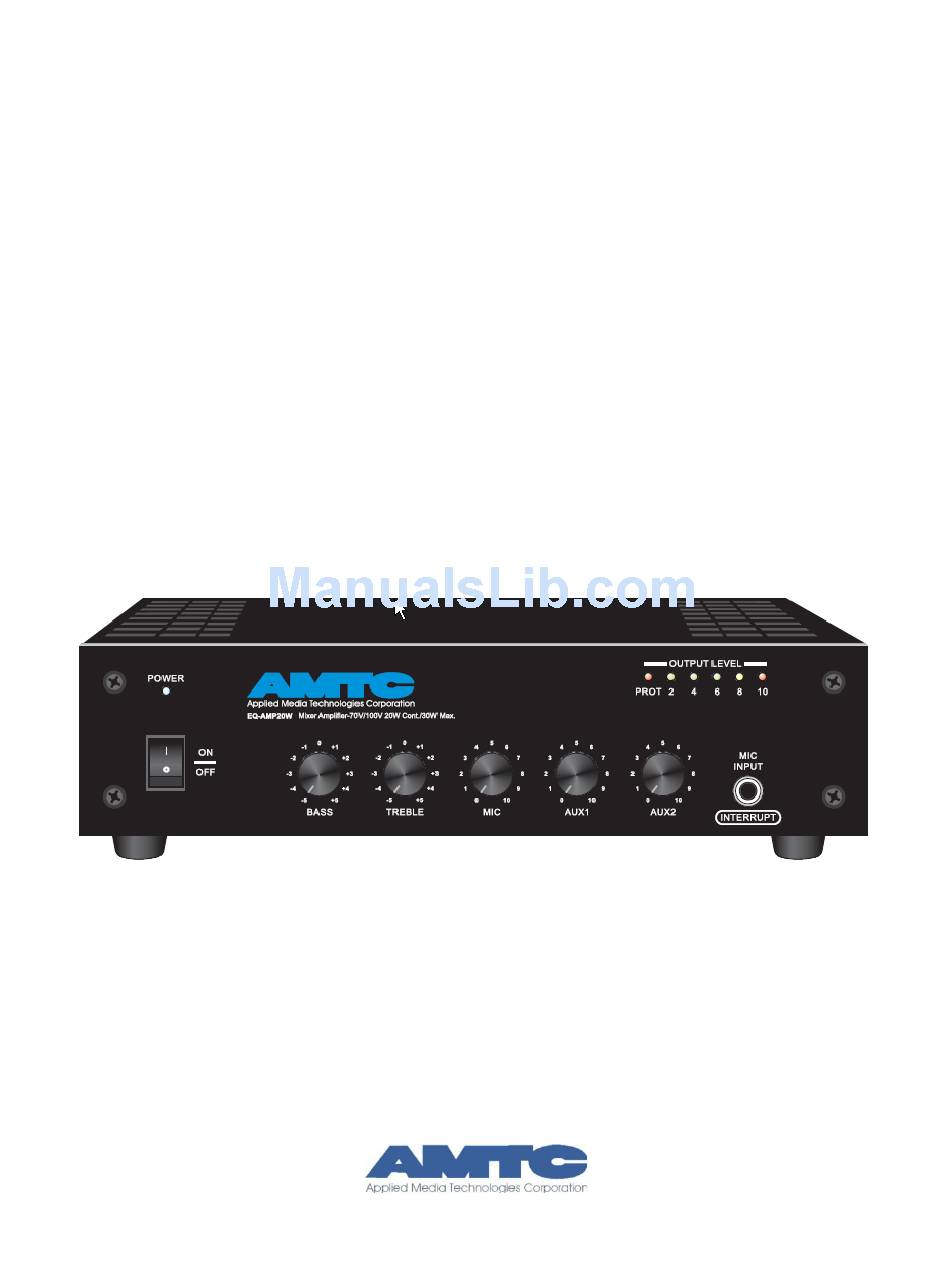

- Page 1 EQ-AMP20W 20W Mixer Amplifier Instruction Manual 4091 AMTC Center Drive Clearwater, FL 33764-6976 (727)531-3105 (727)531-3965 www.amtc.com...
- Page 2 Features 1. (1) MIC input with front- and rear-panel connectors 2. Rear-panel AUX 1 and AUX 2 inputs 3. Line-level outputs allow connection to another amplifier 4. 100V and 70V constant-voltage speaker outputs and 4-16 ohm constant- resistance speaker output 5.
- Page 3 Mic Input Section (MIC in @ 1 kHz, Preamp Out): Input Sensitivity/Impedance: 5 mV / 500 ohms S/N: Better than 60 dB Frequency Response (+-3 dB): 80 Hz - 16 kHz Tone Control (Bass: 100 Hz, Treble: 10 kHz): +1 dB / -3 dB Aux1-2 Input Section (Aux In @ 1 kHz, Preamp Out): Input Sensitivity/Impedance: 300 mV / 500 Ohms S/N: Better than 75 dB...

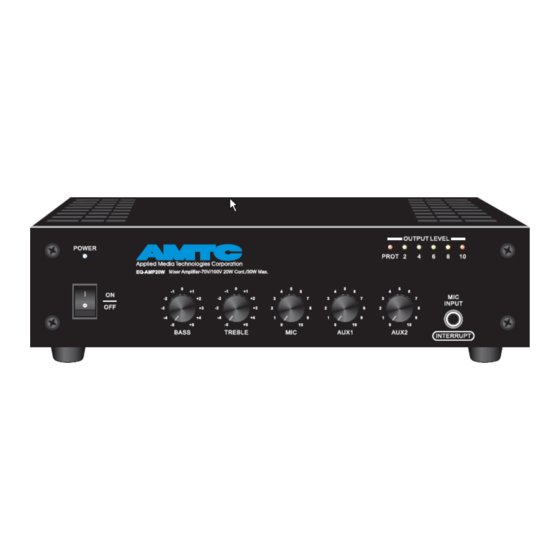

- Page 4 Front Panel 9 10 Power Indicator Power Switch Bass Tone Control Knob Treble Tone Control Knob MIC Input Level Control Knob AUX1 Input Level Control Knob AUX2 Input Level Control Knob MIC Input (1/4”/6.3mm) (Do not use if rear panel MIC input jack is used) Protection Indicator LED (Indicates protection mode.
- Page 5 Rear Panel 1. MIC Interrupt Time Adjustment (adjusts from sharp to gradual the restoration of AUX inputs after interruption by MIC input) 2. MIC Input (1/4”/6.3mm) (Do not use if front panel MIC input jack is used) 3. AUX 1 Input (RCA) Note: although dual input jacks allow stereo input, the left and right channels are summed into a single mono amplified channel 4.
- Page 6 Usage Notes 1. Do not power on the amplifier until all input sources and speakers are securely connected. Turn the volume knob to its minimum setting before powering on the amplifier to prevent speaker damage. 2. The total power consumption rating of the speakers must not exceed the amplifier’s continuous power rating.
- Page 7 Object and Liquid Entry: Care should be taken so that objects do not fall and liquids are not spilled into the unit enclosure through openings. Damage Requiring Service: The unit should be returned to AMTC when: The power supply cord or the plug has been damaged; or Objects have fallen, or liquid has spilled, into the unit;...
- Page 8 Liability for any defect is limited to repair or replacement of this product at the option of AMTC. AMTC shall not be liable for damage to other products caused by defects in this product, damages based on inconvenience or loss of use of this product, or any other damages, whether incidental, consequential or otherwise.
