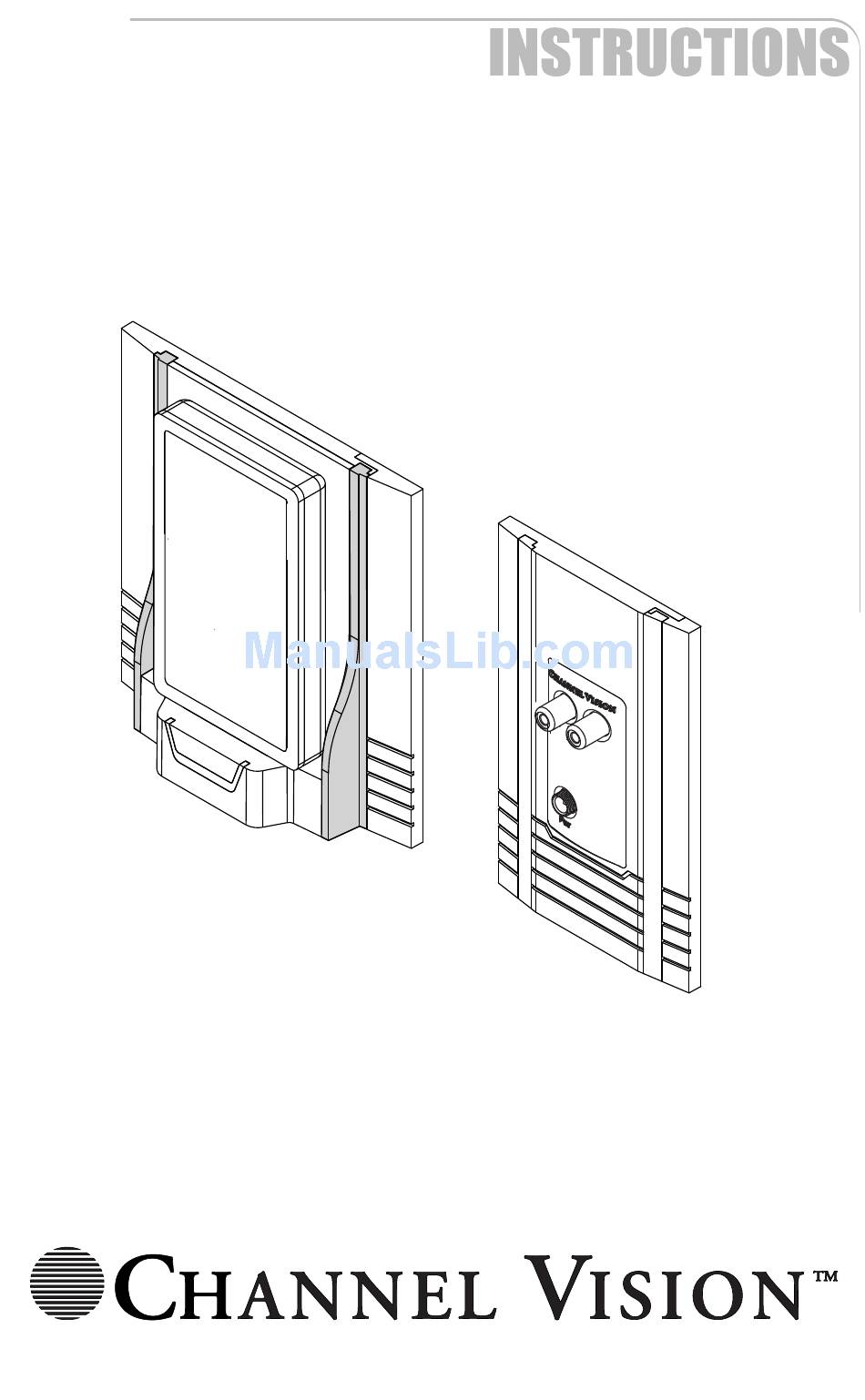

- Page 1 A0320 ® Micro-USB Bluetooth Wall-Dock for Distributed Audio • Intelligent Entertainment • Infrastructure • Security Solutions...

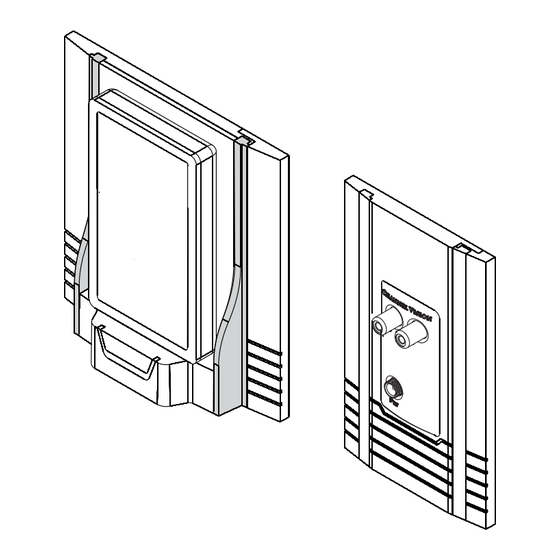

- Page 2 The A0320 is an on-wall bluetooth™ docking station that will charge a Micro-USB device. The non-skid pad helps to hold the music player in place. It’s elegant and contemporary design make the A0320 perfect for anyone who wants to enjoy their music without defacing their wall. Features: Charges a Micro-USB device Mounts in a standard 2-gang box...
- Page 3 Output Wall Plate Front Back Audio Outputs Connect to your RJ-45 & 110 amplifier. Connectors Receive signals from the wall dock via Category 5 or Category 6 cable. Installing the Trim Plate Accessory Install Output wall plate in j-box Install Trim plate chassis over output wall plate Snap front cover over chassis...
-
Page 4: Basic Application
Basic Application Front Rear A0320 Wall Dock CAT5 cable up to 350ft. Whole-House Audio System Rear Front Pwr. A0320 Output Wall Plate... - Page 5 Sample Wiring Diagram: When used with the A0350 A0350 A r i a By CHANNEL VISION Flush Mount Amplifier Spkrs Active Local In IR In 24VDC TV or Video Display The single-gang trim plate can be used to hold a single-gang keypad...
- Page 6 Sample Wiring Diagram: When used with the AB-412 A0320 Front Completed Installation C H A N N E L V I S I O N IR Out Local In Priority Loc 24VDC AB-412 Rear H A N N E L I S I O N Source Room 1...
- Page 7 Installing the Wall Dock Installation Steps 1. Connect all wiring. 2. Attach main chassis to j-box using the provided four 6-32 screws. 3. Feed the dock connector circuit board through the opening in the front cover. 4. Hang the front cover on the main chassis from the two top tabs.
- Page 8 Installing the Wall Dock (3-gang Installation) In some installations it may be desirable to mount a single gang control keypad next to the A0320. To accomplish this, the single gang trim plate can be installed next to the A0320 in a 3-gang junction box.: Installation Steps: 1.
-
Page 9: Bluetooth Functionality
Bluetooth Functionality Pairing: A. Turn Bluetooth on in the pairing device, and scan for Bluetooth devices. B. To pair with the dock, click on “Android Dock-XXXX” (where XXXX is the last 4 digits of the MAC address) in the Bluetooth device scan list. C. - Page 10 Connection Tips and Troubleshooting NOTE: Maximum charging voltage is 5vDC 500mA. Do not plug in a device such as a tablet computer to this dock. Doing so can cause damage to either device and will void the warranty. Problem: Not linking with Bluetooth device or Linking with Bluetooth device, but no audio plays. Troubleshooting: 1.
-
Page 11: Specifications
Specifications Specifications: (typical @25º C) Audio Output Output Impedance: 600 Ohms Power Requirements: 15VDC @ 0.500A (500mA) Power Supply: 15VDC @ 800mA Wire type: 4-pair, UTP Category 5, 5e or 6 Recommended Max. Cable Length: 350ft. Dimensions: Wall Dock (2-gang): 4.88”W x 5.14”H x 1.24”D(front) Rear Depth: 1.56”... - Page 12 Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
