Summary of Contents for Channel Vision iBus AB-315

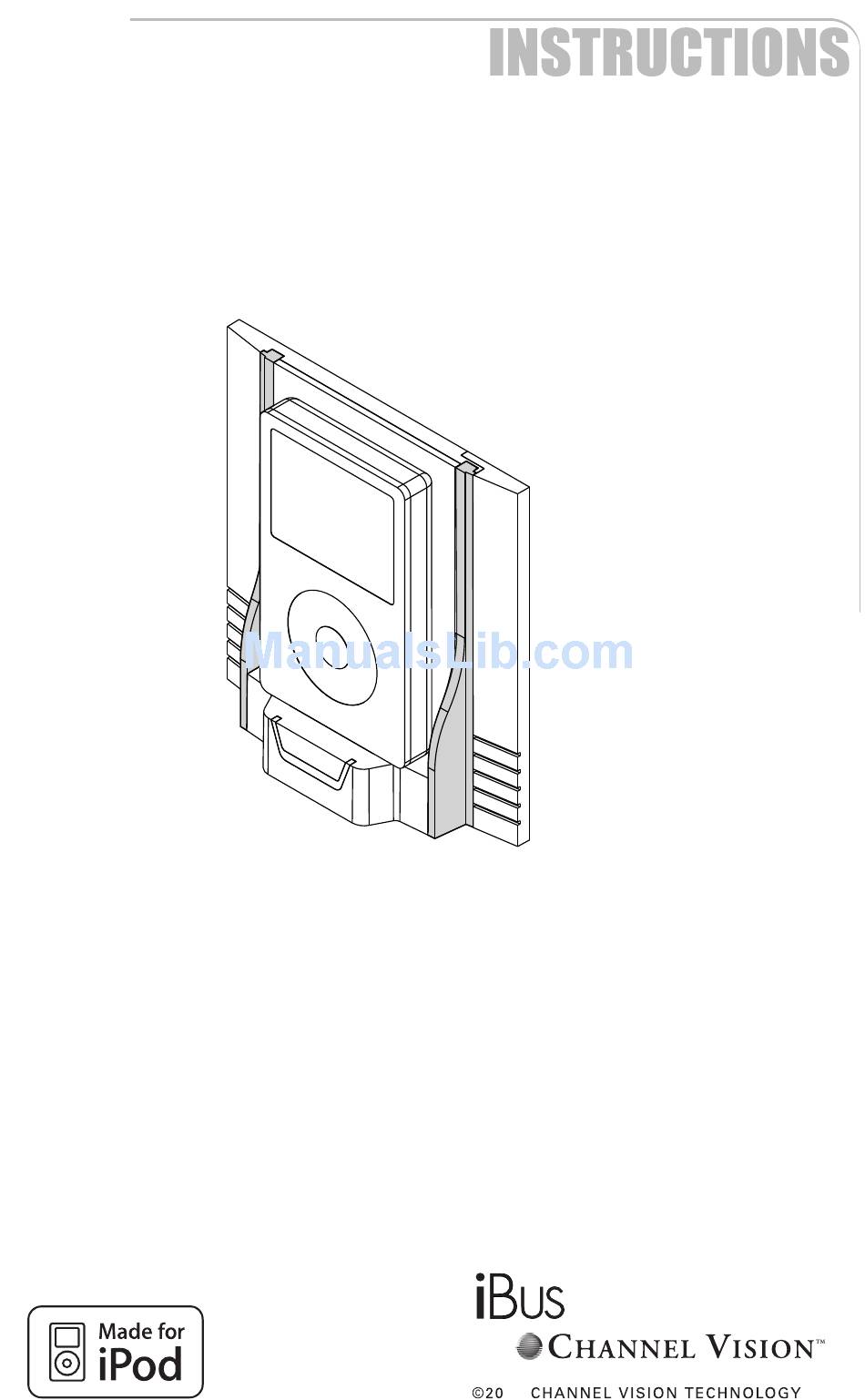

- Page 1 AB-315 ® iBus Wall-Dock for A-Bus Audio Systems...

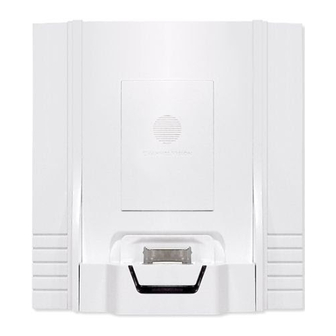

- Page 2 ® ® The AB-315 is an on-wall iPod docking station for A-BUS a udio systems. The dock connector slides in and out to adjust for any iPod and the non-skid pad helps to hold the music player in place. With all the popular features of AB-313, the new AB-315 adds elegant and contemporary styling to make it the perfect choice for anyone who wants to enjoy their music without defacing their wall.
- Page 3 Installing the Trim Plate Accessory Install Output wall plate in j-box Install Trim plate chassis over output wall plate Snap front cover over chassis Snap side flange on Snap trim to front cover into place Compatibility Made For: iPod touch (2nd generation) iPod nano (4th generation) IPod touch (1st generation) iPod nano (3rd generation)
-
Page 4: System Wiring Diagram
System Wiring Diagram Using the AB-315 as a local source input module P-1014 Tape Monitor or Room 2 output Sat radio DVD player CD player Receiver AB-315 (Optional) IR emitters (Rear) H A N N E L I S I O N Source AB-124 A0501,... - Page 5 System Wiring Diagram Using the AB-315 as a main source input module AB-315 H A N N E L I S I O N H A N N E L I S I O N (Rear) Source Source H A N N E L I S I O N P-1014 Source...
- Page 6 Installing the Wall Dock Installation Steps 1. Connect all wiring. 2. Attach main chassis to j-box using the provided four 6-32 screws. 3. Feed the dock connector circuit board through the opening in the front cover. 4. Hang the front cover on the main chassis from the two top tabs.
- Page 7 Installing the Wall Dock (3-gang Installation) In some installations it may be desirable to mount a single gang control keypad next to the AB-315. To accomplish this, the single gang trim plate can be installed next to the AB-315 in a 3-gang junction box. Follow the steps below: Installation Steps 1.
-
Page 8: Docking The Ipod
Docking the iPod The dock platform can slide up to hide the dock connector when the system is not in use. Make sure the dock platform is in the down position so the dock connector is exposed (as shown here). The sliding dock lever beneath the dock adjusts the position of the dock connector to create a perfect fit for all compatible iPods (see page 3 for a list of compatible iPods). - Page 9 Using the A0505 Remote Control The buttons above the iBus label on the A0505 remote control will mimic the functions on the iPod wheel. H A N N E L I S I O N POWER MODEL A0505 The volume, mute, power, and source buttons on the A0505 are designed to control Channel Vision’s whole-house audio systems such as ZONE...
- Page 10 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade CAT5 2. Rotate the tool only once. Multiple turns could damage the inner wires.
- Page 11 Make sure you are using the correct remote control. The AB-315 will only respond to IR signals from the Apple Remote produced by Apple Computer or the A0505 produced by Channel Vision. Other 3rd party remote controls are not supported.
- Page 12 Channel Vision Technology, your dealer or any factory-authorized service center. Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment applications. Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
