Summary of Contents for Channel Vision A0318

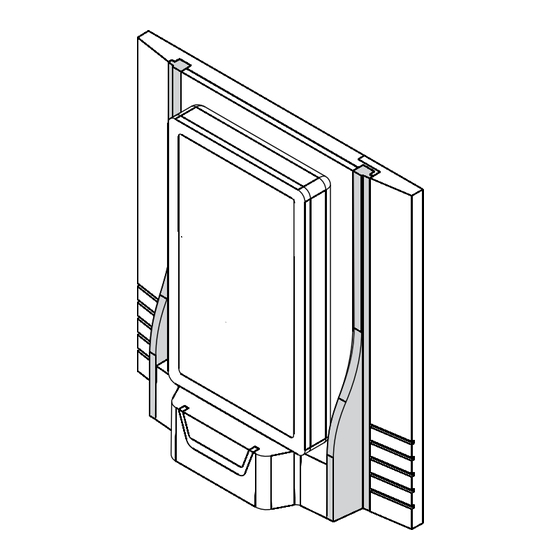

- Page 1 A0318 ® Micro-USB Bluetooth Wall-Dock for CAT5 Audio Systems • Intelligent Entertainment • Infrastructure • Security Solutions...
- Page 2 The A0318 is an on-wall Bluetooth Micro-USB docking station for CAT5 audio systems. The non-skid pad helps to hold the music player in place. The A0318 adds elegant and contemporary styling to make it the perfect choice for anyone who wants to enjoy their music without defacing the wall.
-
Page 3: Other Required Components
Snap trim to front cover into place Other Required Components The A0318 is not a standalone device. It must be installed as part of an audio system which requires the following components: CAT5 Audio Hub or CAT5 Audio Matrix: In-Room... -
Page 4: System Wiring Diagram
System Wiring Diagram Using the A0318 as a local source input module P-2014 Tape Monitor or Room 2 output Sat radio DVD player CD player Receiver A0318 (Optional) IR emitters (Rear) Input A0125 HANNEL ISION Channel Vision Line Out Output... - Page 5 (See A0125 manual for connection details) priority. A0318 can be used as primary system inputs feeding the main hub or as local input modules in each room to override the primary audio source. Local input modules should be installed in the CAT5 line between the P- 2014 and the A0125.
- Page 6 Installing the Wall Dock Installation Steps 1. Connect all wiring. 2. Attach main chassis to j-box using the provided four 6-32 screws. 3. Feed the dock connector circuit board through the opening in the front cover. 4. Hang the front cover on the main chassis from the two top tabs.
- Page 7 (3-gang Installation) In some installations it may be desirable to mount a single gang control keypad next to the A0318. To accomplish this, the single gang trim plate can be installed next to the A0318 in a 3-gang junction box.: Installation Steps: 1.
-
Page 8: Top View
Docking Carefully place the device onto the dock. Stripping and Connecting CAT-5 Wire CAT-5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT-5 between the blade and the first notch of the J-110 tool. 2. - Page 9 Using the A0318 with the A0350 & A0127 The A0350 is compatible with the A0318. Audio from the iPod dock is transmitted via CAT5 into the A0350 while power is supplied from the A0350 to the iPod dock.The power supply for the A0350 can be connected directly to the front of the A0350 or via a pair of 16AWG wires to the power screw terminals on the side.
- Page 10 2. Observe wiring distance specifications. The maximum recommended wire length between the wall dock and CAT5 audio hub is 250 feet. Although the A0318 may work at greater distances, extreme distances are not recommended because erratic performance may result due to the power loss caused by the CAT5 wire.
-
Page 11: Bluetooth Functionality
Bluetooth Functionality Pairing: A. Turn Bluetooth on in the pairing device, and scan for Bluetooth devices. B. To pair with the dock, click on “Android Dock-XXXX” (where XXXX is the last 4 digits of the MAC address) in the Bluetooth device scan list. C. - Page 12 This warranty does not cover damages in shipment, failures caused by other products not supplied by Channel Vision Technology, acts of God, or failures due to accident, misuse, abuse, or alteration of the equipment. This warranty is...
