Summary of Contents for Channel Vision AB-318

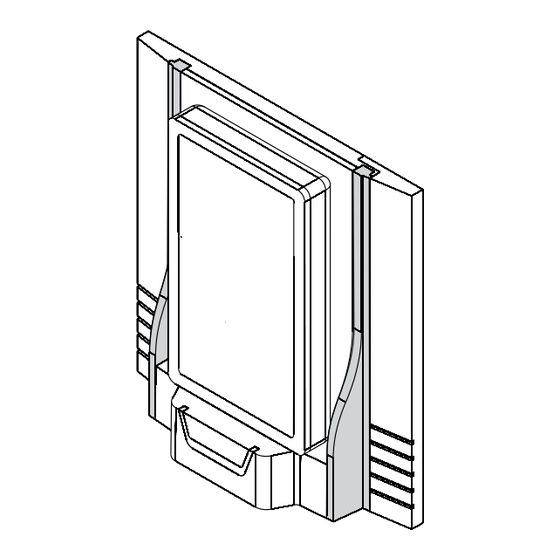

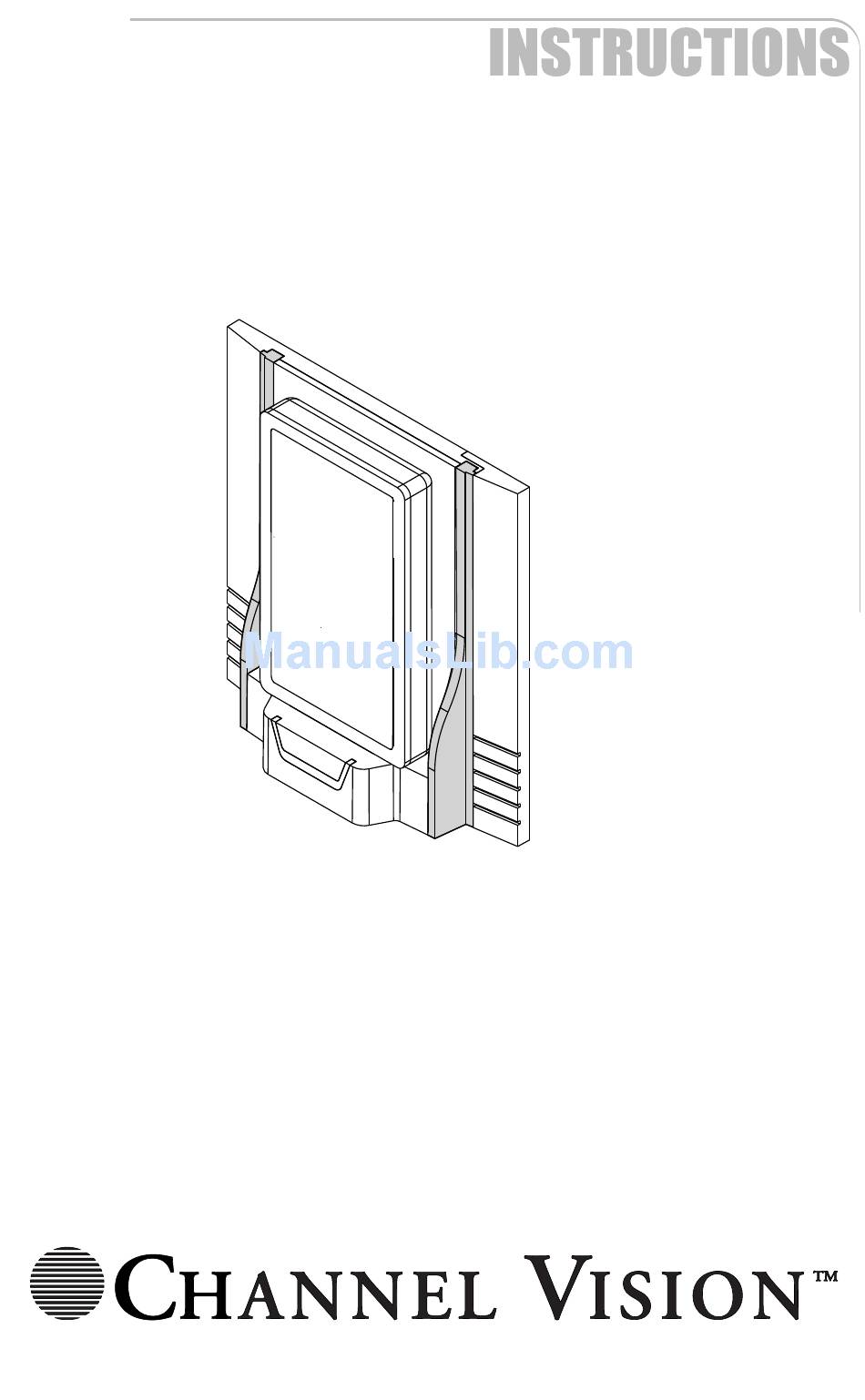

- Page 1 AB-318 ® ® Micro-USB Bluetooth Wall-Dock for A-Bus Audio Systems • Intelligent Entertainment • Infrastructure • Security Solutions...
- Page 2 CAT5 audio systems. The non-skid pad helps to hold the music player in place. The AB-318 adds elegant and contemporary styling to make it the perfect choice for anyone who wants to enjoy their music without defacing the wall.
- Page 3 Installing the Trim Plate Accessory Install Output wall plate in j-box Install Trim plate chassis over output wall plate Snap front cover over chassis Snap side flange on Snap trim to front cover into place...
-
Page 4: System Wiring Diagram
System Wiring Diagram Using the AB-318 as a local source input module P-1014 Tape Monitor or Room 2 output Sat radio DVD player CD player Receiver AB-318 (Optional) IR emitters (Rear) H A N N E L I S I O N... - Page 5 System Wiring Diagram Using the AB-318 as a main source input module AB-318 H A N N E L I S I O N H A N N E L I S I O N (Rear) Source Source H A N N E L...
- Page 6 Installing the Wall Dock Installation Steps 1. Connect all wiring. 2. Attach main chassis to j-box using the provided four 6-32 screws. 3. Feed the dock connector circuit board through the opening in the front cover. 4. Hang the front cover on the main chassis from the two top tabs.
- Page 7 (3-gang Installation) In some installations it may be desirable to mount a single gang control keypad next to the AB-318. To accomplish this, the single gang trim plate can be installed next to the AB-318 in a 3-gang junction box.
-
Page 8: Bluetooth Functionality
Bluetooth Functionality Pairing: A. Turn Bluetooth on in the pairing device, and scan for Bluetooth devices. B. To pair with the dock, click on “Android Dock-XXXX” (where XXXX is the last 4 digits of the MAC address) in the Bluetooth device scan list. C. - Page 9 Docking the Micro-USB device Carefully place the device onto the dock.
-
Page 10: Top View
Stripping and Connecting CAT-5 Wire CAT-5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT-5 between the blade and the first notch of the J-110 tool. 2. Rotate the tool only once. Multiple turns Blade Cat5 will cause you to cut into the inner wires. - Page 11 2. Observe wiring distance specifications. The maximum recommended wire length between the wall dock and CAT5 audio hub is 250 feet. Although the AB-318 may work at greater distances, extreme distances are not recommended because erratic performance may result due to the power loss caused by the CAT5 wire.
- Page 12 Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
