Summary of Contents for Channel Vision A0315
- Page 1 A0315 iBus Wall-Dock for CAT5 Audio Systems...

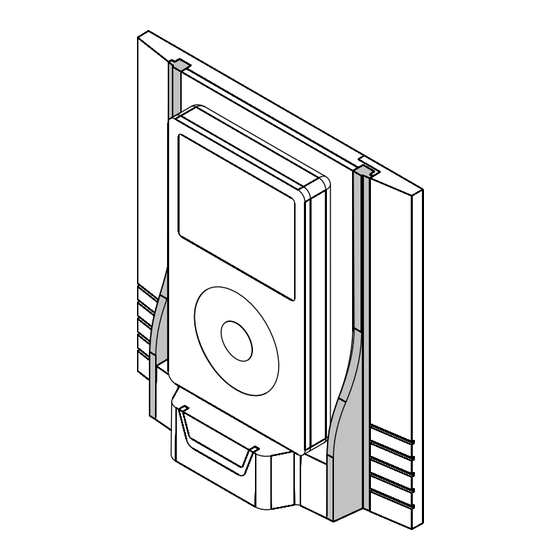

- Page 2 ® The A0315 is an on-wall iPod docking station for CAT5 audio systems. The dock connector slides in and out to adjust for any iPod and the non- skid pad helps to hold the music player in place. With all the popular...
-
Page 3: Other Required Components
Source 3 IR Source 4 IR Common IR IR Data Source 1 Source 2 Source 3 Source 4 Power Wiring Channel Vision P-2014 P-2044 Interface: Line Out (power supply included) A0302 (power supply included) Amp-Link Compatibility M a d e F o r :... - Page 4 System Wiring Diagram Using the A0315 as a local source input module P-2014 Tape Monitor or Room 2 output Sat radio DVD player CD player Receiver A0315 (Optional) IR emitters (Rear) A0125 HANNE L ISI ON Channel Vision Line Out...
-
Page 5: System Wiring Diagram
(See A0125 manual for connection details) priority. A0301 and A0315 can be used as primary system inputs feeding the main hub or as local input modules in each room to override the primary audio source. The A0301 is a generic input module which provides a standard ®... - Page 6 Installing the Wall Dock Installation Steps 1. Connect all wiring. 2. Attach main chassis to j-box using the provided four 6-32 screws. 3. Feed the dock connector circuit board through the opening in the front cover. 4. Hang the front cover on the main chassis from the two top tabs.
- Page 7 (3-gang Installation) In some installations it may be desirable to mount a single gang control keypad next to the A0315. To accomplish this, the single gang trim plate can be installed next to the A0315 in a 3-gang junction box.
-
Page 8: Docking The Ipod
A4603 and P-2044. MUTE Please note that this remote will only function when your iPod is docked in the A0315 wall dock. It must be pointed at an IR receiver that is part of an amplified keypad that is wired “downstream”. - Page 9 The A0350 can accept the signal from one Channel Vision’s CAT5 Audio Devices, such as the A0315. Audio from the iPod dock is transmitted via CAT5 into the A0350 while power is supplied from the A0350 to the iPod dock.
- Page 10 Stripping and Connecting CAT5 Wire CAT5 cable should be stripped with a proper stripping tool, such as Channel Vision’s J-110 tool. 1. Place the CAT5 between the blade and the first notch of the J-110 tool. Blade Cat5 2. Rotate the tool only once. Multiple turns will cause you to cut into the inner wires.
- Page 11 Especially when driving dual-voice-coil speakers. 3) Trouble with IR control? a. Make sure you are using the correct remote control. The A0315 will only respond to IR signals from the Apple Remote produced by Apple Computer or the A0505 produced by Channel Vision. Other 3rd party remote controls are not supported.
- Page 12 Channel Vision Technology, your dealer or any factory-authorized service center. Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment applications. Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
